The all new HS2 Rotor is a mountain bike specific rotor designed to improve brake performance while reducing noise and increasing heat dissipation. Featuring a new brake track pattern for increased pad traction and recessed spokes with thermal dissipating paint, the HS2 is a more powerful, quieter rotor with best-in-class heat management.
SPECIFICATIONS
| DIAM (ROTOR) | 160mm, 180mm, 200mm, 220mm |
|---|---|
| ROTOR THICKNESS | 2.0mm |
| COLOR (RT) | n/a |
| BOLT MATERIAL (RT) | n/a, Steel |
| HUB INTERFACE | 6-bolt, Center Lock |
| ROTOR TYPE | HS2, HS2 Centerlock |
| REC LOCKRING | n/a, SRAM Lockring included |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Steel/Organic Grey | Quiet, Powerful, Stronger when dry |
| Aluminum/Organic | Quiet, Lightweight, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |
DESCRIPTION

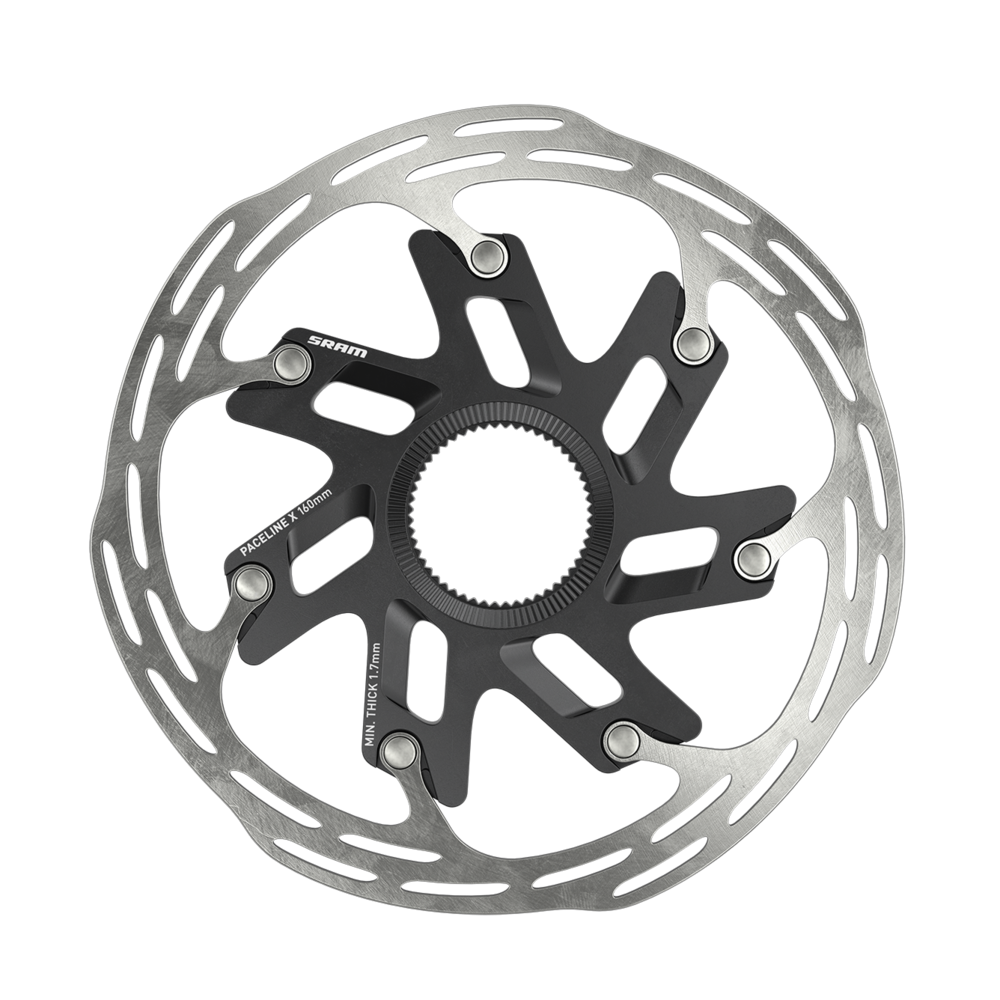

We took our smoothest and quietest brake track and gave it the lightest aluminum carrier we’ve made yet. Push your limits at speed knowing the Paceline X Rotor will be there to stop you.
FEATURES
- Designed for road use
- Paceline brake track offers quiet brake operation
- Our lightest aluminum carrier keeps weight low
- Centerlock only
- Available in 160 and 140 mm
SPECIFICATIONS
| HUB INTERFACE | Center Lock |
|---|---|
| BOLT MATERIAL (RT) | n/a |
| DIAM (ROTOR) | 140mm, 160mm |
| ROTOR TYPE | Paceline 2-Piece |
| COLOR (RT) | Black |
| REC LOCKRING | SRAM Lockring included |
| WEIGHT (G) | 280 |
| WEIGHT BASED ON | 2 160mm Centerlock rotors and SRAM lockrings |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Aluminum/Organic | Quiet, Lightweight, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |
DESCRIPTION

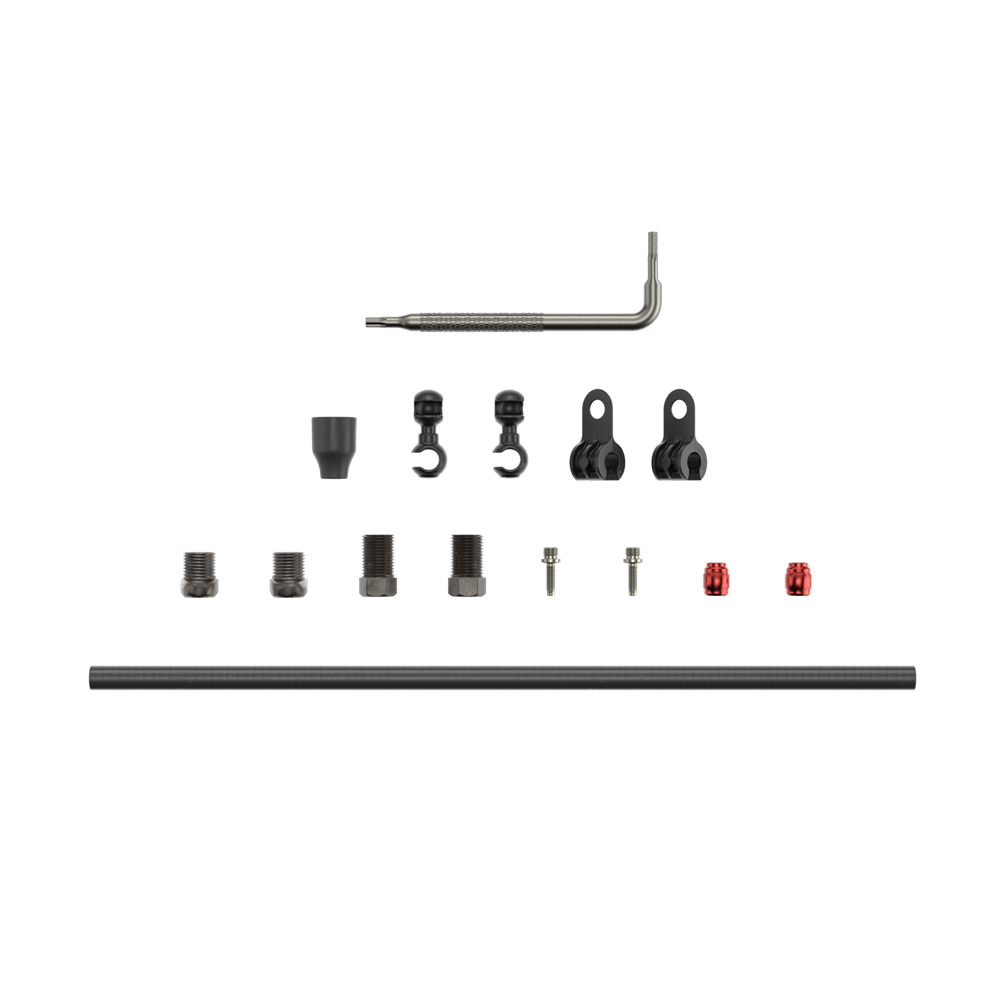

The Double Compression Hydraulic Brake Hose Kit fits both SRAM road and mountain bike brakes that feature compression fittings at both lever and caliper. The hydraulic line kit is compatible with both DOT and Mineral Oil brake fluid brakes and includes all replacement parts.
SPECIFICATIONS
- Part Number: 00.5318.036.000
- Compatible Hydraulic Brake Fluids: DOT 4 or 5.1 for DOT series, Mineral Oil for DB8
- Applicable Brake Models: AVIDCode/R,Elixir1/3,Juicy3,DB 1/3/8,LevelULT/TLM(B1),Level/T,Guide RE,G2 RE/RS/R, S900 2P(Red,Force,Rival-2PeTapAXS), Level 2P Stealth Ultimate & Silver, Code Stealth Bronze (2023+) and APEX D1 (2023+)
- Parts included in the kit: Specific brake line (2-metres long) and necessary seals, 2x short (road) compression nuts, 2x long (MTB) compression nuts, 2x SRAM Barb, 2x SRAM Olive, Caliper compression nut boot, 2x external cable holders, 2x stem mounted cable holders, T8 Torx key for barb installation.
- Can't locate a Double Compression kit? Fear not, any SRAM Hydraulic Brake Hose kit can be substituted once the respective Banjos have been removed
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Steel/Organic Grey | Quiet, Powerful, Stronger when dry |
| Aluminum/Organic | Quiet, Lightweight, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |
DESCRIPTION

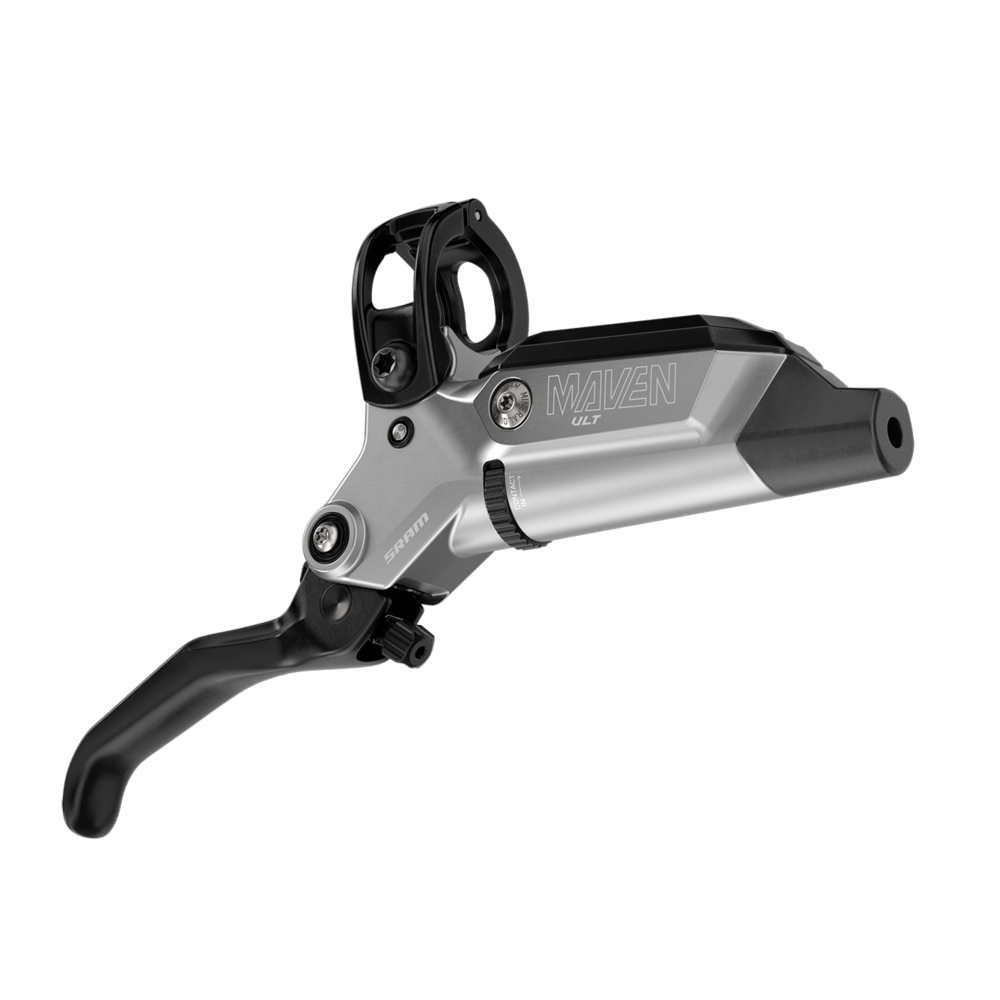

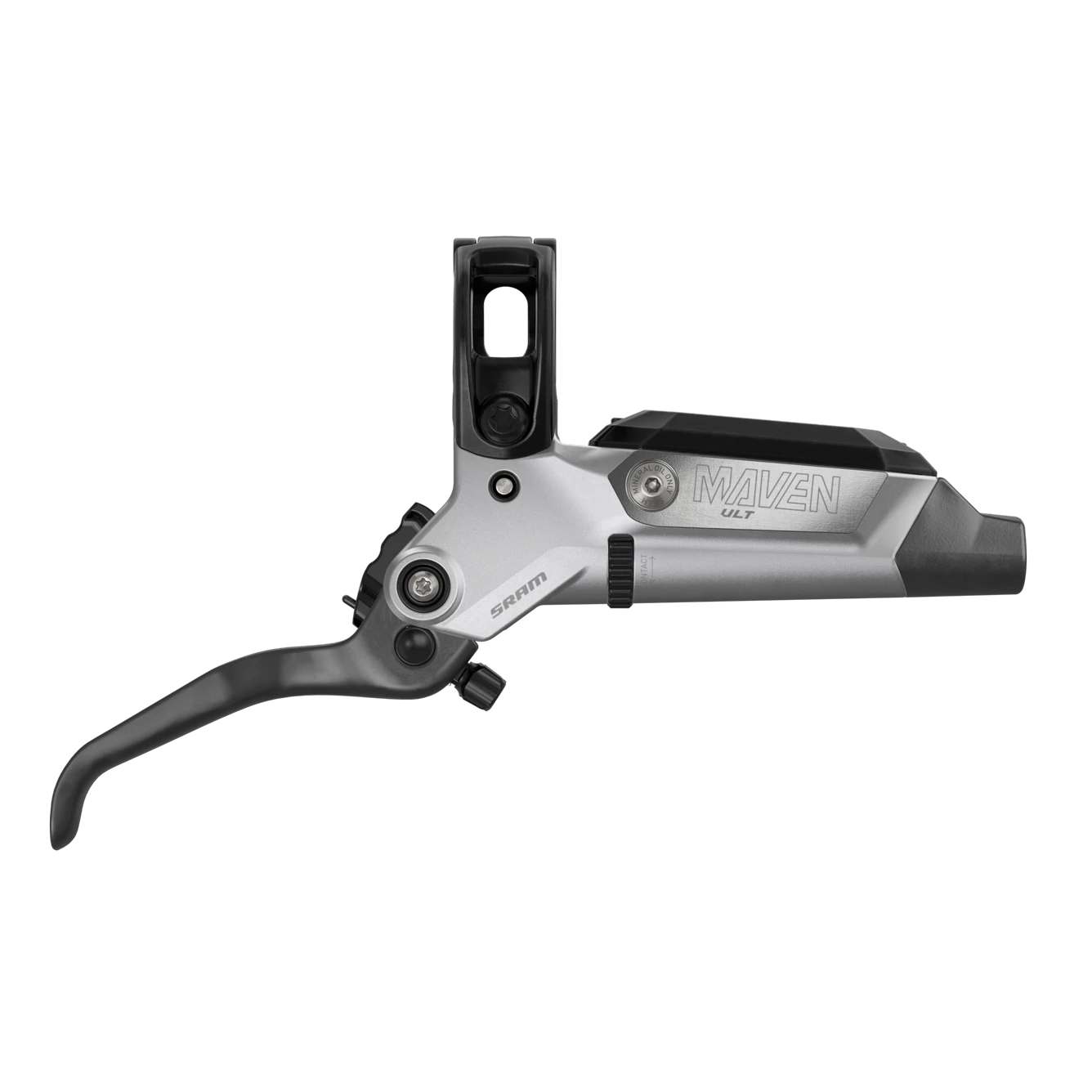

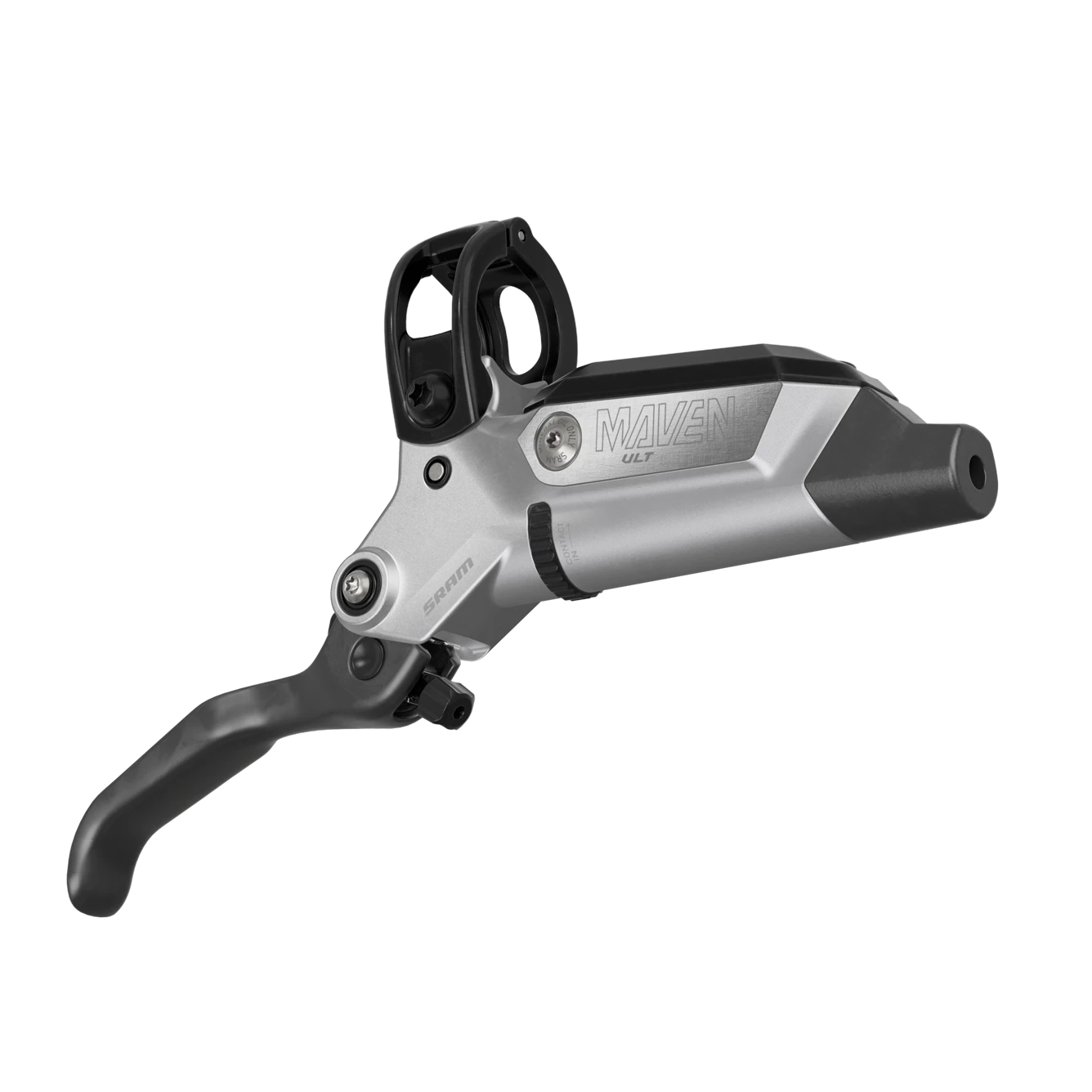

Modern mountain bikes have redefined what riders are capable of, pushing the requirements for heavy-duty power further than ever before. Maven Ultimate is our answer to that evolution, with monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. Maven is the expert, but Maven Ultimate is the pinnacle.
FEATURES
- 18 and 19.5-millimeter pistons for best-in-class power.
- Swinglink for signature SRAM lever feel.
- Stiff 4-piston caliper with best heat management and easier bolt access.
- Organic pads come standard for the best modulation and the quietest ride.
- Stealth lever architecture for a sleeker, more modern ride.
- Mineral Oil for low maintenance and performance.
- Designed for use with Maxima Mineral Brake Oil only.
- Ultimate worthy polished Lever body and Titanium hardware.
- Contact Point Adjust and tool-free Reach Adjust.
SPECIFICATIONS
Model ID: DB-MVN-ULT-A1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum |
| Contact adjust | Yes |
| Color (DB) | Teal Splatter Anodized |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed metal sintered, Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Reach adjust | Tool-free |
| Hydraulic fluid | SRAM Mineral Oil |
| Lever pivot | Bearing |
| Weight (g) | 362 |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
OVERVIEW
Modern mountain bikes have redefined what riders are capable of, pushing the requirements for heavy-duty power further than ever before. Maven Ultimate is our answer to that evolution, with monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. Maven is the expert, but Maven Ultimate is the pinnacle.
FEATURES
- 18 and 19.5-millimeter pistons for best-in-class power.
- Swinglink for signature SRAM lever feel.
- Stiff 4-piston caliper with best heat management and easier bolt access.
- Organic pads come standard for the best modulation and the quietest ride.
- Stealth lever architecture for a sleeker, more modern ride.
- Mineral Oil for low maintenance and performance.
- Designed for use with Maxima Mineral Brake Oil only.
- Ultimate worthy polished Lever body and Titanium hardware.
- Contact Point Adjust and tool-free Reach Adjust.
SPECIFICATIONS
Model ID: DB-MVN-ULT-A1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum |
| Color (DB) | Clear Anodized, Red |
| Rec MMX clamp (not included) | MMX clamp, black, stainless |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Hose length (mm) | 2000mm, 950mm |
| Rotor (AM only) | n/a |
| Pistons | 4 |
| Piston material | Phenolic Plastic |
| Rotor type recommended | 1-piece HS2 |
| Clamp Included (DB) | Yes – MMX Clamp |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
| Weight (g) | 362 |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |
Compatible with SRAM Maven brakes. Model Code: DB-MVN-BRZ-A1, DB-MVN-SLV-A1, DB-MVN-ULT-A1

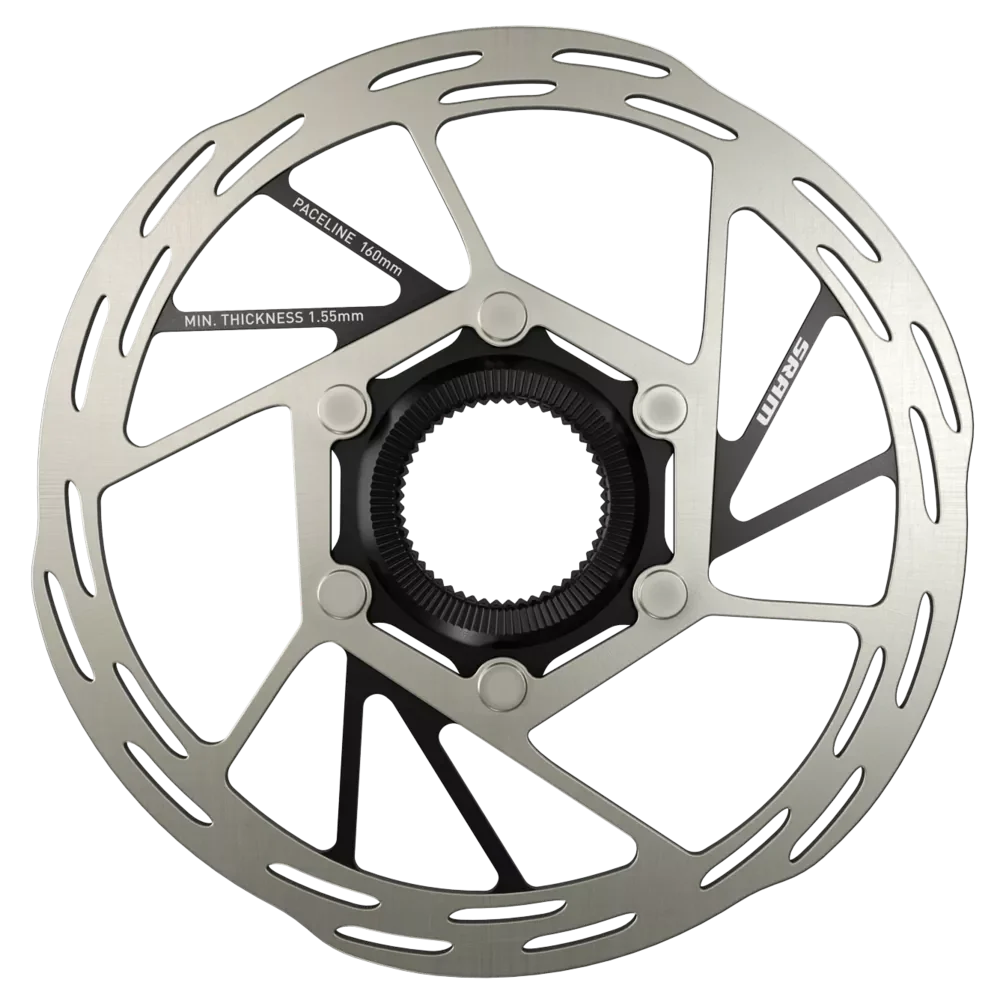

Paceline disc brake rotors incorporate the elegant design of our AXS road groupsets and feature a brake track vent design for smooth, quiet braking performance. An aluminum carrier sheds 20 grams compared to the previous generation.
FEATURES
- Designed for road use
- Paceline brake track offers quiet brake operation
SPECIFICATIONS
| Hub interface | Center Lock |
|---|---|
| Bolt material (RT) | n/a |
| Diam (Rotor) | 140mm, 160mm |
| Rotor Type | Paceline Centerlock |
| Color (RT) | Black |
| Rec Lockring | Lockring sold separately, SRAM Lockring included |

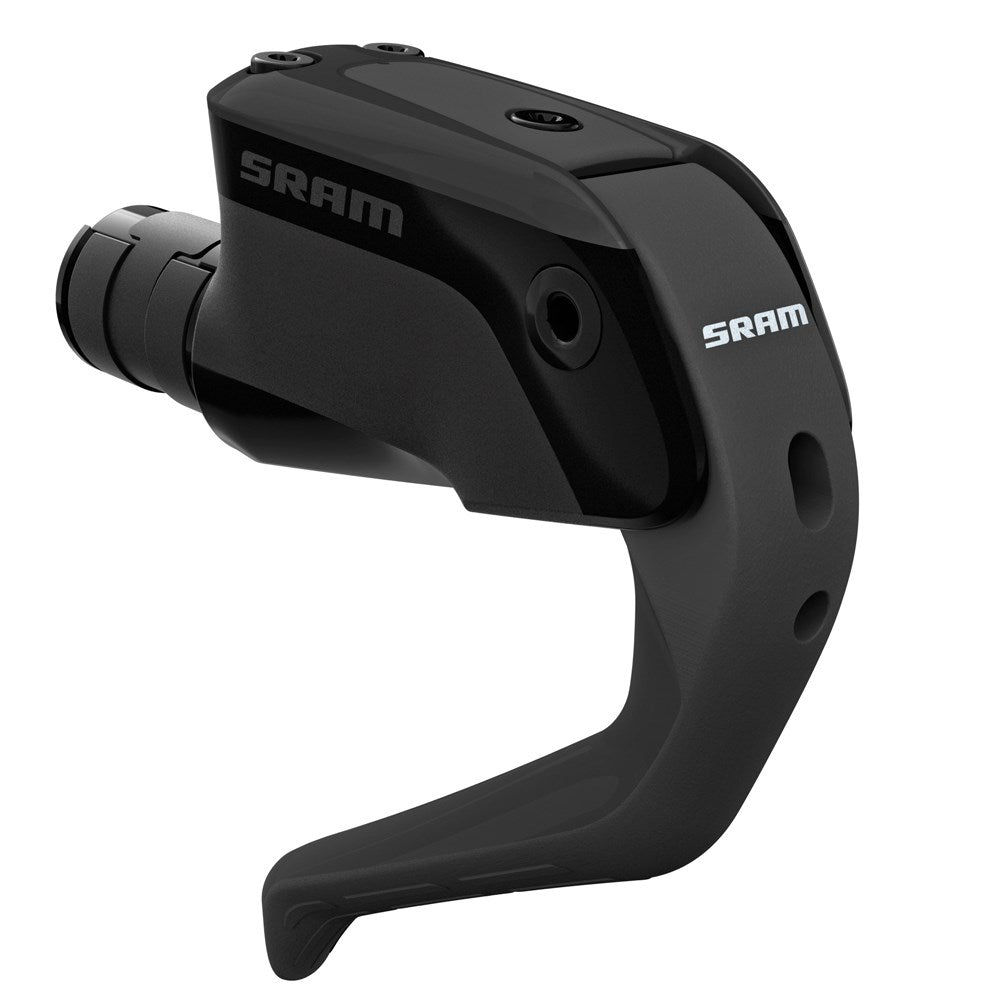

FEATURES
- Optimized power and modulation for triathlon and time trial
- HydroT brake platform offers superior control, feel, and heat management
- Textured carbon brake lever for better finger grip
- Reach Adjust allows for custom fit
- Stealth-a-majig™ connector makes initial setup fast and convenient
- Bleeding Edge™ technology for quick, hassle-free bleeds
- Flat mount only
SPECIFICATIONS
| APPLICATION (DB) | Road |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Black Anodized |
| BLADE MATERIAL | Carbon LFRT |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Flat Mount 20mm offset, Flat Mount no offset |
| REACH ADJUST | Tooled |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bushing |
SPECIFICATIONS
| DIAM (ROTOR) | 140mm, 160mm |
|---|---|
| COLOR (RT) | Black |
| BOLT MATERIAL (RT) | n/a, Steel |
| HUB INTERFACE | 6-bolt, Center Lock |
| ROTOR TYPE | Paceline, Paceline Centerlock |
| REC LOCKRING | Lockring sold separately, n/a |
DESCRIPTION

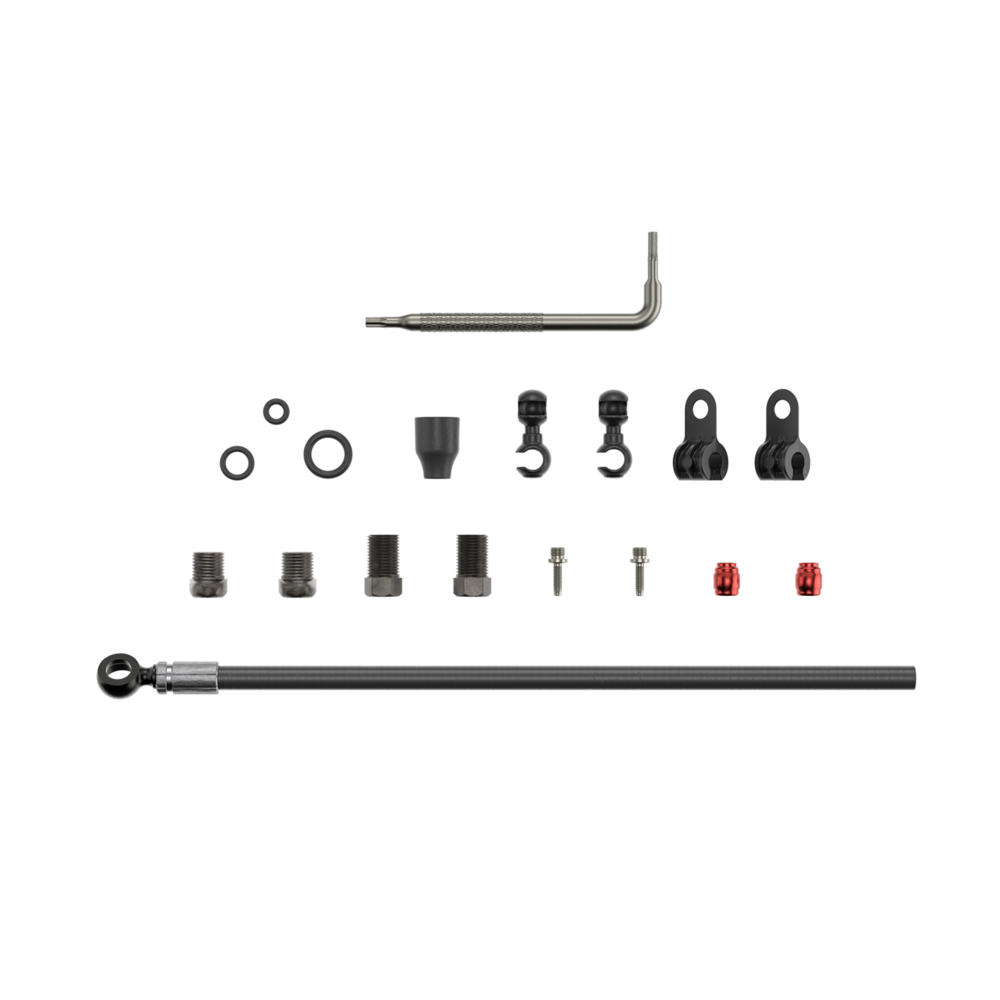

The Black Banjo Hydraulic Brake Hose Kit fits both SRAM road and mountain bike brakes that feature a black banjo fitting at the caliper. The hydraulic line kit includes all replacement parts.
SPECIFICATIONS
- Part number: 00.5318.039.000
- Compatible Hydraulic Brake Fluids: DOT 4 or 5.1
- Applicable Brakes: Level ULT (A1), Level TLM (A1), CODE R/RSC (B1), Red eTap HRD, S900 Monoblock and Code Stealth Ultimate, Silver and Bronze.
- Parts included in the kit: Specific brake line (2-metres long) and necessary seals, 2x short (road) compression nuts, 2x long (MTB) compression nuts, 2x SRAM Barb, 2x SRAM Olive, Caliper compression nut boot, 2x external cable holders, 2x stem mounted cable holders, T8 Torx key for barb installation.
- Can't locate a Double Compression kit? Fear not, any SRAM Hydraulic Brake Hose kit can be substituted once the respective Banjos have been removed

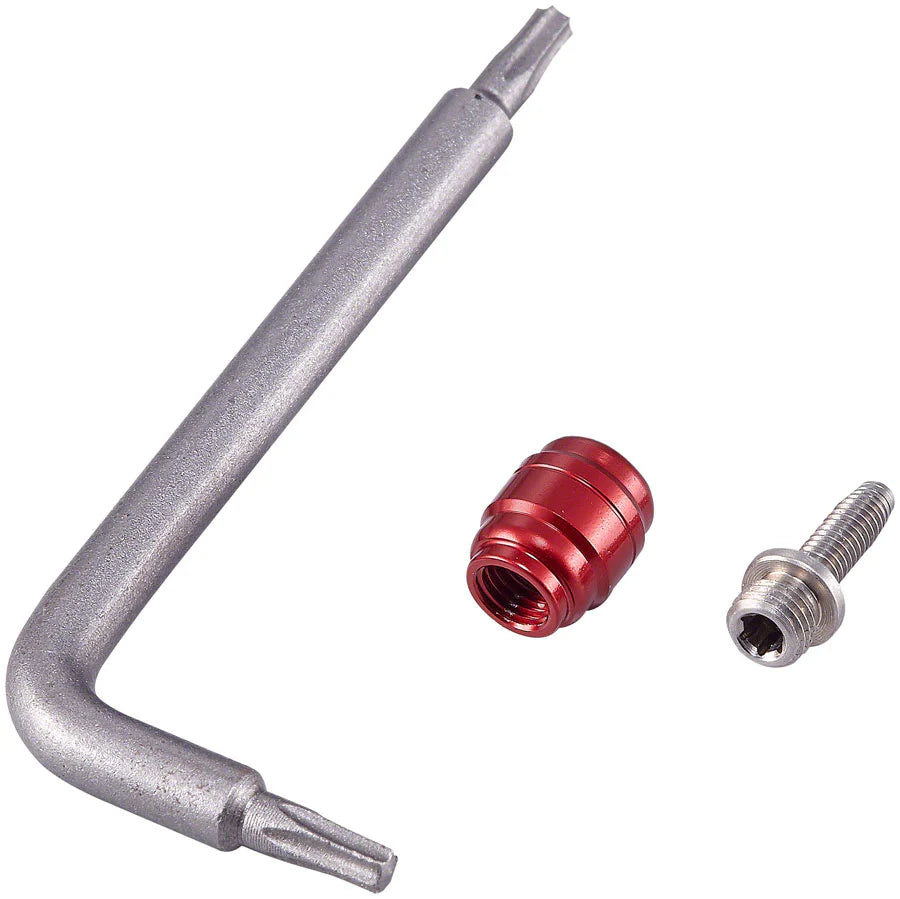

50 PCS OF THREADED HOSE BARBS & 50 PCS OF RED COMP FITTINGS
DESCRIPTION

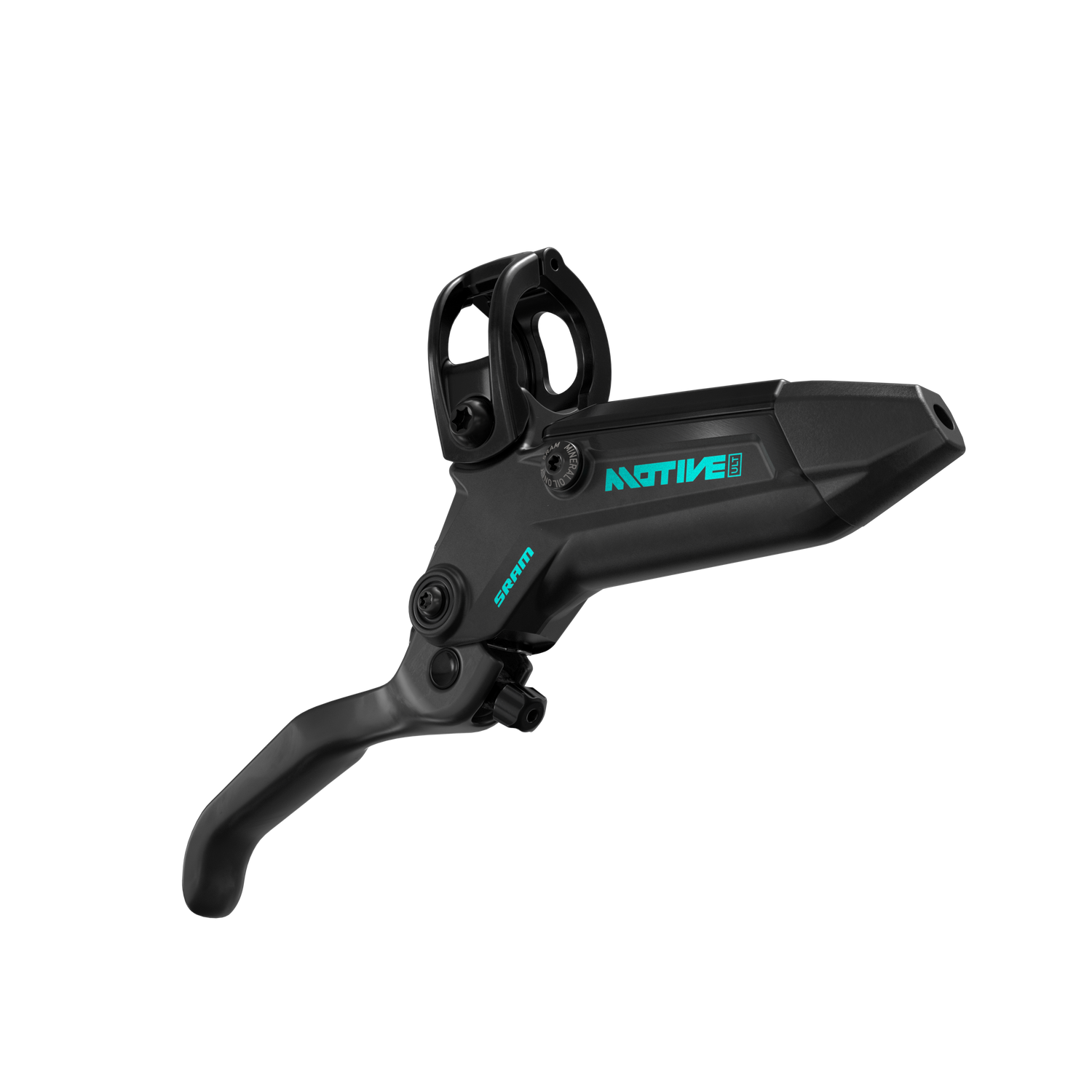

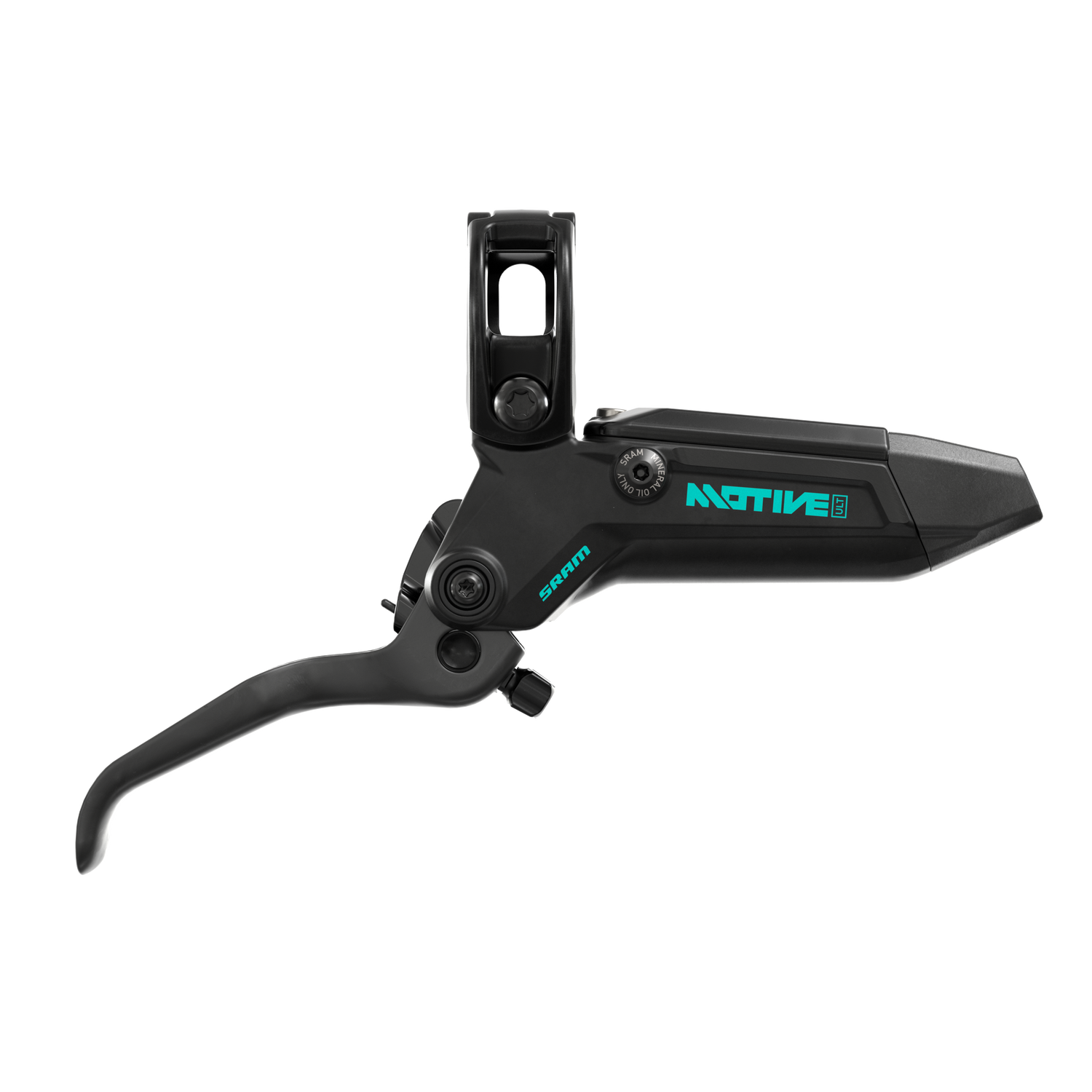

Born from the legacy of two of the winningest brakes of all-time, SRAM Motive Ultimate matches the capabilities of modern XC-race and trail bikes. Modern stealth aesthetics pair with wireless superbikes, while titanium hardware, a signature carbon lever, and a slick finish put Ultimate on top. A sculpted 4-piston caliper delivers tunable heavy-duty power for traction and control. Opening the aperture on what’s possible, giving you the boundless power of more confidence, and in the process redefining what’s required from a low-weight brake. Motive. New powers to go ahead.
FEATURES
- Stealth body designed to complement AXS cockpits
- Heavy-duty power in a modern XC package, for today’s races
- Tool-free reach adjust for easy customization
- Titanium hardware and carbon lever blade with bearing pivot.
- Ultimate worthy Blasted Clear anodized finish with polished machined edges.
- Designed for use with Maxima Mineral Oil only.
- Designed for use with SRAM Mineral Oil Bleed Kit only.
- Caliper features Bleeding Edge bleed port for drip-free maintenance
SPECIFICATIONS
Model ID: DB-MOTV-ULT-A1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Carbon |
| Contact adjust | No |
| Color (DB) | Teal Splatter Anodized |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed metal sintered, Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Reach adjust | Tooled, Tool-free |
| Hydraulic fluid | SRAM Mineral Oil |
| Lever pivot | Bearing |
| Weight (g) | 265 |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Steel/Organic Grey | Quiet, Powerful, Stronger when dry |
| Aluminum/Organic | Quiet, Lightweight, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |

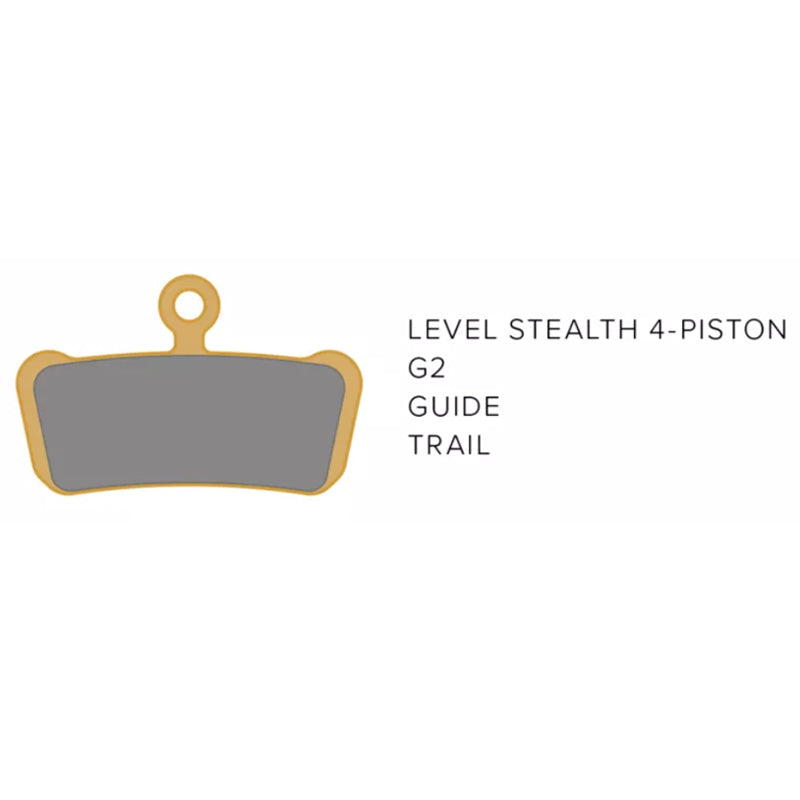

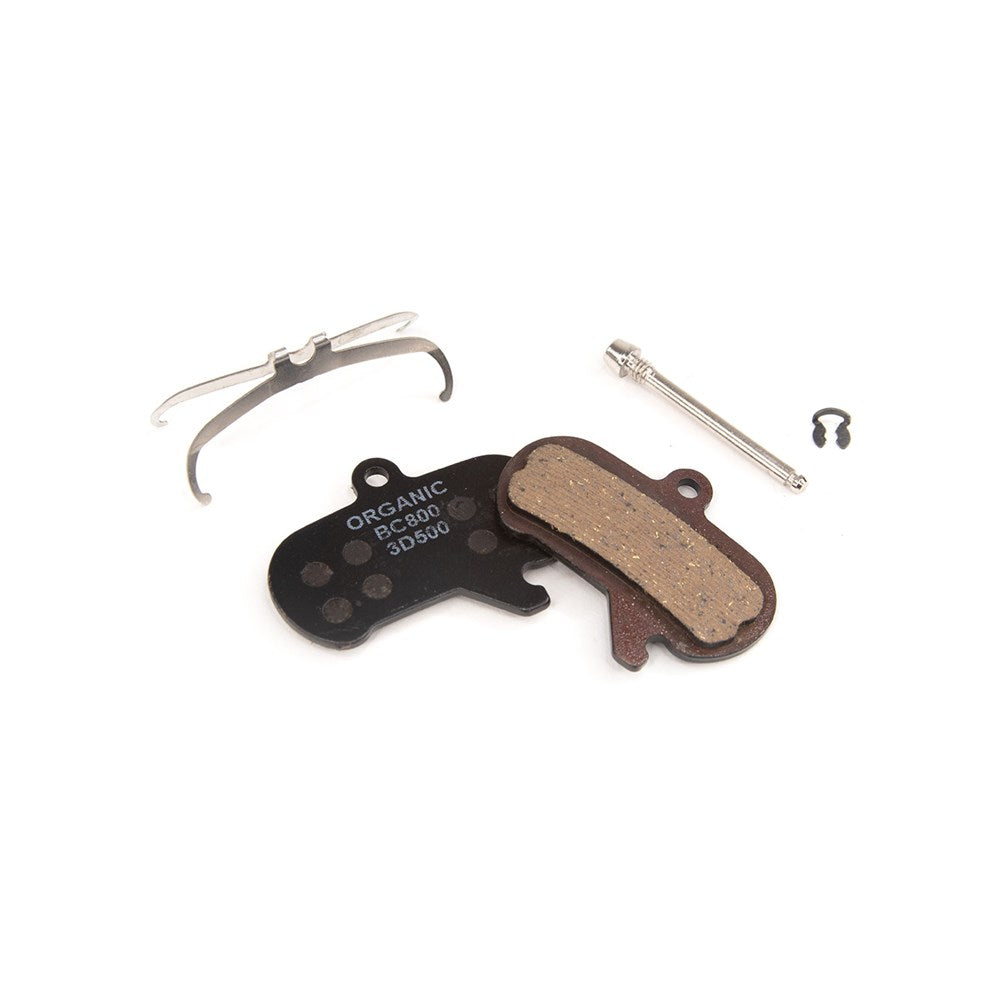

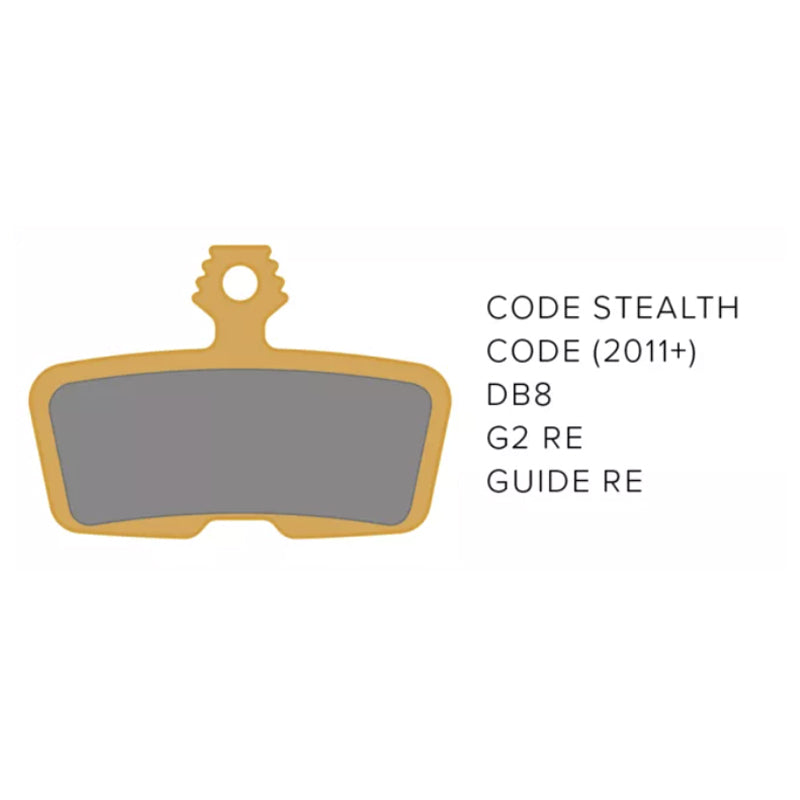

20sets Workshop Pack does not come with spreader and pin. Only brake pads.

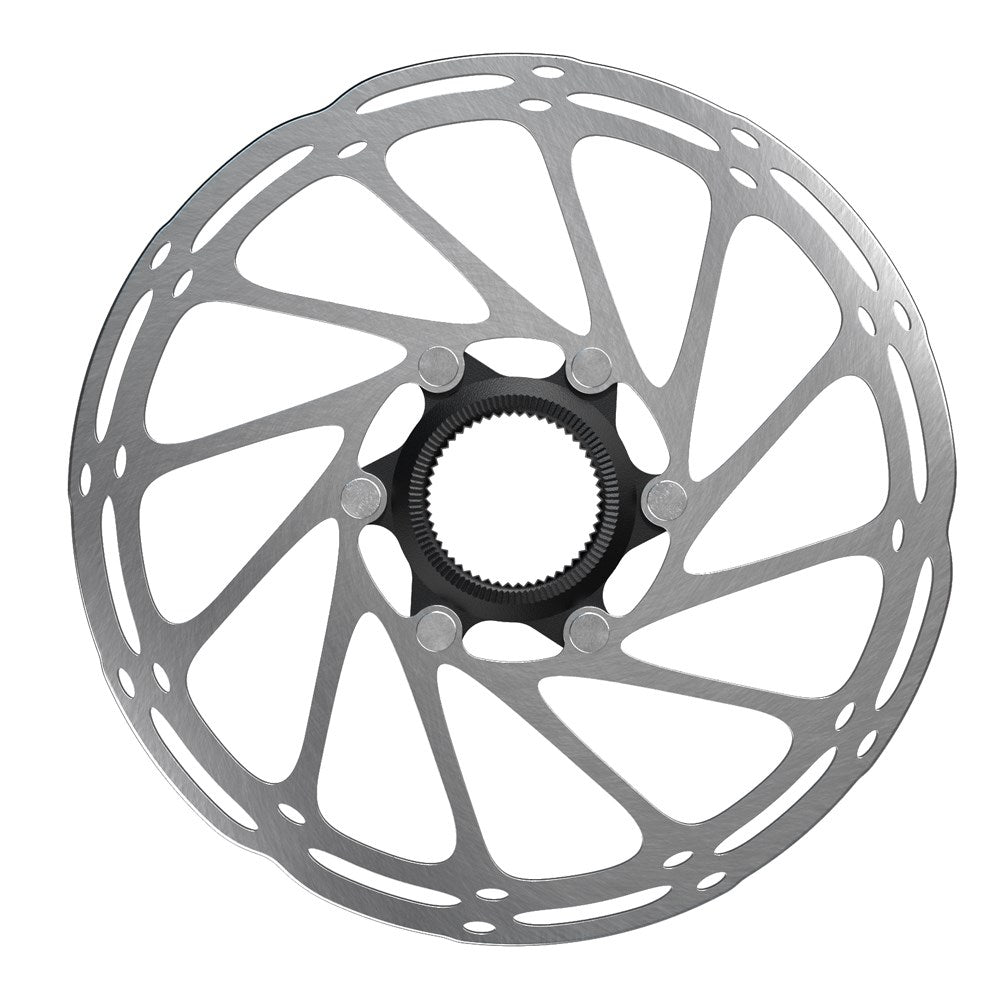

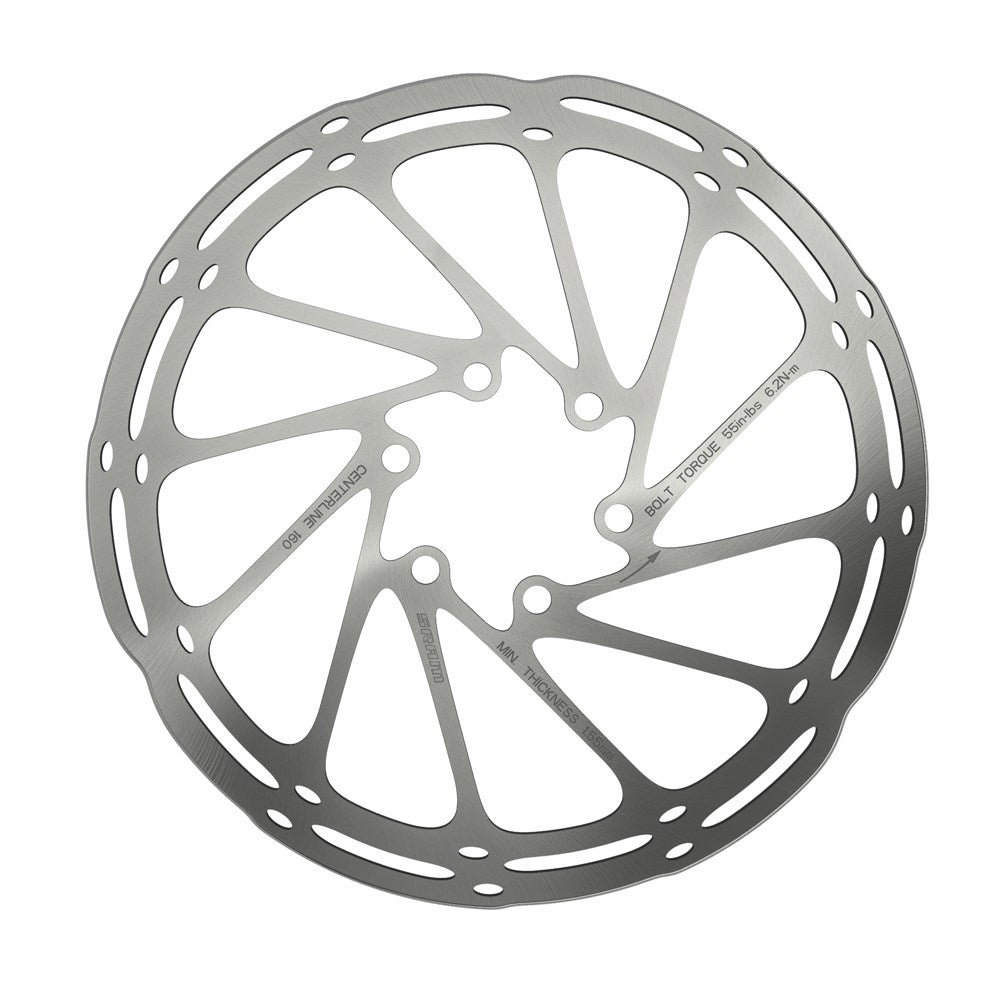

The CenterLine design provides a smooth, consistent, and quiet running braking surface. Rounded edges make for easier wheel installs and are UCI-compliant.
FEATURES
- Rounded edges are UCI-compliant and allow for easier wheel installs
- Compatible with both road and mountain bike brakes
SPECIFICATIONS
| DIAM (ROTOR) | 140mm, 160mm, 180mm, 200mm, 220mm |
|---|---|
| COLOR (RT) | Grey, n/a |
| BOLT MATERIAL (RT) | Steel |
| HUB INTERFACE | 6-bolt, Center Lock |
| ROTOR TYPE | Centerline |
| REC LOCKRING | Lockring sold separately, n/a |

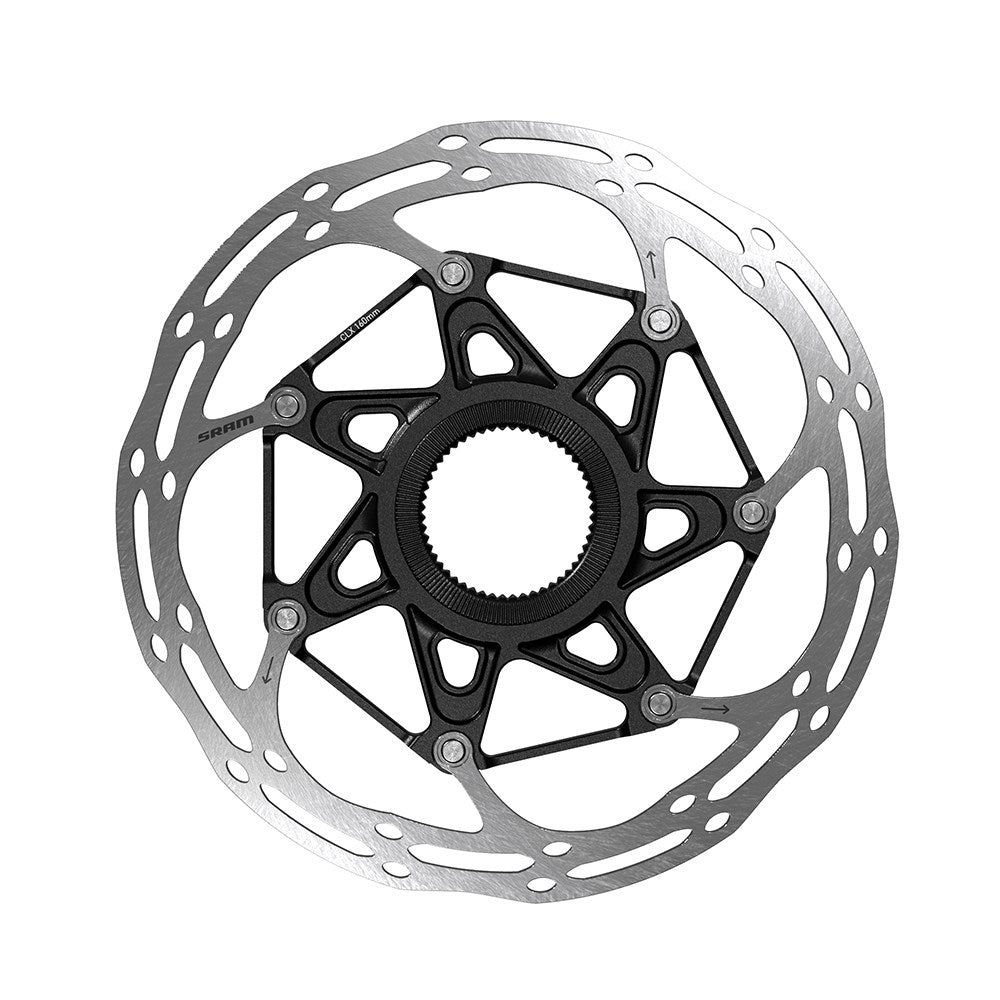

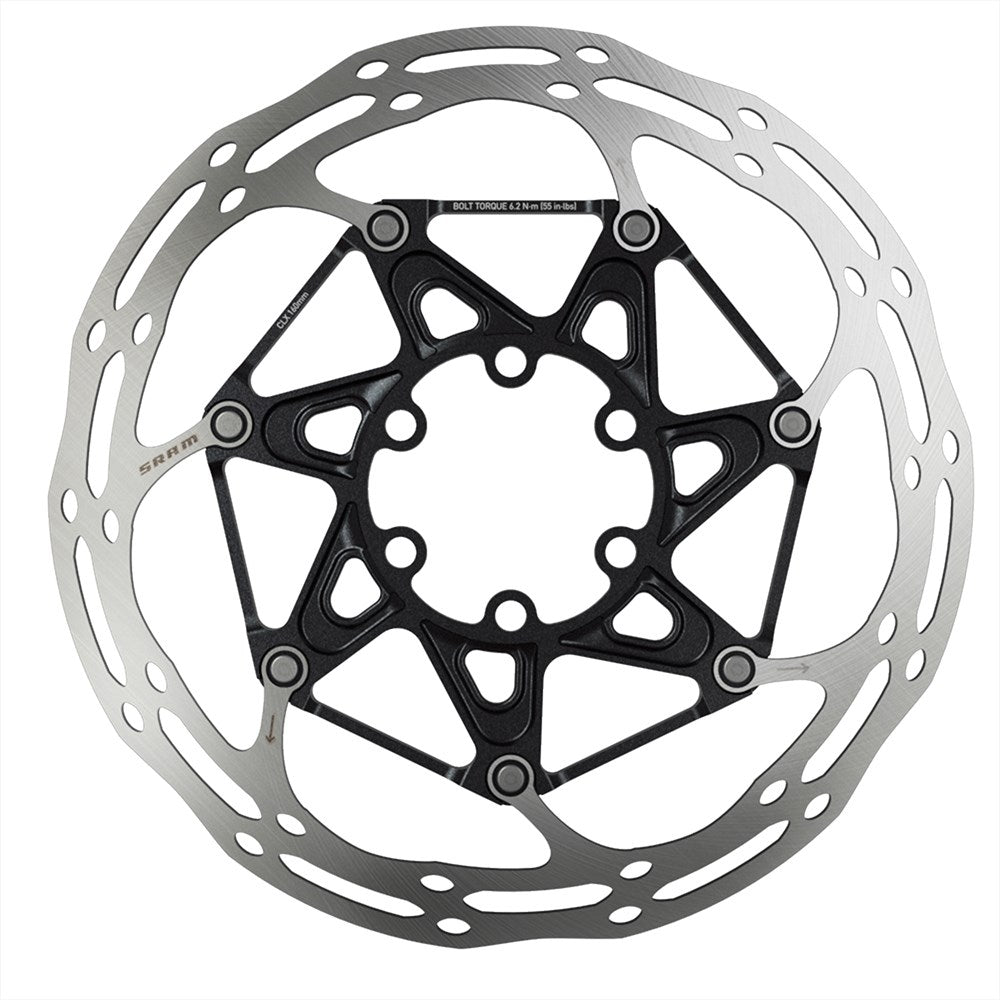

CenterLine X rotors are the lighter weight version of SRAM's quiet, smooth, and robust CenterLine rotors. The CenterLine X rotor features a two-piece design with an alloy center and steel brake track. Rounded edges make for easier wheel installs and are UCI-compliant.
FEATURES
- Lightweight, two-piece design
- Rounded edges are UCI-compliant and allow for easier wheel installs
- Compatible with both road and mountain bike brakes
SPECIFICATIONS
| DIAM (ROTOR) | 140mm, 160mm, 180mm |
|---|---|
| COLOR (RT) | n/a |
| BOLT MATERIAL (RT) | n/a, Steel, Titanium |
| HUB INTERFACE | 6-bolt, Center Lock |
| ROTOR TYPE | Centerline 2-Piece |
| REC LOCKRING | Lockring sold separately, n/a |
