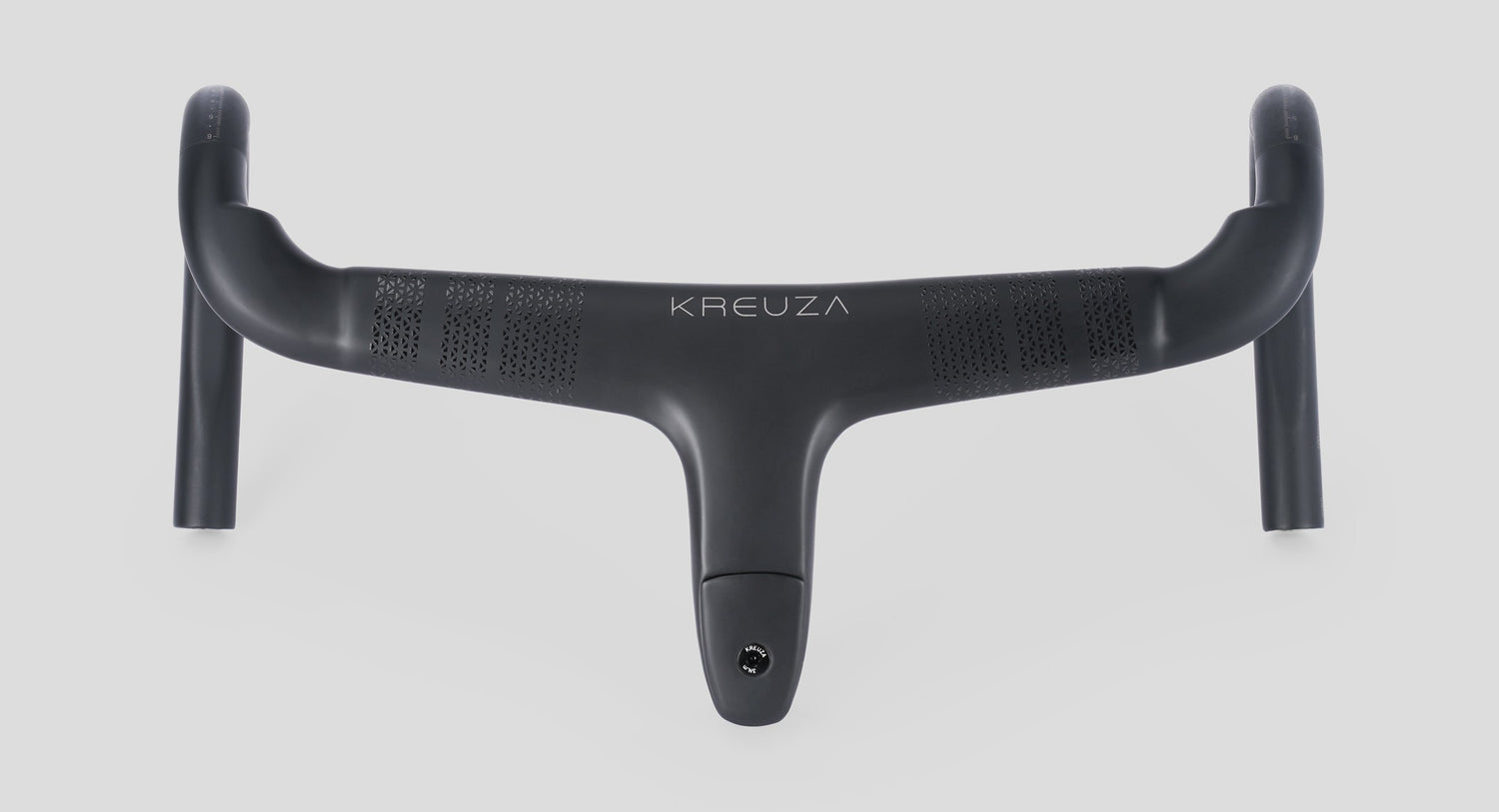

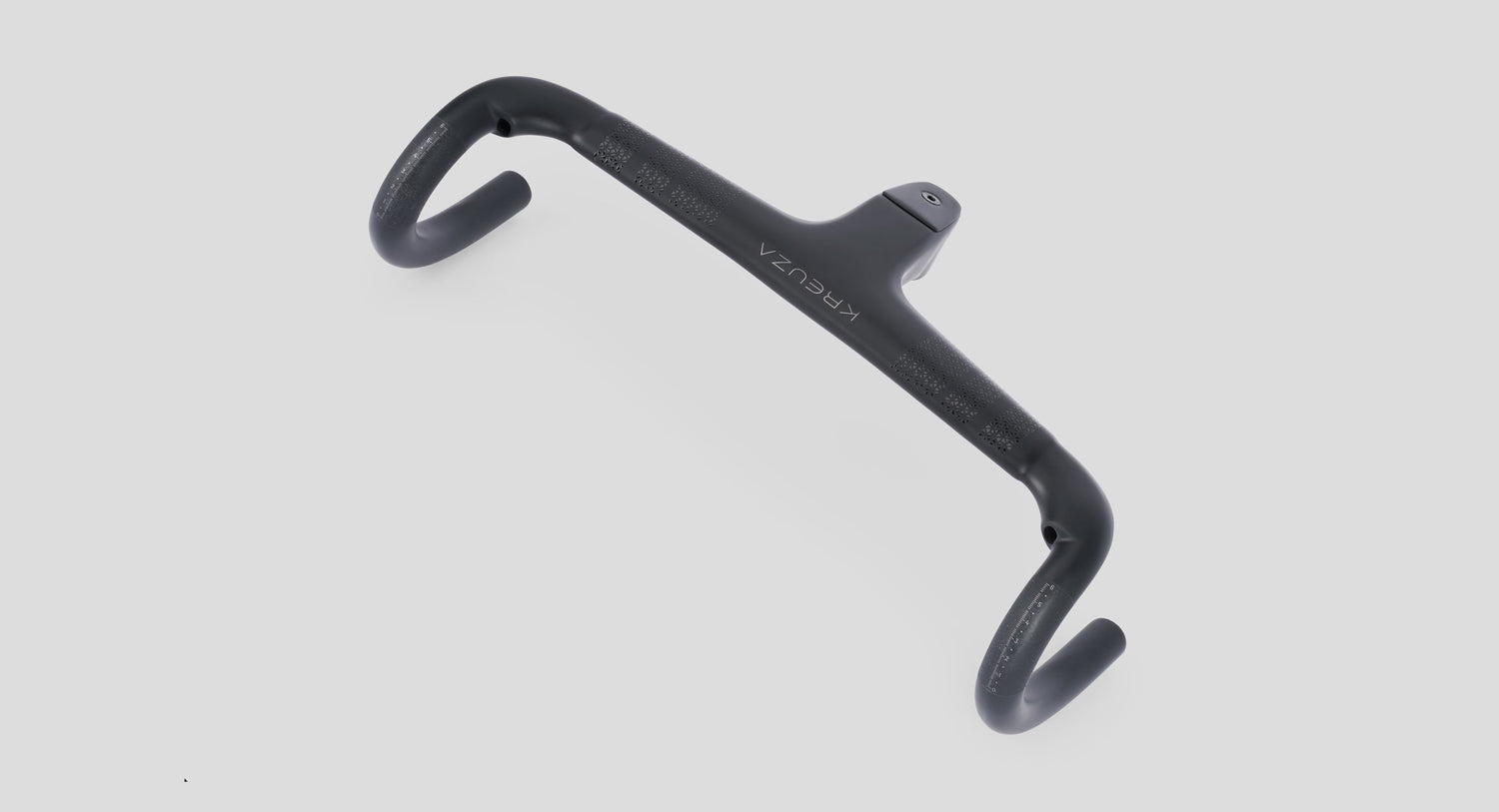

The Kreuza Apex handlebar uses T800 carbon fiber material and weighs just 305g (Painted) for the 38cm version with 110mm integrated stem. It offers 18 different combinations of widths and stem lengths. Widths range from 360mm to 400mm, while stem lengths go from 90mm to 140mm.
FEATURES
- Features an innovative NACA aerodynamic design, with the slimmest section measuring just 16mm..
- Optimized using Computational Fluid Dynamics (CFD) analysis, reducing air resistance by 4.5 watts for unparalleled performance.
- Designed with ergonomic precision, just to ensure the most comfortable riding posture and provide you with a customized riding experience.
SPECIFICATIONS
- Material: TORAYCA T800 Carbon, UniDirectional finish
- Stem Angle: -6 degrees
- Steerer Diameter: 1-1/8” (28.6mm)
- Stem Length: 80 / 90 / 100 / 110 / 120 / 130 / 140mm
- Width: (Drop to Drop) 390 / 410 / 430mm
- Width (Hood to Hood): 360 / 380 / 400mm
- Drop: 128mm
- Reach: 80mm
- Flare: 6.6°
- Forward Angle: 6°
- Stack: 35.5mm
- Weight: 305g (380mx110mm bar, painted without accessories)
- Included Accessories (Note: The transition spacer from the handlebar to frame is designed to work seamlessly with the Evolve CIMA frameset. For other frames, please drop us a message).
DESCRIPTION
The Atmos 7k aluminium riser bar series feature a 9° backsweep and 760mm width that is trimmable by 40mm at each end for a possible width of 700mm. The bar is available in 3 rise variants: 0mm, 10mm and 20mm. Made from tough 7050 Lightweight aluminium, the bar weighs just 250g at full width.
FEATURES
- 760mm wide
- Wide to start and trimmable by 40mm each side
- Made from tough 7050 lightweight aluminum
SPECIFICATIONS
| TYPE (BAR) | Riser |
|---|---|
| APPLICATION (HB) | XC |
| CLAMP DIAM | 31.8mm |
| WIDTH | 760mm |
| RISE (HB) | 10mm, 20mm |
| COLOR/FINISH (HB) | Blast Black |
| MATERIAL (HB) | Al-7050 |
| BACKSWEEP (DEGREES) | 9 |
