OVERVIEW

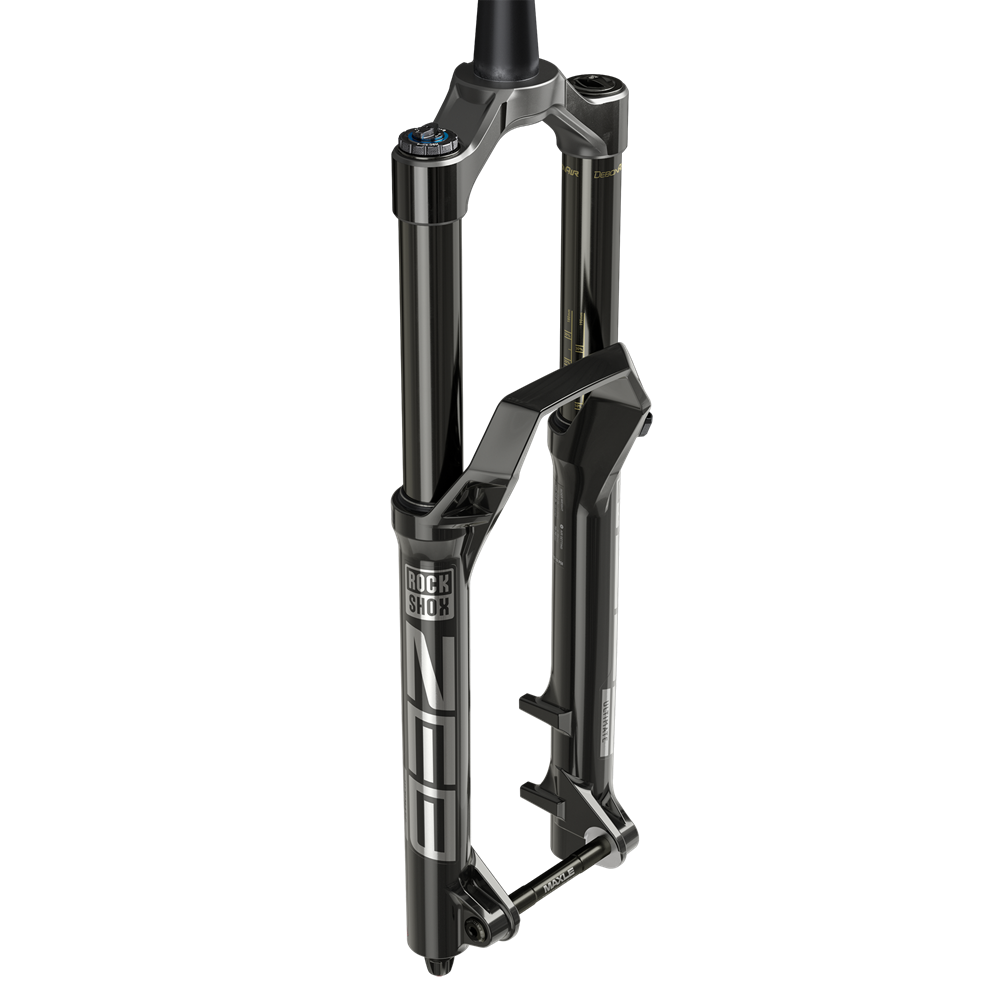

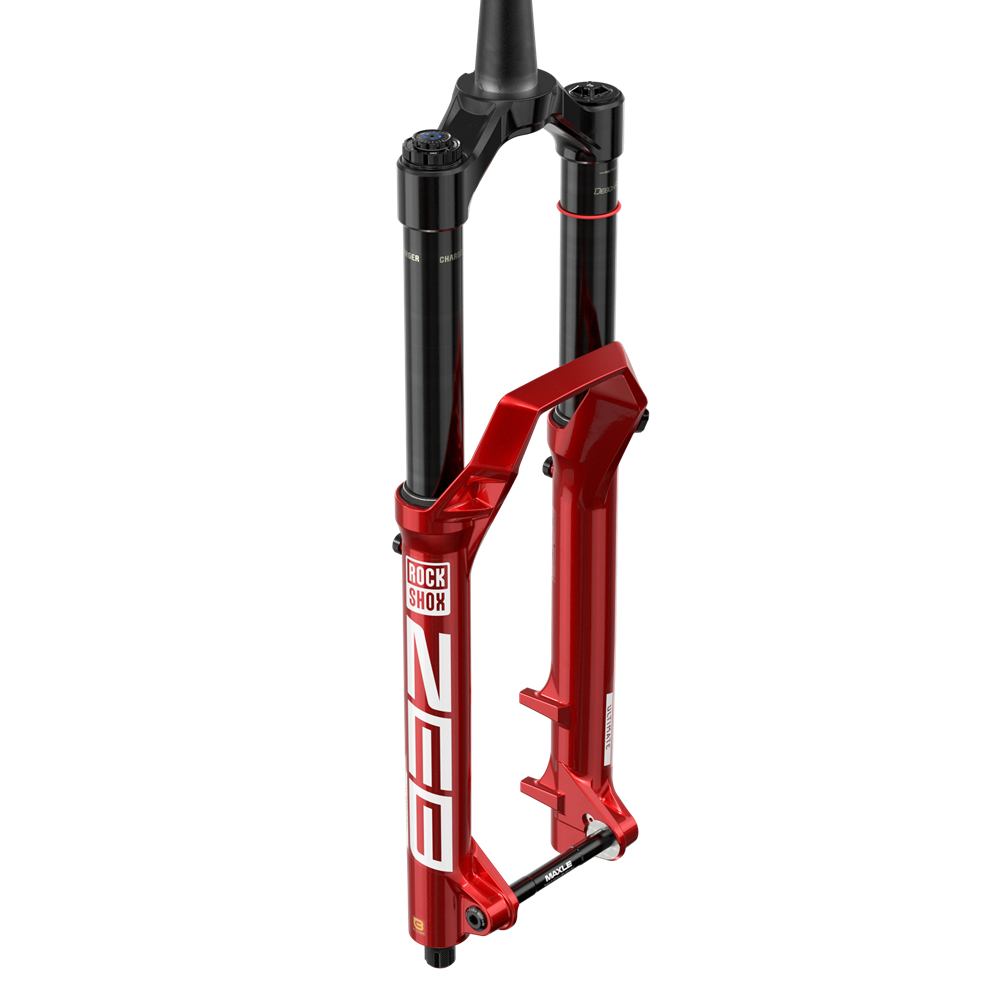

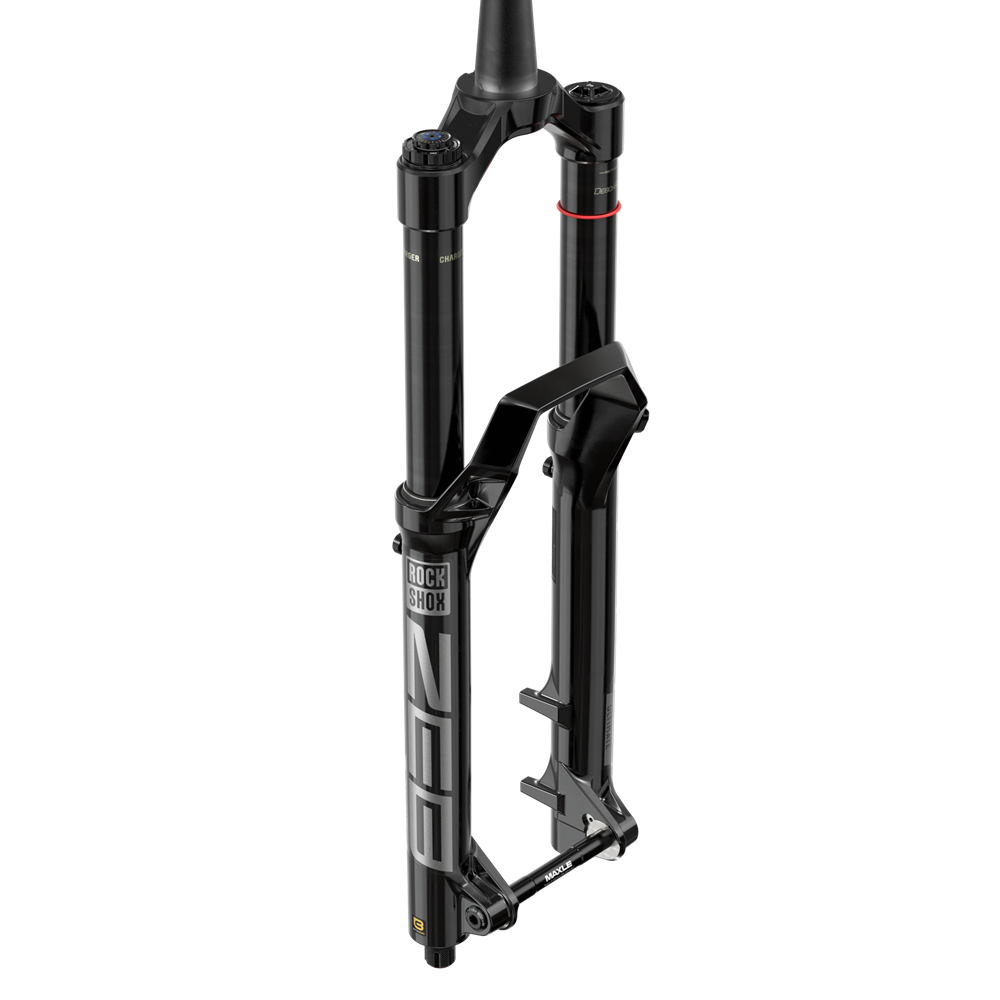

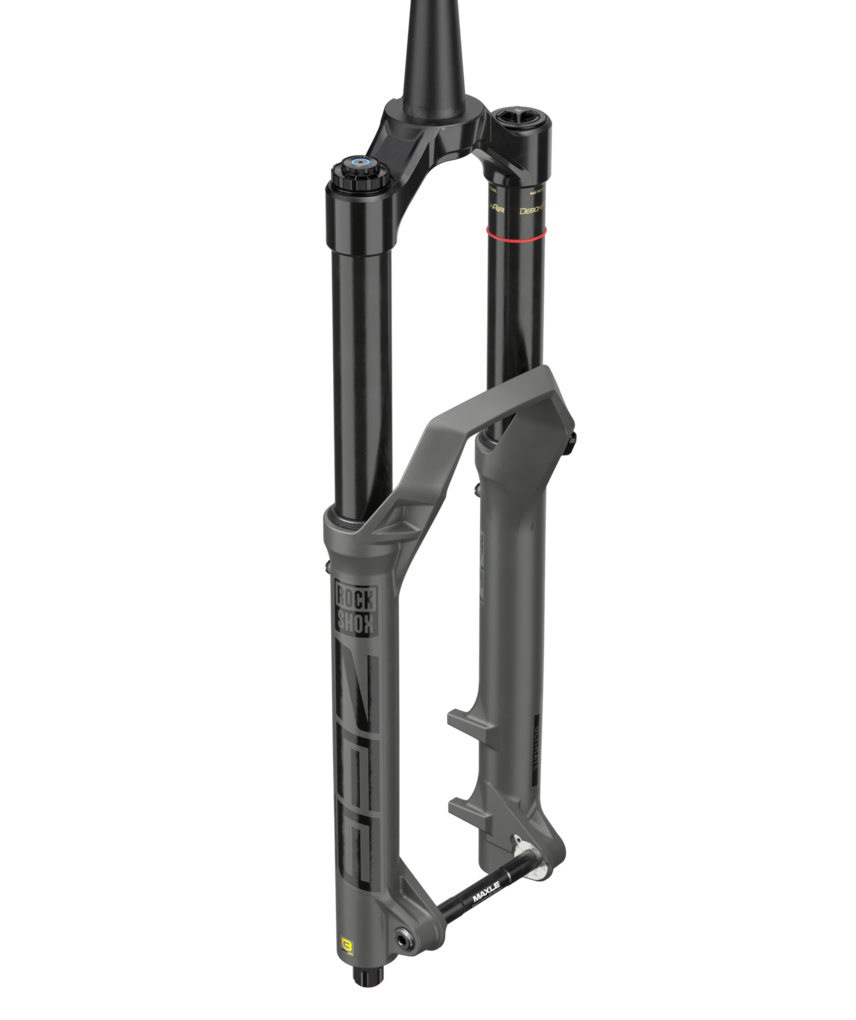

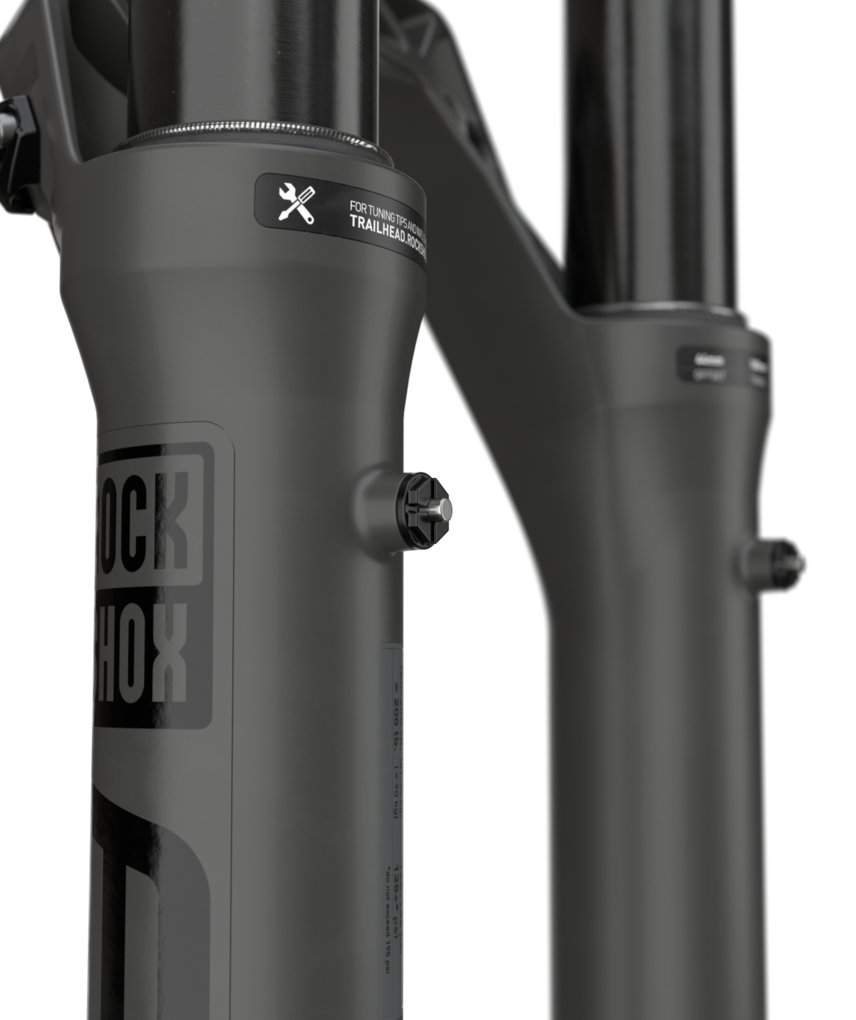

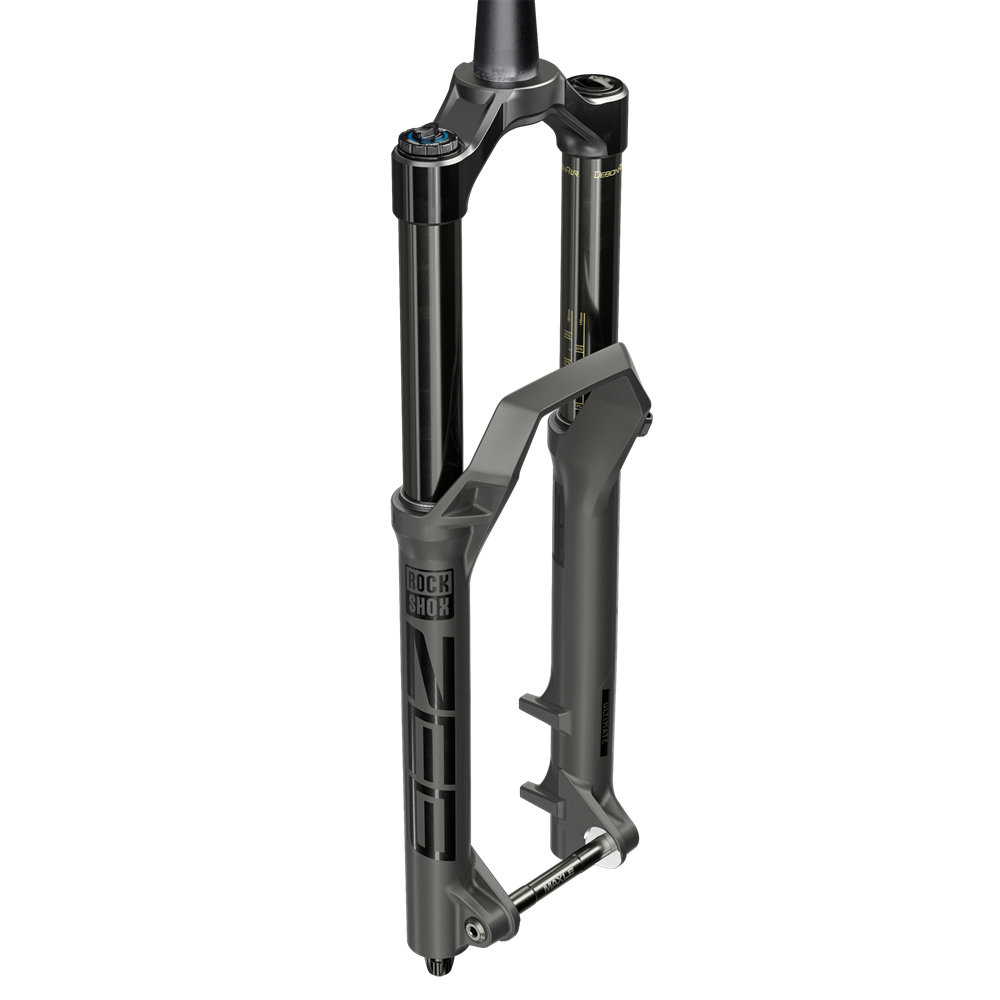

Built for the best riders, ridden on the hardest tracks, ZEB Ultimate rules the world’s toughest enduros. Equipped with the new Charger 3.1 RC2 damper, ZEB gives riders exceptional adjustability for the right balance of comfort, control, and speed. Alongside this flagship damper, the stout 38mm chassis rides on vibration-killing ButterCups and a DebonAir+ spring. The technology you need for the fastest split times, the style you want on the start line: This is ZEB.
FEATURES
- To meet the demands of the world’s best riders, Charger 3.1 is a brilliant evolution of our proven damper platform. With increased damping range and High Speed Compression, Low Speed Compression, and Low Speed Rebound adjustments, Charger 3.1 smooths out the roughest trails.
- Charger 3.1 RC2’s adjustment range is broader—with less compression damping in the LSC open position and additional support in the HSC closed position, you get the traction, control, and comfort you need to charge dicey lines all day.
- Ever on the quest to eliminate friction, a new bushing package further reduces friction with an updated process at the factory level to give riders a better feel right out of the box.
- ButterCups block 20% of high-frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in Signature colorways Electric Red, Slab Grey or Ultimate High Gloss Black.
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel.
- Short fender compatibility. (RockShox fender included)
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 160mm, 170mm, 180mm, 190mm |
| Damper Type | Charger 3.1 RC2 W/ButterCups |
| Fork offset | 44mm (27.5"), 44mm (29") |
| Color (FS) | BoXXer Electric Red - Gloss, Gloss Black, Slab Grey - Matte |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 38mm aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens |
| Spring | DebonAir+ W/ButterCups |
| Crown OD (mm) | 59, 63 |
| Weight Based On | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/ButterCups |
| Weight (g) | 2341 |
| VOLUME REDUCER | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens, 2/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey |
| FENDER COMPATIBILITY | Short, 3 point mount |
| WEIGHT (G) | 2341 |
| WEIGHT BASED ON | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |
OVERVIEW

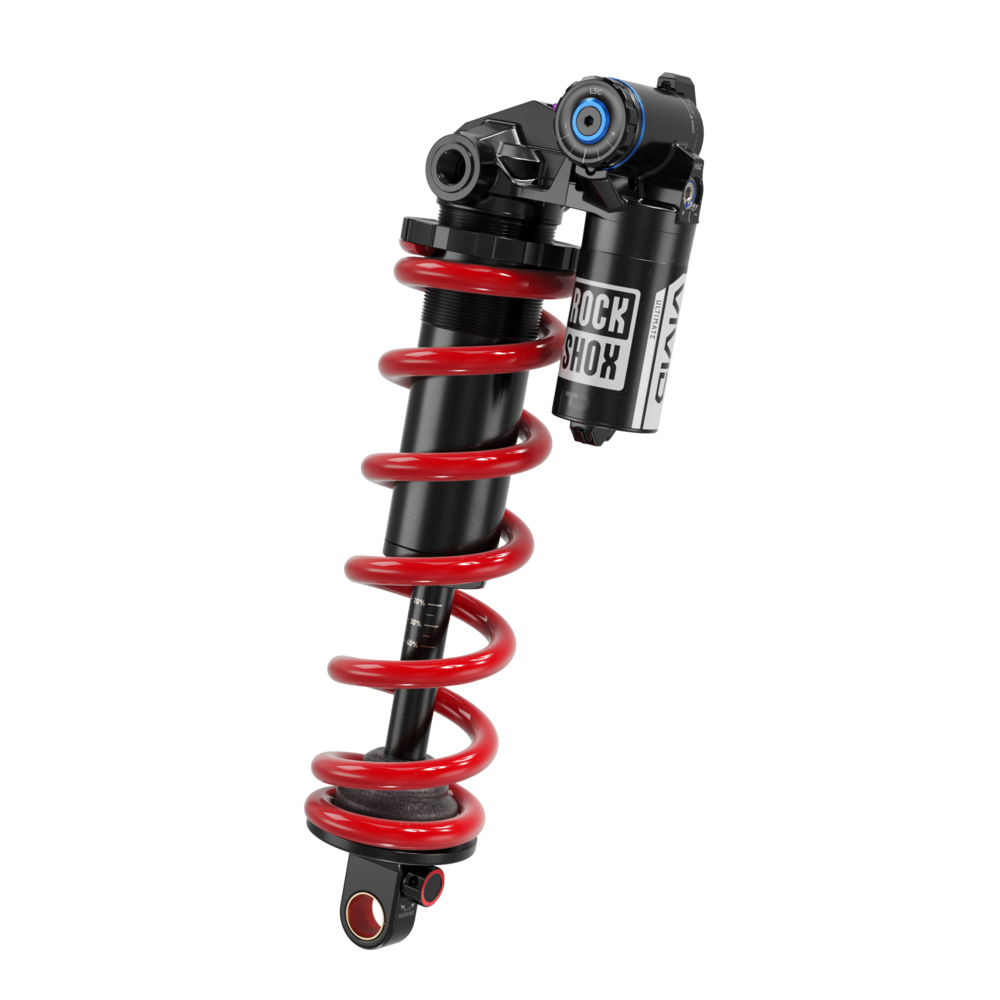

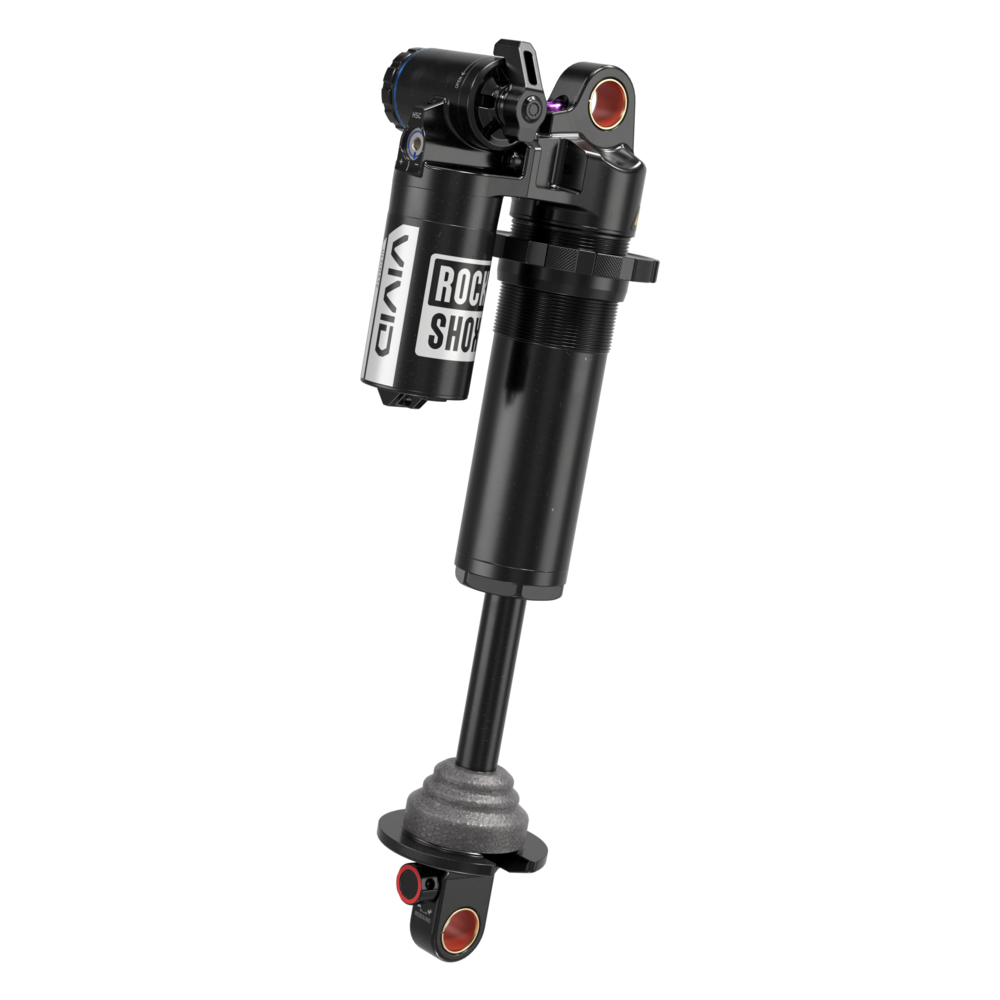

The world’s best gravity racers need it. The roughest tracks demand it. Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T positionsensitive damper. External, independent High and Low Speed Compression adjustments provide unreal sensitivity off-the-top, support and control in the mid-stroke, and Adjustable Hydraulic Bottom Out to cushion the harshest landings. It’s the unmistakable feel of coil, evolved with premium technology to give you world-class suspension performance.
Please check with frame manufacturer on Aftermarket rear shock compatibility.
FEATURES
- TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
- NEW TouchDown RC2T damper features Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency.
- Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
- Compatible with new Electric Red Coil Springs
- Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel.
- Maxima plush damping fluid reduces friction and silences damper noise.
- 20 clicks of rebound adjustment offer a wide range of tunability and accommodate more rider types.
- The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
- 8x30 Bearing Adapter compatible
SPECIFICATIONS
Model ID: RS-VIVC-ULT-C1
| Eye to eye / Stroke |
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75 *205x62.5(TR) compatible with Reign (8th Gen) |
|---|---|
| Damper Type | RC2 Adj. Hydraulic Bottom Out, RC2T Adj. Hydraulic Bottom Out |
| Rebound tune | R23, R25, R55, R85 |
| Compression tune | C22, C26, C30, C34, C37, C43 |
| Lockout force | X0, X2, X4 |
| Shaft Eyelet | Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation |
| Body Eyelet | Bearing, No Bushing, Standard, Standard - 90 Deg Rotation, Trunnion |
| E-Bike Approved | E-bike Approved |
| Weight (g) | 670 |
| Weight Based On | 230x65, standard/standard, no hardware |
OVERVIEW

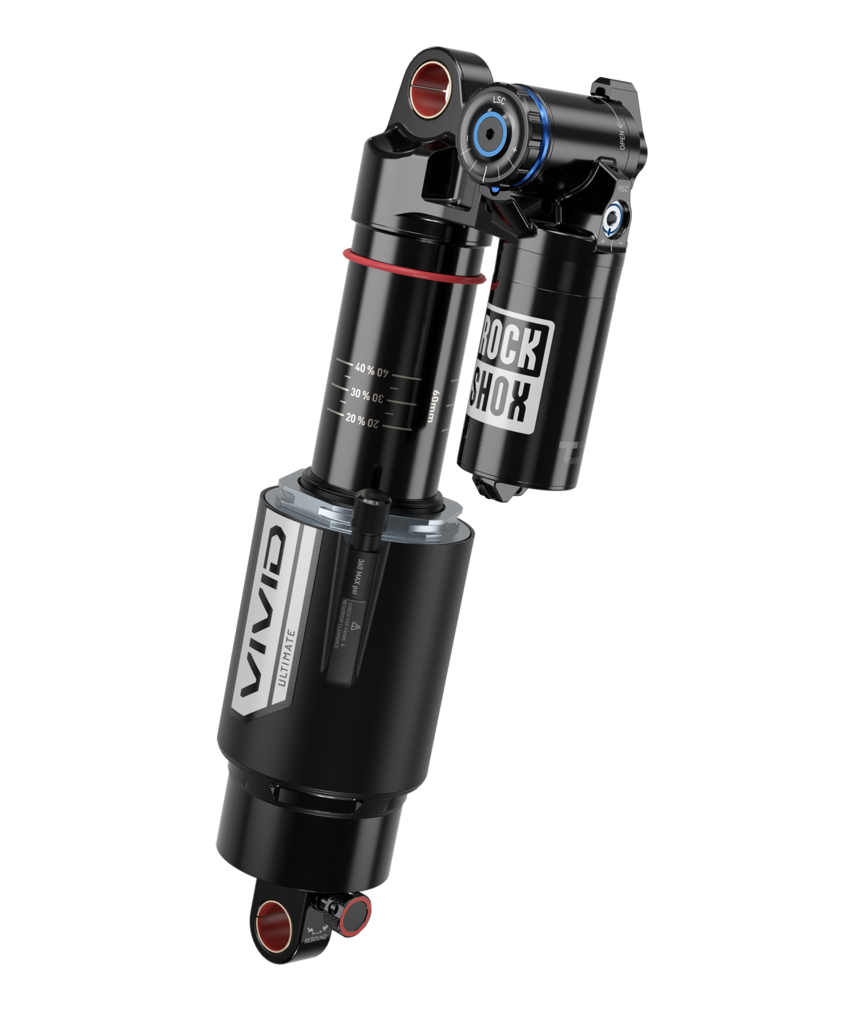

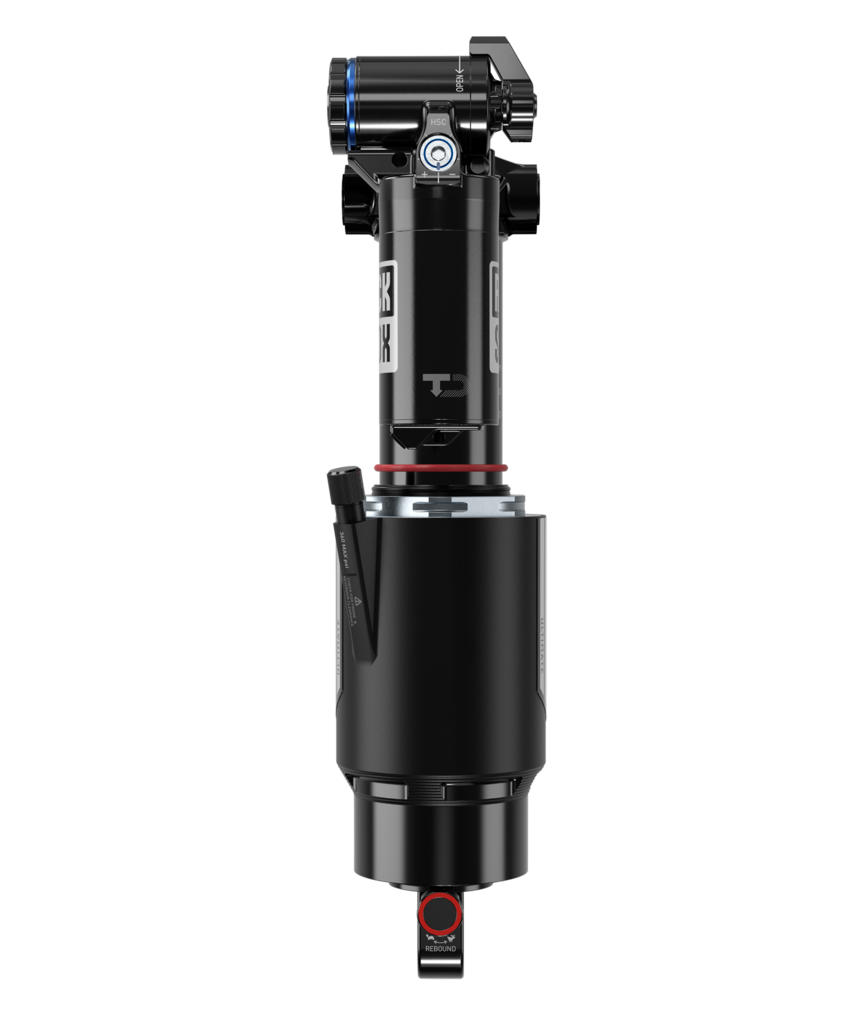

Big, bold, and built for pure downhill performance, Vivid Ultimate has unmatched tunability and damping for confidence in technical terrain. With an air spring that acts like a coil, this is the latest chapter in Vivid’s legacy of reliability and rock-smashing suppleness. This premium rear shock is built to push the limits on everything from downhill to E-MTB to enduro bikes.
Please check with frame manufacturer on Aftermarket rear shock compatibility.
FEATURES
- NEW TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
- NEW TouchDown RC2T damper features Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency.
- The most coil-like air spring we’ve ever built featuring the latest in DebonAir technology, Vivid’s air spring maximizes fine-tuning potential, allowing riders to match positive air volume to any bike. Increased mid-stroke support and off-the-top suppleness create an unparalleled ride feel out on the trail.
- Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
- The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance, ride after ride.
- 20 clicks of Rebound adjustment offer a wide range of tunability to accommodate all riding styles.
- Service intervals are now boosted to 100 hours of ride time, thanks to an updated dust wiper seal design and increased oil volumes.
SPECIFICATIONS
Model ID: RS-VIVD-ULT-C1
| Eye to eye / Stroke |
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75 *205x62.5(TR) compatible with Reign (8th Gen) |
|---|---|
| Damper Type | RC2 Adj. Hydraulic Bottom Out, RC2T Adj. Hydraulic Bottom Out |
| Rebound tune | R23, R25, R55, R85 |
| Compression tune | C22, C26, C30, C34, C37, C43 |
| Lockout force | X0, X2, X4 |
| Shaft Eyelet | Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation |
| Body Eyelet | Bearing, No Bushing, Standard, Standard - 90 Deg Rotation, Trunnion |
| E-Bike Approved | E-bike Approved |
| Weight (g) | 670 |
| Weight Based On | 230x65, standard/standard, no hardware |
OVERVIEW

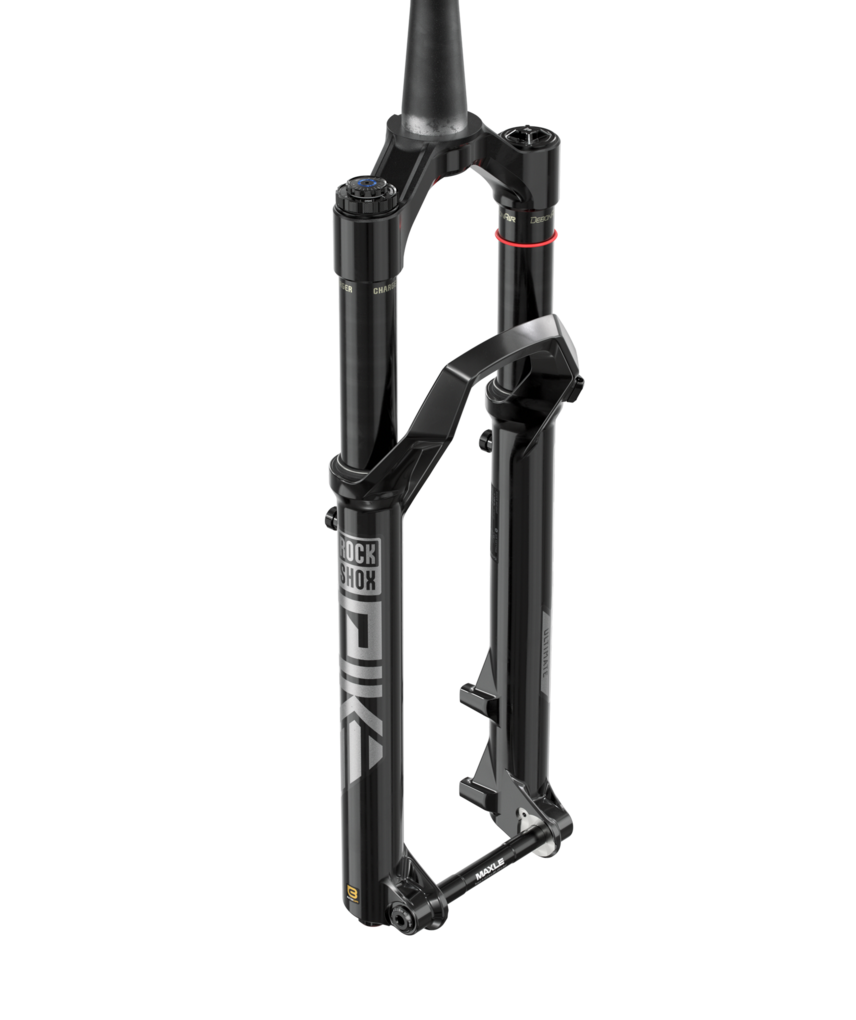

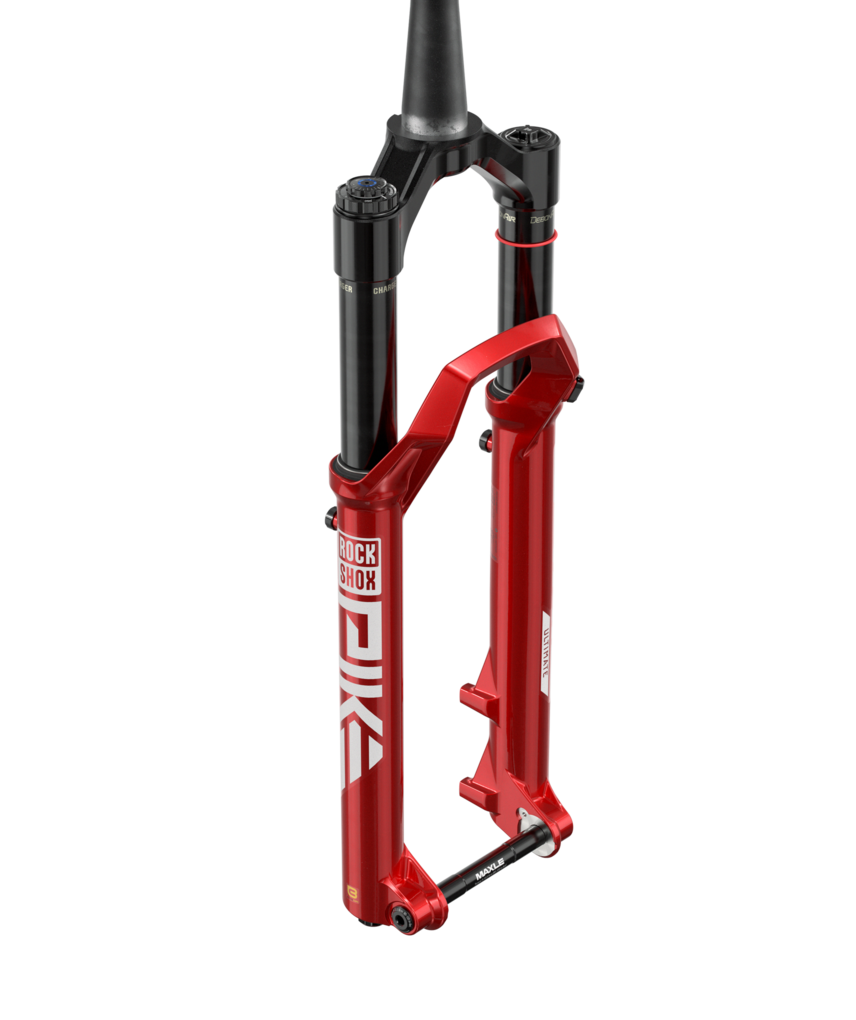

Ultra-versatile, super capable, lightweight on the scales, heavy on the attitude—this is the new Pike. Not afraid of the rooty chutes. Unintimidated by the calf-crushing climbs. We’ve redesigned the trail-capable legend with a new 35mm chassis equipped with podium-proven technology like the new Charger 3 damper featuring vibration-killing ButterCups. A fork designed to level up your trail game. Experience the legend.
FEATURES
- 35mm chassis is at home on the trail - satisfyingly stiff, playful, and light.
- Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
- ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
- [Units manufactured after 1 July 2023 no longer include the Pressure Relief Valves. Please check with your dealer for more information.] Pressure Relief Valves eliminate unwanted air pressure build-up in the lower leg caused by variations in altitude or temperature. With the press of a button, Pressure Relief Valves restore that premium fork feel.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in Ultimate High Gloss Black or Signature colorway Gloss Silver.
- RockShox premium short fender compatibility. (RockShox bolt-on fender sold separately)
- Maxima Plush damping fluid reduces friction and silences damper noise.
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 120mm, 130mm, 140mm |
| STEERER | 1.5" Tapered |
| AXLE | 15x110mm BOOST™ |
| SPRING | DebonAir+ W/ButterCups |
| FORK OFFSET | 37mm (27.5"), 44mm (27.5"), 44mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 35mm tapered wall aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 180mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Charger 3 RC2 W/ButterCups |
| VOLUME REDUCER | 0/5 Tokens, 0/6 Tokens, 1/6 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver |
| FENDER COMPATIBILITY | Bolt On - Short, Short, 3 point mount |
| WEIGHT (G) | 1887 |
| WEIGHT BASED ON | 29" Maxle Stealth 140mm Travel 44mm Offset, W/Pressure Relief Valves & ButterCups |

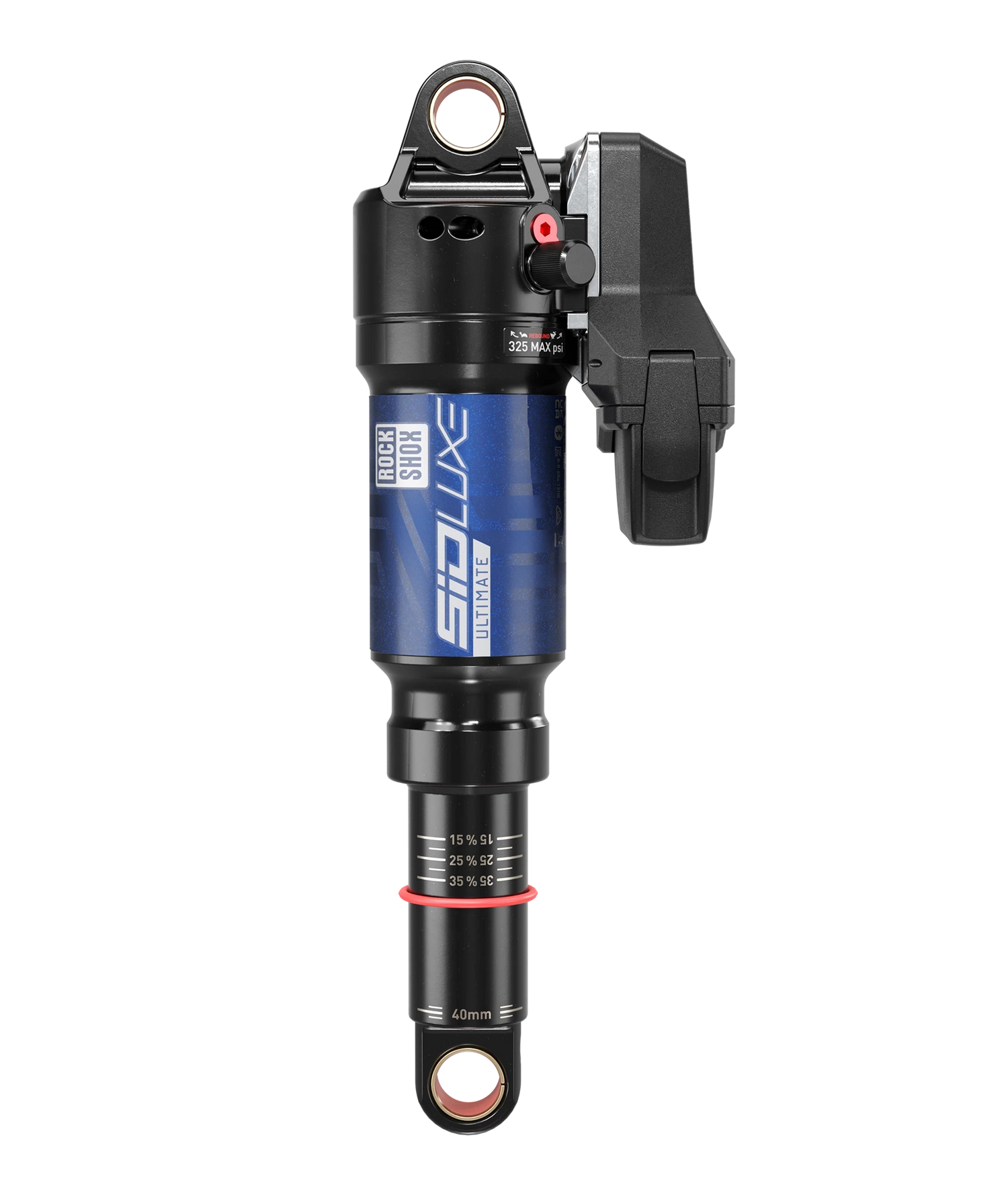

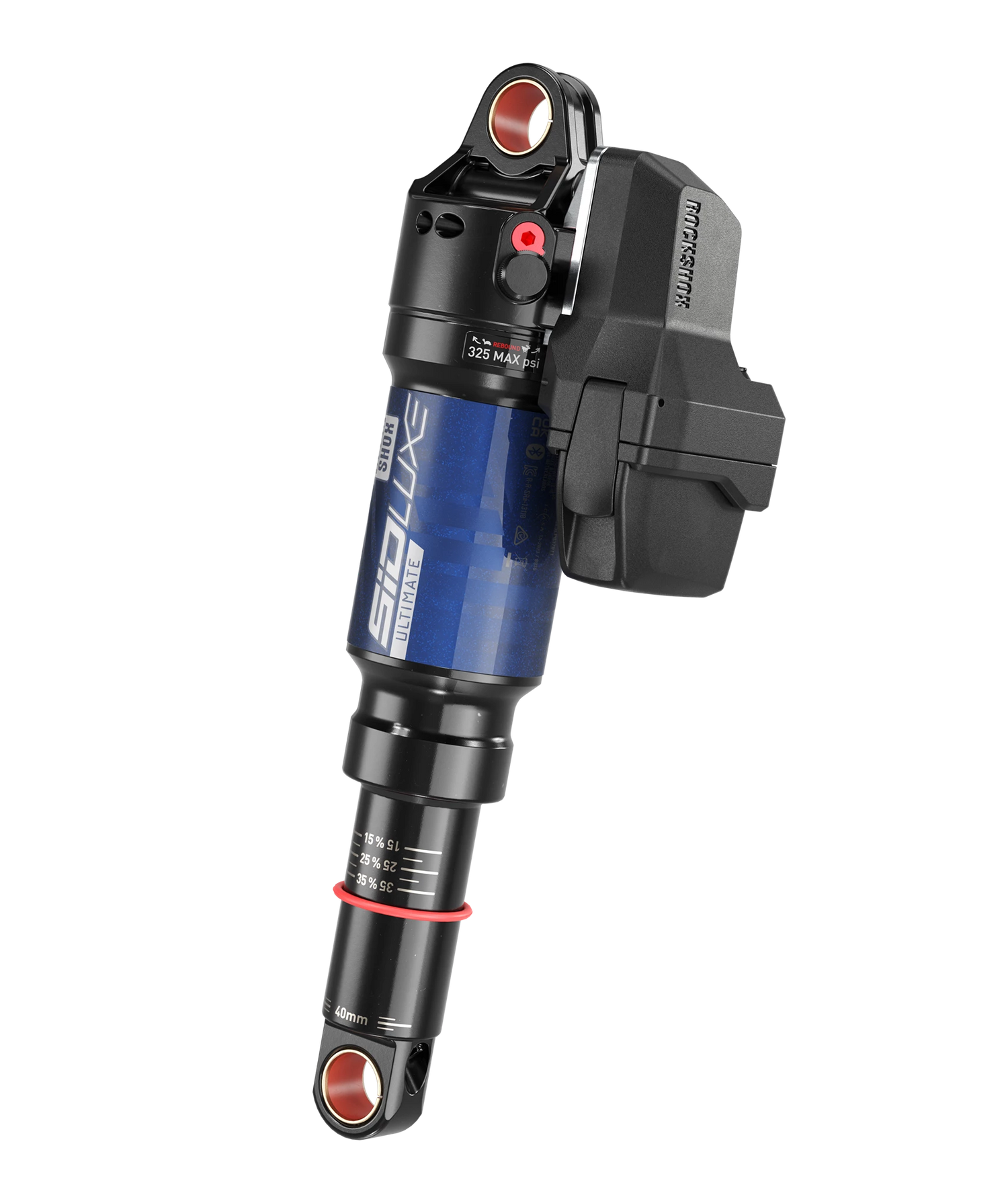

The path to the podium has never been clearer. SIDLuxe Ultimate Flight Attendant completes the fastest, most efficient, and most technologically-advanced crosscountry platform ever. Efficiency is key with the latest Flight Attendant automatic damper featuring three Compression positions: Open, Pedal, and Lock positions. Flight Attendant’s fine-tuned algorithm intuitively understands everything on course. Focused on maximizing efficiency and maintaining speed, the new SIDLuxe Ultimate Flight Attendant is a shock built to dominate the track.
FEATURES
- Remove suspension complexity to elevate your ride experience. Flight Attendant has an all new algorthim that uses a suite sensors to read rider and terrain inputs to anticipate the perfect suspension position. No other suspension system has this level of personalization to match your riding preferences, your terrain, your style, and your physical capabilities. Elevate your ride
- Adaptive Ride Dynamics enables the Flight Attendant system to learn from the rider to make smarter, more personalized decisions for greater efficiency and even more speed.
- AXS-enabled and cable free, Flight Attendant is an integrated part of the SRAM AXS ecosystem, meticulously crafted to disappear.

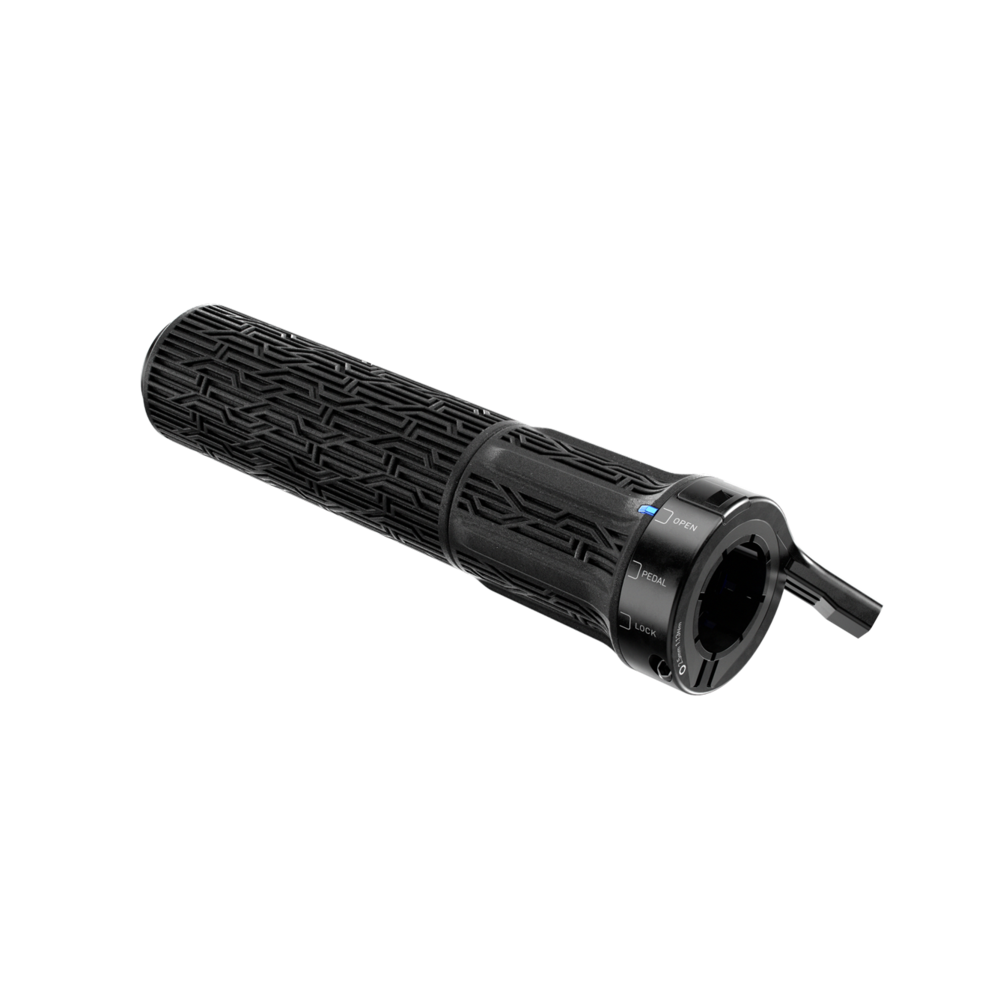

- Three-position damping system: Open, Pedal, and Lock positions. High speed compression damping blow-off for Open and Pedal positions.
- Ultimate graphics package includes the decal option in our new signature Blue Crush Flight Attendant colorway.
- Super-light XC design delivers premium performance and efficiency.
- Shared battery with all SRAM AXS-enabled components.
- Flight Attendant System is waterproof to IPX7 rating.
- Flight Attendant system only gets better with the more AXS components you pair into the system.
SPECIFICATIONS
| Eye to eye / Stroke | 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50 |
|---|---|
| Damper Type | RL3 |
| Rebound tune | R29, R57, R81, R85 |
| Compression tune | C25, C27, C30, C33, C34, CC28, CC34 |
| Lockout force | X6, X8 |
| Shaft Eyelet | No Bushing, Standard, Trunnion |
| Body Eyelet | No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 90 Deg Rotation |
| E-Bike Approved | E-bike Approved |
| Weight (g) | 349 |
| Weight Based On | 190x45 Solo Air 0 Tokens (No Battery) |
OVERVIEW
Revelation is all grown up and ready to explore wherever the trail may turn. Value-packed, the Revelation features the updated DebonAir™ air spring paired with the Motion Control damper and 35mm Fast Black upper tubes.
FEATURES
- NEW Maxima Lower Leg Performance lube reduces friction and enhances fork performance ride after ride
- Chassis derived from Pike
- Motion Control™ damping featuring low speed compression adjustment to firm
- Highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- 35mm Fast Black upper tubes
- Graphic package for a fresh, premium look
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 120mm, 130mm, 140mm, 150mm, 160mm |
| Damper Type | Motion Control |
| Fork offset | 42mm (29"), 46mm (27.5") |
| Color (FS) | Gloss Black |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 2/5 Tokens, 3/6 Tokens, 4/6 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 58 |
| Part Weight (g) | 1895 - 1925 |

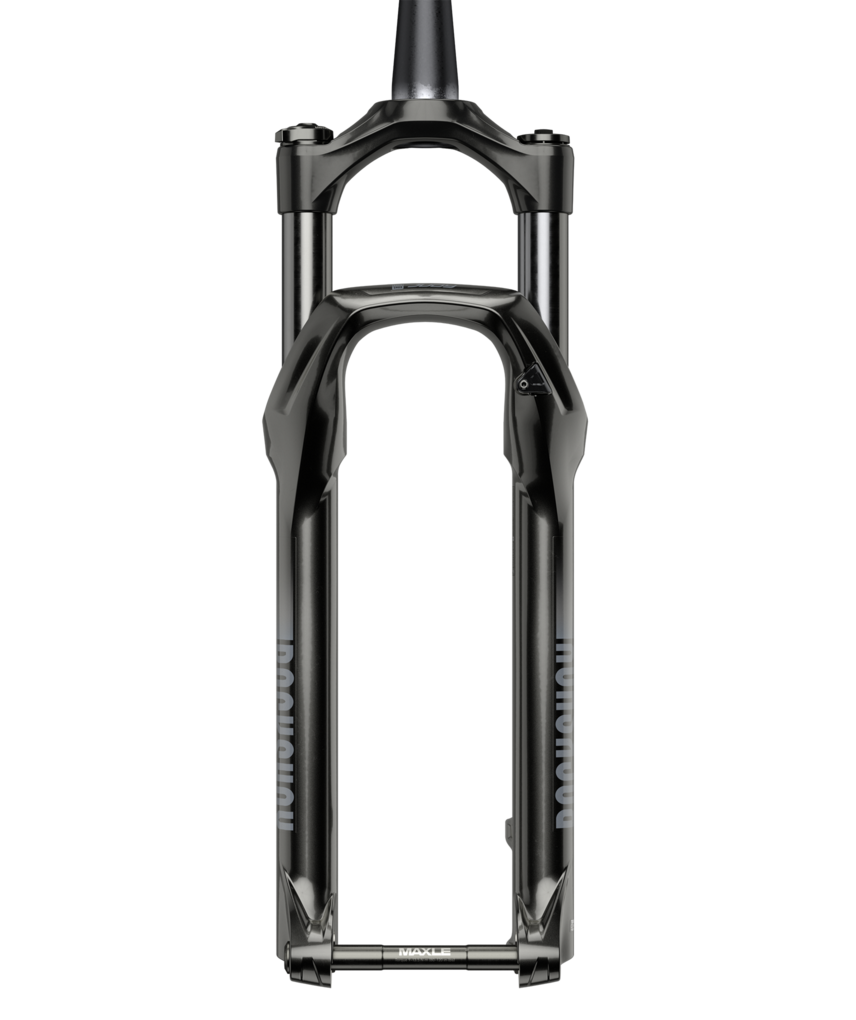

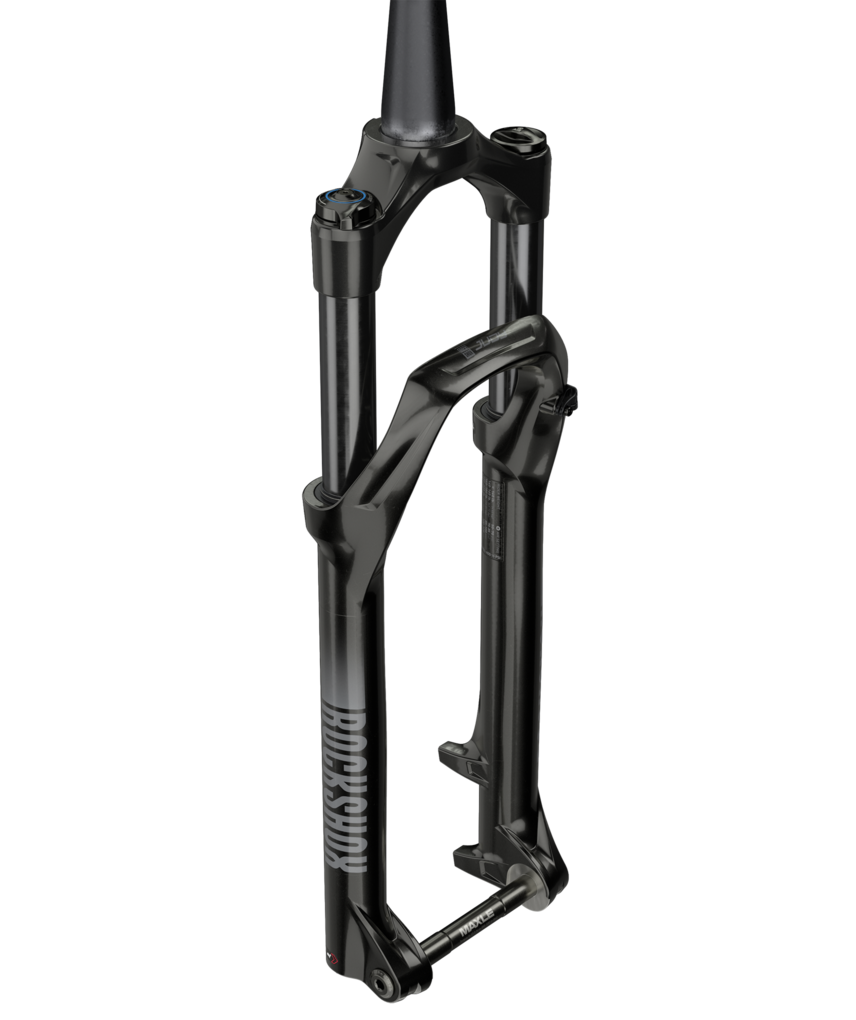

Premium performance at down-to-earth prices. Judy Silver now has new options available to support compatibility with short and full fenders. Judy Silver TK level forks give you stiff steel upper tubes and TurnKey™ lockout.
FEATURES
- New graphics package with E-MTB endorsement option (15x110mm)
- TurnKey lockout gives 'on/off' control
- Fits Tires up to 2.8" (15x110mm)
- Fast Black finished 30mm steel upper tubes couple stiffness and lightweight with a premium look
- Plush coil spring or highly tunable Solo Air spring
SPECIFICATIONS
| WHEEL SIZE | 26", 27.5", 29" |
|---|---|
| TRAVEL (MM) | 100mm, 120mm, 130mm, 80mm |
| STEERER | 1.5" Tapered, 1-1/8" Aluminum, 1-1/8" Steel |
| AXLE | 15x110mm BOOST™, 9mm Quick Release |
| SPRING | Solo Air |
| FORK OFFSET | 40mm (26"), 42mm (27.5"), 42mm (29"), 46mm (29"), 51mm (27.5"), 51mm (29") |
| MAXIMUM ROTOR SIZE | 185mm, 220mm |
| UPPER TUBE TYPE | 30mm straight wall steel |
| MAX TIRE WIDTH (MM) | 58, 62, 81 |
| MINIMUM ROTOR SIZE | 160mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | TurnKey |
OVERVIEW

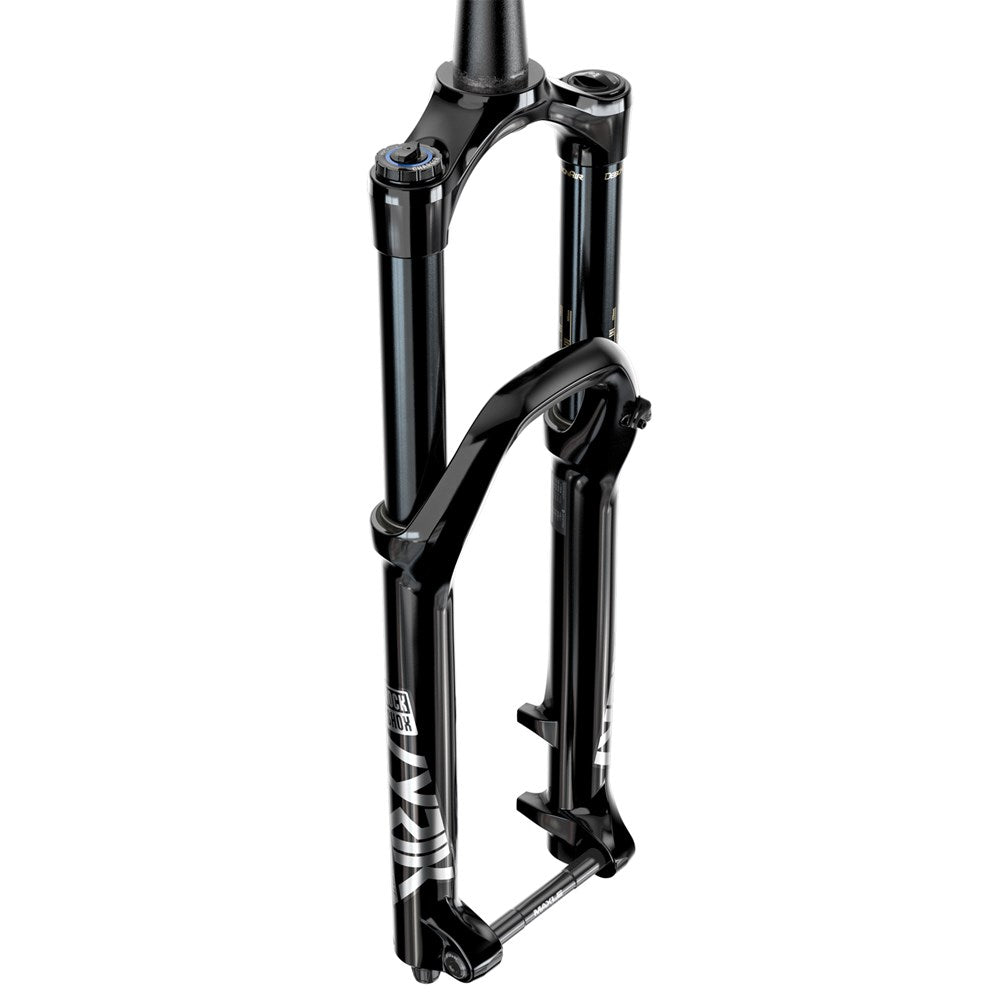

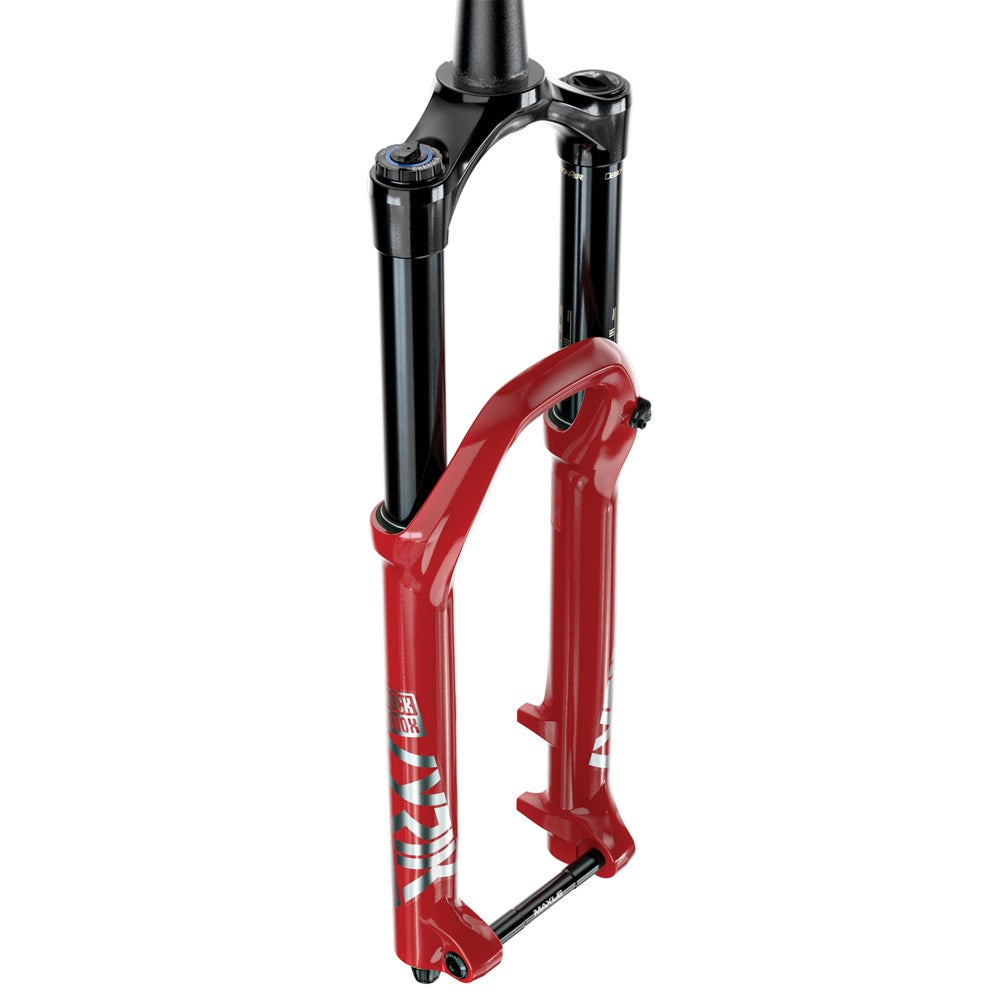

Faster. Stronger. Ruthlessly efficient. The new Lyrik is up for anything and down for it all. The most versatile fork in our lineup features a hyper-focused new chassis that’s lighter while still critically stiff to deliver on Lyrik’s legendary performance and party attitude. Lyrik Ultimate packs an orchestra of industry-leading tech like the new Charger 3 damper, ButterCup technology, and the new DebonAir+ air spring. Let Lyrik sing with a fresh signature colorway we call “Heavy Meadow”, inspired by our favorite alpine sufferfests. The new Lyrik Ultimate is here.
FEATURES
- 35mm chassis with a focused all-mountain mindset - satisfyingly stiff, efficient, and designed to eliminate as much weight as possible.
- Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
- ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
- [Units manufactured after 1 July 2023 no longer include the Pressure Relief Valves. Please check with your dealer for more information.] Pressure Relief Valves eliminate unwanted air pressure build-up in the lower leg caused by variations in altitude or temperature. With the press of a button, Pressure Relief Valves restore that premium fork feel.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in Ultimate High Gloss Black or new “Heavy Meadow” Signature colorway, inspired by our favorite alpine sufferfests.
- RockShox premium short fender compatibility. (RockShox bolt-on fender sold separately)
- Maxima Plush damping fluid reduces friction and silences damper noise.
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 140mm, 150mm, 160mm |
| STEERER | 1.5" Tapered, 1.8" Tapered |
| AXLE | 15x110mm BOOST™ |
| SPRING | DebonAir+, DebonAir+ W/ButterCups |
| FORK OFFSET | 37mm (27.5"), 44mm (27.5"), 44mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 35mm tapered wall aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 180mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Charger 3 RC2, Charger 3 RC2 W/ButterCups |
| VOLUME REDUCER | 0/5 Tokens, 1/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Heavy Meadow Green - Gloss |
| FENDER COMPATIBILITY | Bolt On - Short, Short, 3 point mount |
| WEIGHT (G) | 2028 |
| WEIGHT BASED ON | 29" Maxle Stealth 160mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |
OVERVIEW

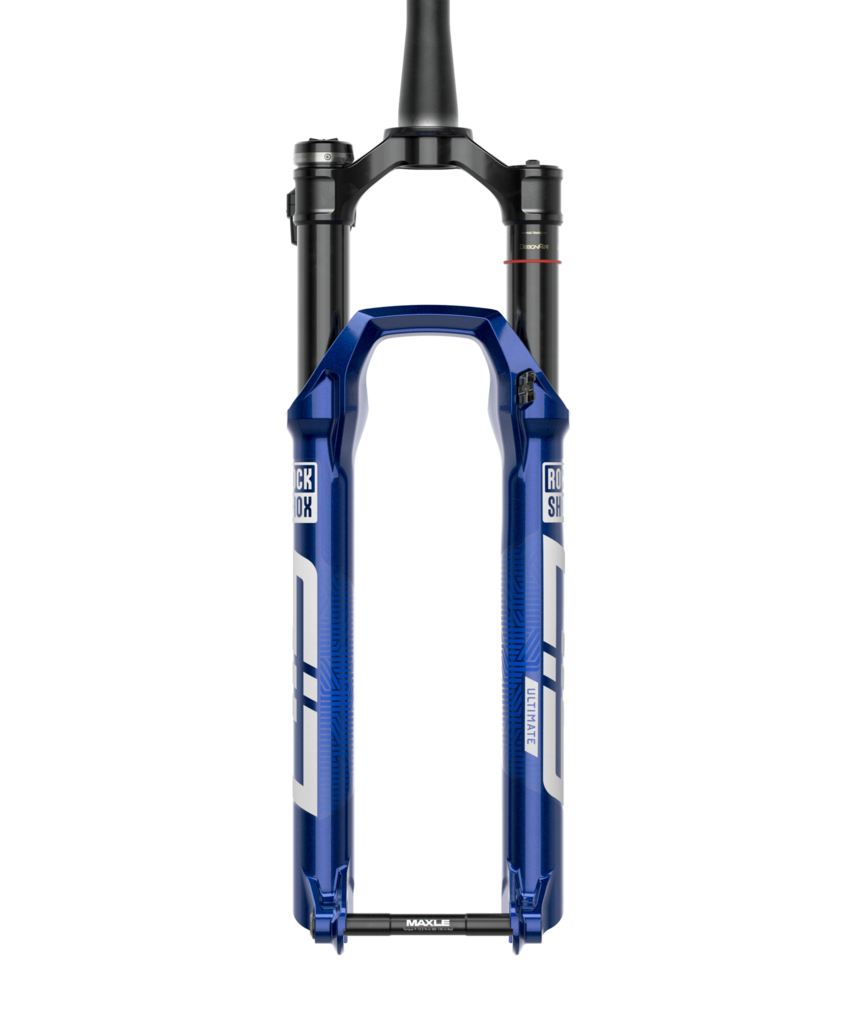

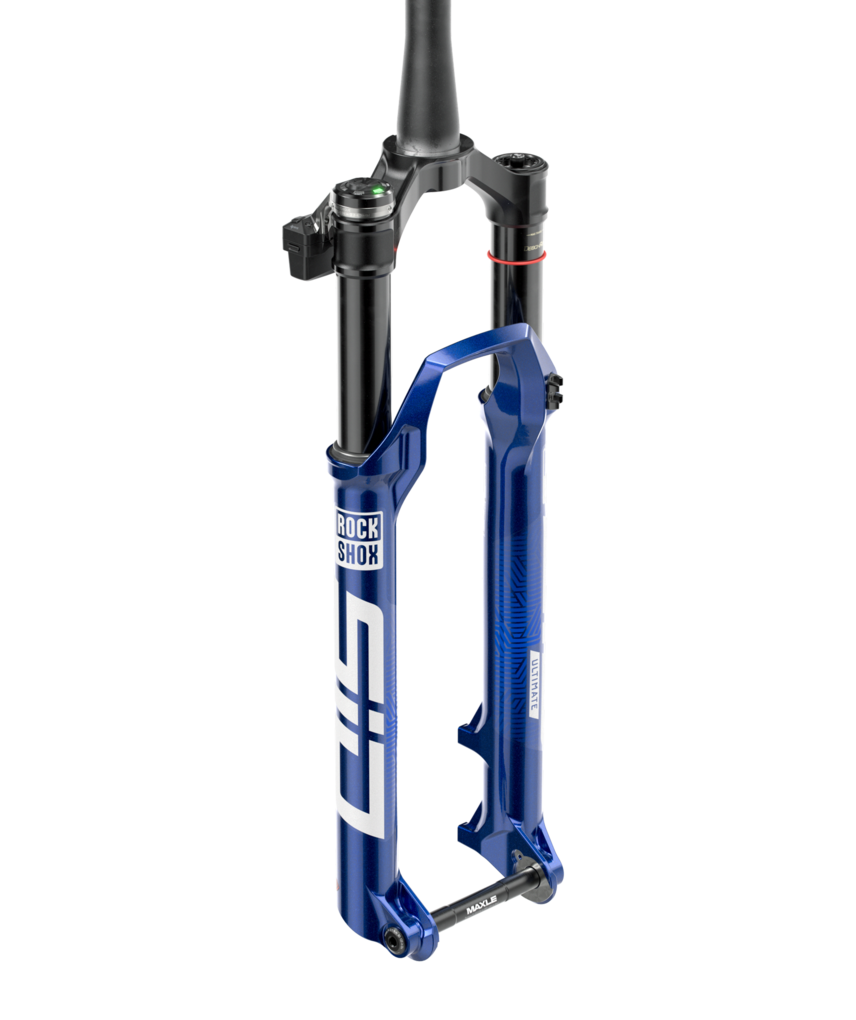

Climb mountains. Charge descents. SID Ultimate Flight Attendant isn’t like other XC forks, featuring a formidable 35mm chassis that holds the line when you’re on the edge. With the Flight Attendant system, this fork is more efficient and advanced than ever before. The new Charger Race Day 2 Flight Attendant electronic damper features a three-position (3P) Compression adjuster— Open, Pedal, and Lock positions, all at your fingertips. SID Ultimate Flight Attendant adapts to everything from full-gas cross-country to sporty backcountry loops thanks to a new, higher-volume DebonAir+ spring that’s supple at the top of its travel with tons of tunability.
FEATURES
- NEW Remove suspension complexity to elevate your ride experience. Flight Attendant has an all new algorithm that uses a suite sensors to read rider and terrain inputs to anticipate the perfect suspension position. No other suspension system has this level of personalization to match your riding preferences, your terrain, your style, and your physical capabilities. Elevate your ride.
- NEW Adaptive Ride Dynamics enables the Flight Attendant system to learn from the rider to make smarter, more personalized decisions for greater efficiency and even more speed.

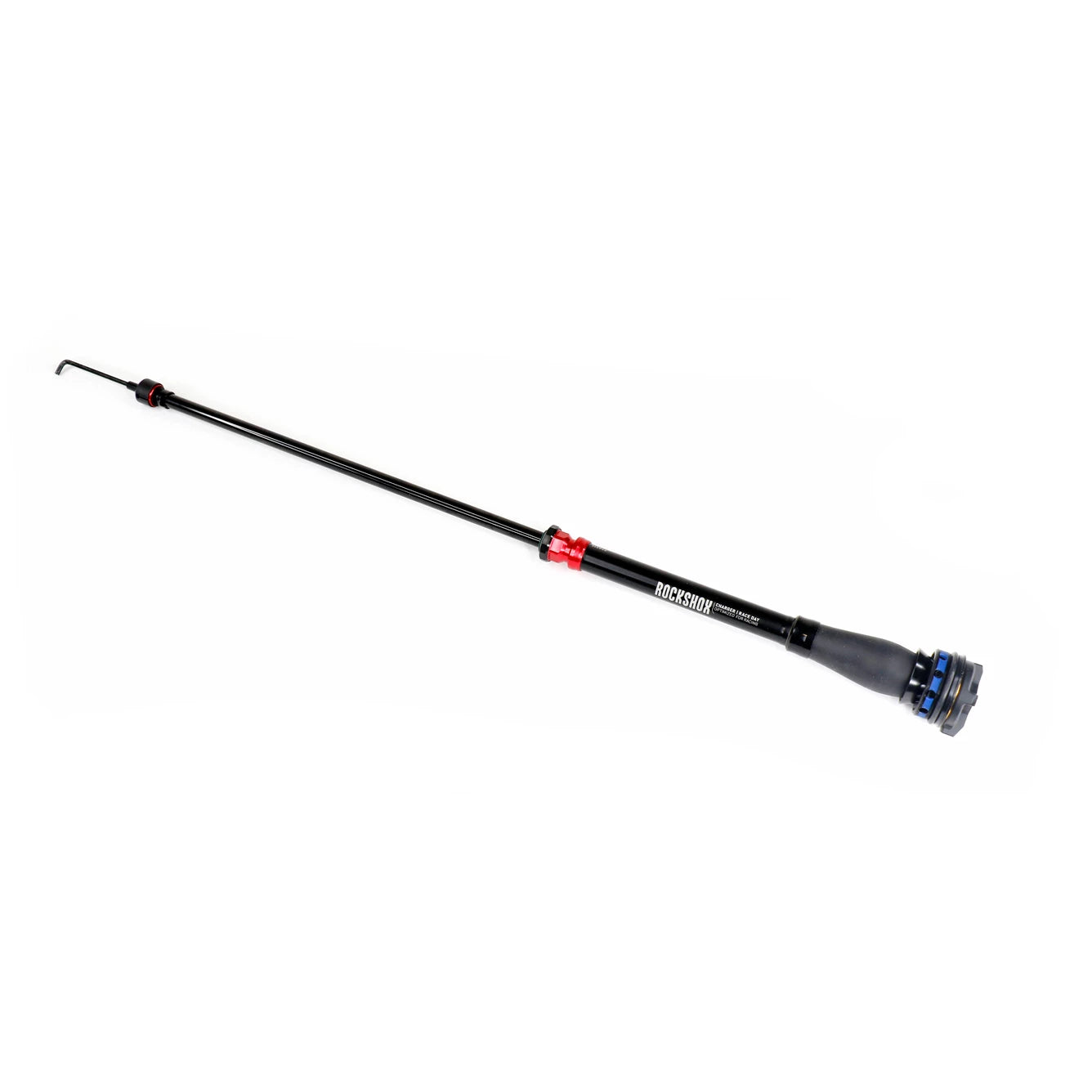

- NEW Charger Race Day 2 Flight Attendant electronic damper features an automatic three position Compression adjustment (Open/Pedal/ Lock positions) with independent adjustable Rebound.
- AXS-enabled and cable free, Flight Attendant is an integrated part of the SRAM AXS ecosystem, meticulously crafted to disappear.
- 35mm chassis is the perfect blend of light weight and rigidity for the modern XC bike. Plus, we made it lighter…again.
- Longer-travel 120mm option, in case you’re feeling extra.
- Machined crown to shave weight without compromising strength and stiffness.
- Covetable “Blue Crush” signature colorway and Ultimate High Gloss Black, featuring the new lustrous Pearl White Flight Attendant graphics package.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- DebonAir+ provides more small-bump sensitivity and tunable mid-stroke support.
- Shared battery with all SRAM AXS-enabled components.
- Flight Attendant System is waterproof to IPX7 rating.
- Flight Attendant system only gets better with the more AXS components you pair into the system.
- Short fender compatibility. (RockShox fender included)
SPECIFICATIONS
Model ID: FS-SID-UFA-D1
| WHEEL SIZE | 29" |
|---|---|
| TRAVEL (MM) | 110mm, 120mm |
| DAMPER TYPE | Flight Attendant Race Day |
| FORK OFFSET | 44mm (29") |
| COLOR (FS) | Blue Crush, Gloss Black, SID Blue Crush - Gloss |
| E-BIKE APPROVED | Not Approved |
| STEERER | 1.5" Tapered |
| AXLE | 15x110mm BOOST™ |
| UPPER TUBE TYPE | 35mm tapered wall aluminum |
| DAMPER ADJUST | Flight Attendant Controlled |
| VOLUME REDUCER | 0/3 Tokens, 1/3 Tokens |
| SPRING | DebonAir+ |
| MAX TIRE WIDTH (MM) | 66 |
| MAXIMUM ROTOR SIZE | 220mm |
| MINIMUM ROTOR SIZE | 180mm |
| FENDER COMPATIBILITY | n/a |
| WEIGHT (G) | 1624 |
| WEIGHT BASED ON | 120mm travel, W/Maxle Stealth (no battery) |
OVERVIEW
Built for the best riders, ridden on the hardest tracks, ZEB Ultimate rules the world’s toughest enduros. Equipped with the new Charger 3.1 RC2 damper, ZEB gives riders exceptional adjustability for the right balance of comfort, control, and speed. Alongside this flagship damper, the stout 38mm chassis rides on vibration-killing ButterCups and a DebonAir+ spring. The technology you need for the fastest split times, the style you want on the start line: This is ZEB.
FEATURES
- EW To meet the demands of the world’s best riders, Charger 3.1 is a brilliant evolution of our proven damper platform. With increased damping range and High Speed Compression, Low Speed Compression, and Low Speed Rebound adjustments, Charger 3.1 smooths out the roughest trails.
- NEW Charger 3.1 RC2’s adjustment range is broader—with less compression damping in the LSC open position and additional support in the HSC closed position, you get the traction, control, and comfort you need to charge dicey lines all day.
- NEW Ever on the quest to eliminate friction, a new bushing package further reduces friction with an updated process at the factory level to give riders a better feel right out of the box.
- ButterCups block 20% of high-frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in Signature colorways Electric Red, Slab Grey or Ultimate High Gloss Black.
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel.
- Short fender compatibility. (RockShox fender included)
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 160mm, 170mm, 180mm, 190mm |
| Damper Type | Charger 3.1 RC2 W/ButterCups |
| Fork offset | 44mm (27.5"), 44mm (29") |
| Color (FS) | BoXXer Electric Red - Gloss, Gloss Black, Slab Grey - Matte |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 38mm aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens |
| Spring | DebonAir+ W/ButterCups |
| Crown OD (mm) | 59, 63 |
| Weight Based On | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/ButterCups |
| Weight (g) | 2341 |
| VOLUME REDUCER | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens, 2/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey |
| FENDER COMPATIBILITY | Short, 3 point mount |
| WEIGHT (G) | 2341 |
| WEIGHT BASED ON | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |

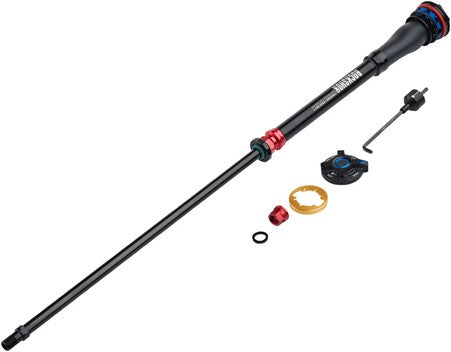

The 3-position Charger Race Day 2 damper—every detail perfected, every extra ounce shaved away; this is our lightest performance-driven damper ever. Light. Speed. Performance. Podium. This 3P damper features three compression positions: Open, Pedal, or a rock-solid Lock.
FEATURES
- Includes complete damper internals for an easy upgrade.

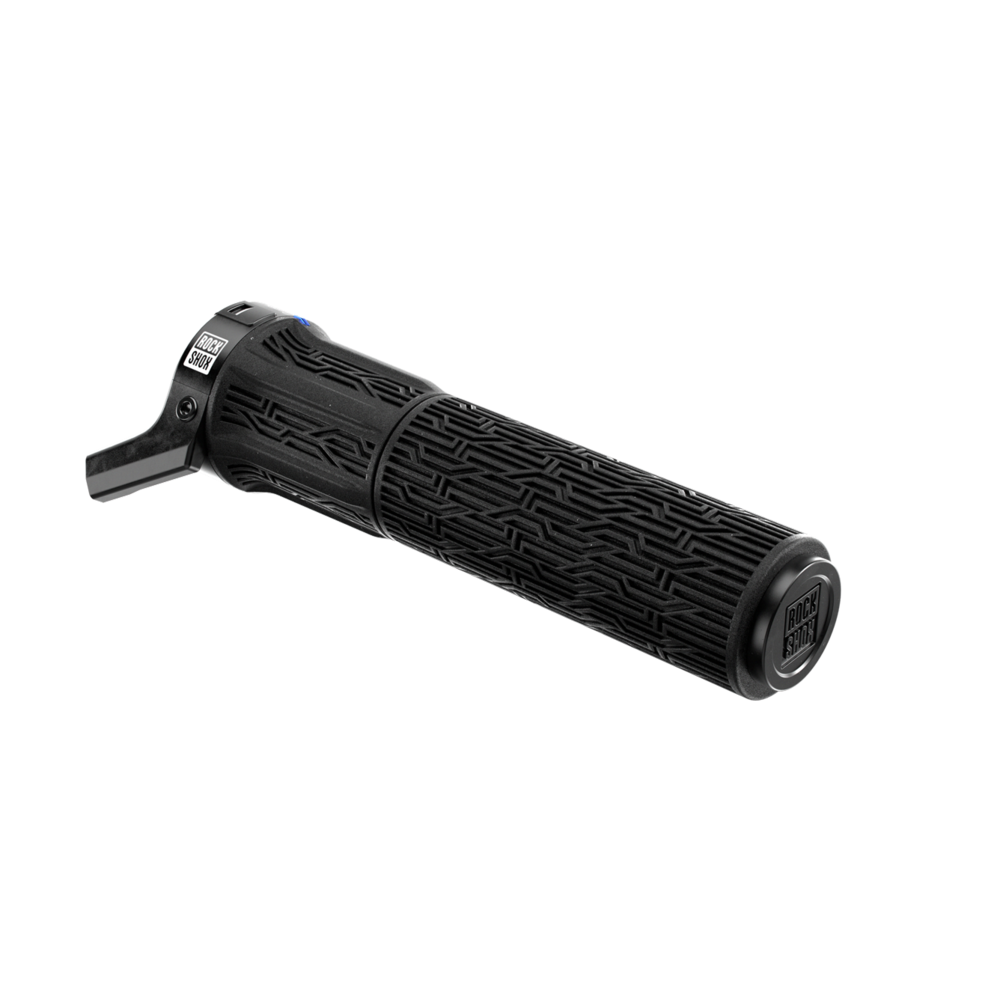

- Remote options available. Choose from TwistLoc Ultimate3P or TwistLoc 3P remotes (sold separately).
- Compatible with previous SID Models.
SPECIFICATIONS
| Upgrade Kit Model | SID |
|---|
