OVERVIEW
Guide T brings the consistent performance that you have come to expect from our lightweight four-piston caliper. Match this with MatchMaker™ for the cleanest looking bar set-up, plus the ease of use with our Bleeding Edge drip-free bleed port and you have a smart budget minded brake that keeps you in control.
FEATURES
- Lightweight 4-piston dual-diameter caliper
- MatchMaker™ compatible
- Connectamajig™ available
- Now featuring the World Championship-winning S4 caliper with Bleeding Edge™ and Heat Shield technologies
SPECIFICATIONS
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum - Stamped |
| Color (DB) | Gloss Black |
| Rec MMX clamp (not included) | n/a |
| Orientation | L/F, R/R |
| Pad type (Disc) | Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Hose length (mm) | 1800mm, 950mm |
| Rotor (AM only) | n/a, not-included |
| Pistons | 4 |
| Piston material | Phenolic Plastic |
| Rotor type recommended | 1-piece CenterLine |
OVERVIEW
Meet the new standard for hard-hitting, heavy-duty braking. We added 15% extra piston power and 30% more volume in the lever reservoir, ensuring peak performance for the full run. And with SwingLink™ and Lever Pivot Bearing technologies, lever feel remains smooth and progressive, no matter how hard the pull. Go deeper and grab more power.
FEATURES
- Designed specifically for heavy-duty demands.
- Pivot bearing offers crisp lever feel and a fatigue-free ride.
- Metallic pads come standard for more power and longer wear.
SPECIFICATIONS
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum - Forged |
| Color (DB) | Black Anodized, Black Anodized w/Rainbow Hardware |
| Rec MMX clamp (not included) | Stainless bolt, blk clmp |
| Orientation | Front, Rear |
| Pad type (Disc) | Steel-backed metal sintered |
| Bracket (Disc Brake) | Direct mount DIR |
| Hose length (mm) | 1800mm, 2000mm, 950mm |
| Rotor (AM only) | n/a |
| Pistons | 4 |
| Piston material | Phenolic Plastic |
| Rotor type recommended | 1-piece CenterLine |
OVERVIEW
We know good value. It comes with practicality. Durability. Sensible design. The Level TLM is that sweet spot — alloy lever blades, DirectLink actuation, DOT 5.1 fluid, and our new two-piston, two-piece caliper — all in a compact, lightweight package. This is the tried-and-true machinery, for all day, never quit performance.
FEATURES
- A modern XC brake for the most demanding rides and races.
- Approachable price for bikes and riders of all levels.
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Diffusion Black Anodized |
| BLADE MATERIAL | Aluminum - Forged |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR |
| REACH ADJUST | Tooled |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bushing |
OVERVIEW
The SRAM Level brake levels the playing field with power and reliability stuffed into a lightweight package. This is a no-nonsense performer, but don't let its understated disposition fool you - Level gives you the art of braking in minimalist form.
FEATURES
- Same proven lever technologies as Guide-piston, seals, reservoir and bladder
- Compact lever body with DirectLink™
TECHNOLOGY
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Black |
| BLADE MATERIAL | Aluminum - Stamped |
| ORIENTATION | L/F, R/R |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I |
| REACH ADJUST | Tooled |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 4 |
| LEVER PIVOT | Bushing |
| WEIGHT (G) | 430 |
| WEIGHT BASED ON | Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET) |
DESCRIPTION
DB8 is our simple, robust, and powerful brake for riders who prefer to set and forget. The low maintenance Mineral Oil system uses proven lever technologies and features easy adjustment access and superior ergonomic comfort. Code-like power is no surprise, as DB8 utilizes similar caliper architecture and existing brake pads.
FEATURES
- New lever optimized for tool access.
- Code-like power.
- Uses existing Code pads.
- Designed for use with Maxima Mineral Oil only.
- Designed for use with SRAM Mineral Oil Bleed Kit only.
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Diffusion Black |
| BLADE MATERIAL | Aluminum - Stamped |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR |
| REACH ADJUST | Tooled |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | SRAM Mineral Oil |
| LEVER PIVOT | Bushing |
Wireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? While we could have stopped there, we went further and optimized the hood shape to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands.
FEATURES
- AXS enabled for easy personalization
- Wireless electronic eTap shift logic for intuitive shifting, easy setup and reliability
- Optimized hood shape fits a wider range of hand sizes
- Textured shift paddles and hoods for control and comfort
- Reach Adjust to personalize fit for more hand sizes
SPECIFICATIONS
| LEVER ORIENTATION | Left, Right |
|---|---|
| BRAKE ORIENTATION | Front, Rear |
| COMPAT - DERAILLEUR (HYD) | AXS |
| BRAKE LEVER MATERIAL | LFRT |
| SHIFT LEVER MATERIAL | Plastic |
| COLOR - CALIPER | Black |
| PAD TYPE (DISC) | Steel-backed organic |
Post Bracket - 20mm (Includes Bracket & Stainless Bolts) - Standard Mount
Washers and bolts included.
- High performance alloy rim brake pads for SRAM/Shimano road brake calipers by SwissStop
- 12x T25 disc brakes rotor titanium bolts

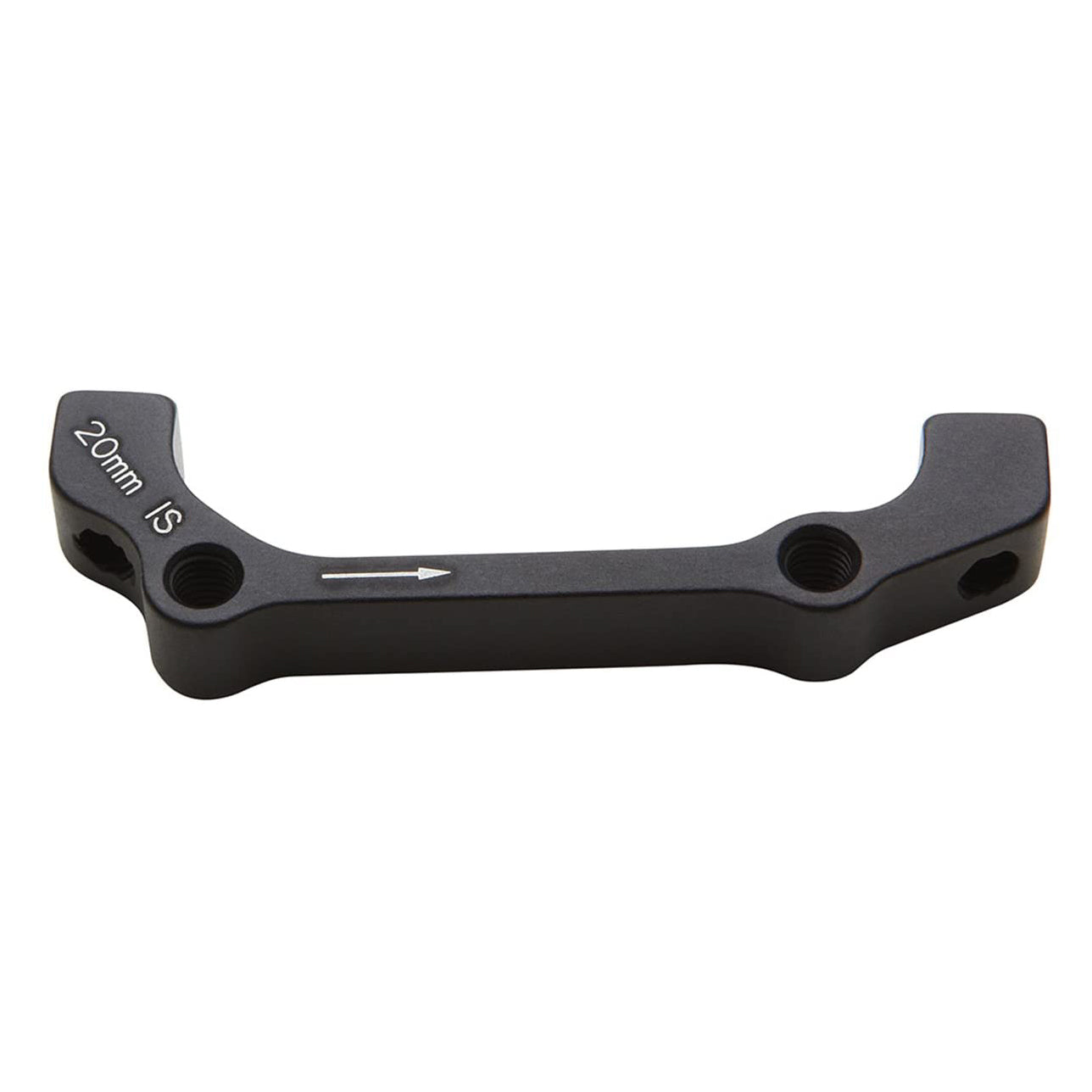

IS Bracket - 20mm (Includes Bracket & Stainless Bolts) - Standard Mount
Washers and bolts included.

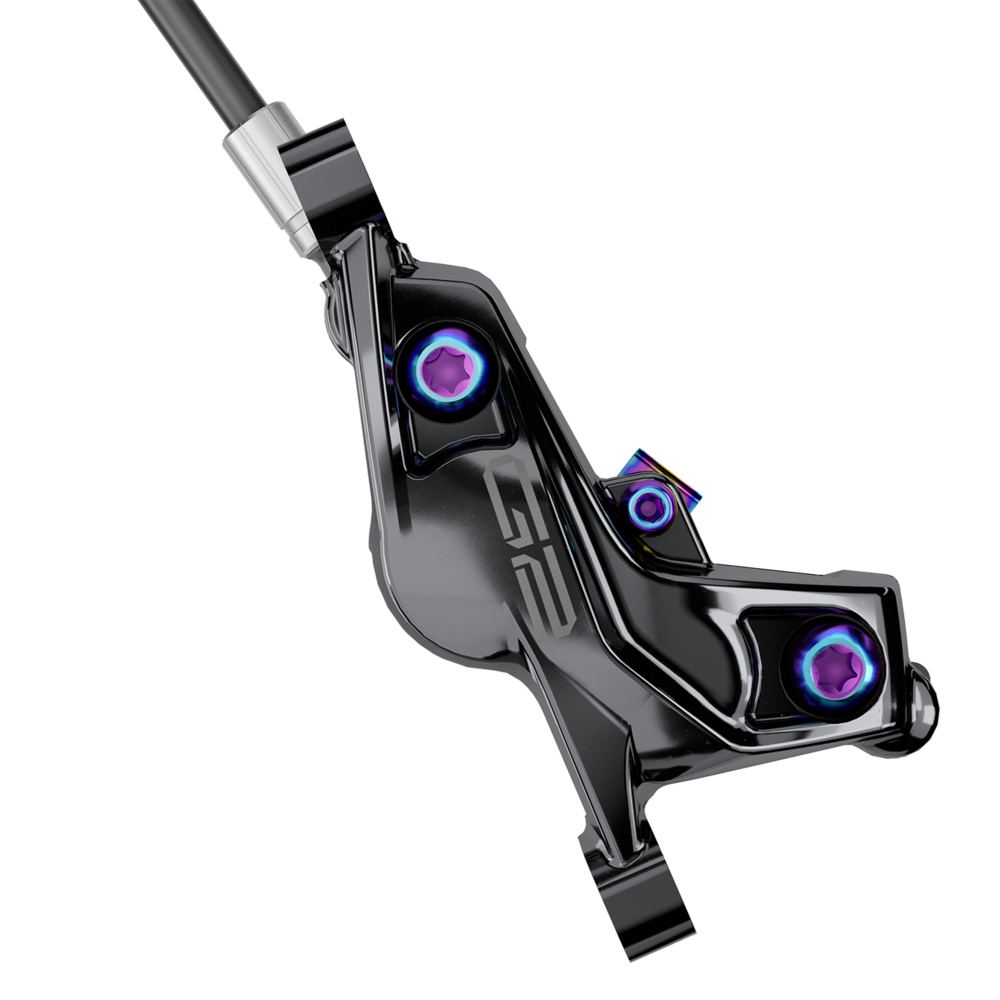

OVERVIEW

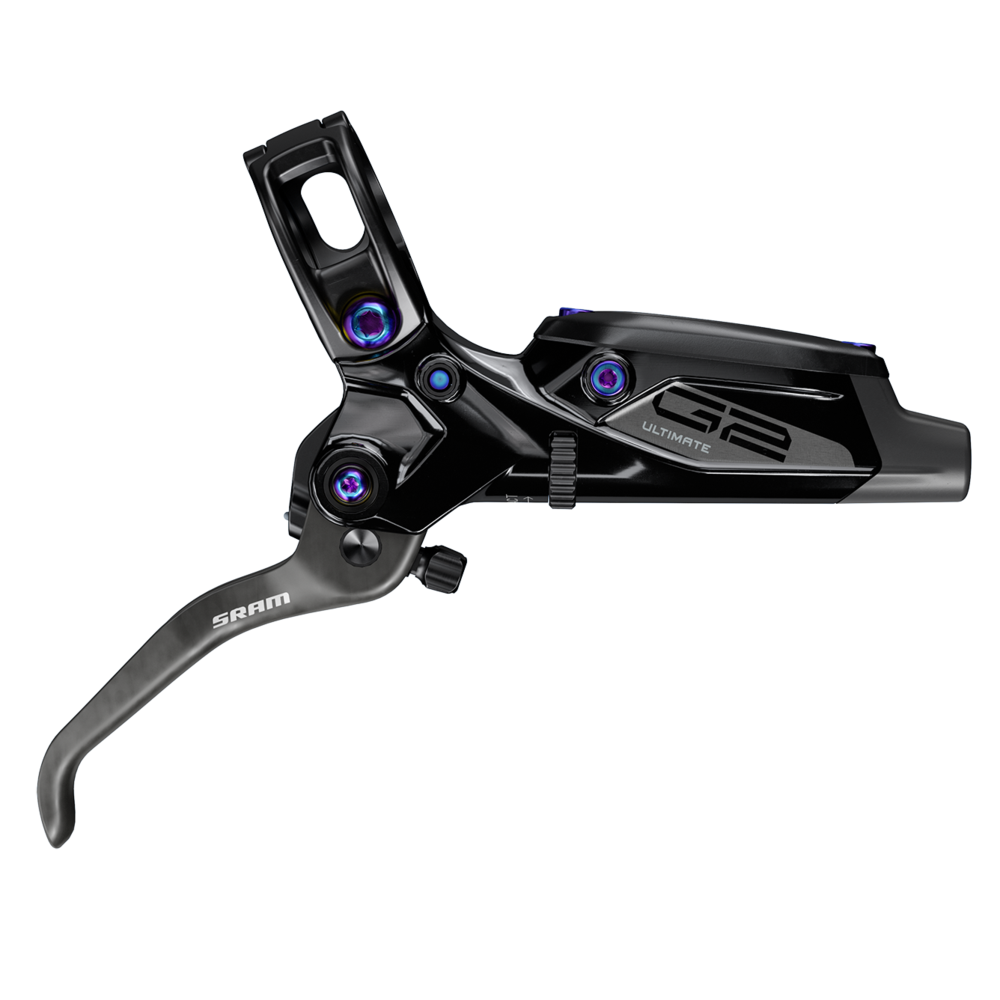

For the Ultimate, we held nothing back. Our engineers sculpted the finest materials - titanium and carbon fiber - to make this our lightest four-piston brake ever. Power, modulation and lever feel set a new standard. Personalization is quick and intuitive. And for performance - well, our test riders didn't dub it the "Mini-Code" for nothing.
FEATURES
- More caliper stiffness and a new pad compound with bite.
- Pivot bearings for crisp lever feel and a fatigue-free ride.
- SRAM's best power to weight ratio in a four-piston brake.
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Gloss Black, Gloss Black w/Rainbow Hardware, Polar Grey Anodized |
| BLADE MATERIAL | Carbon |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR, Intl Std(180mm Rear,200mm Frt rotor) 40I |
| REACH ADJUST | Tool-free |
| CONTACT ADJUST | Yes |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bearing |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |

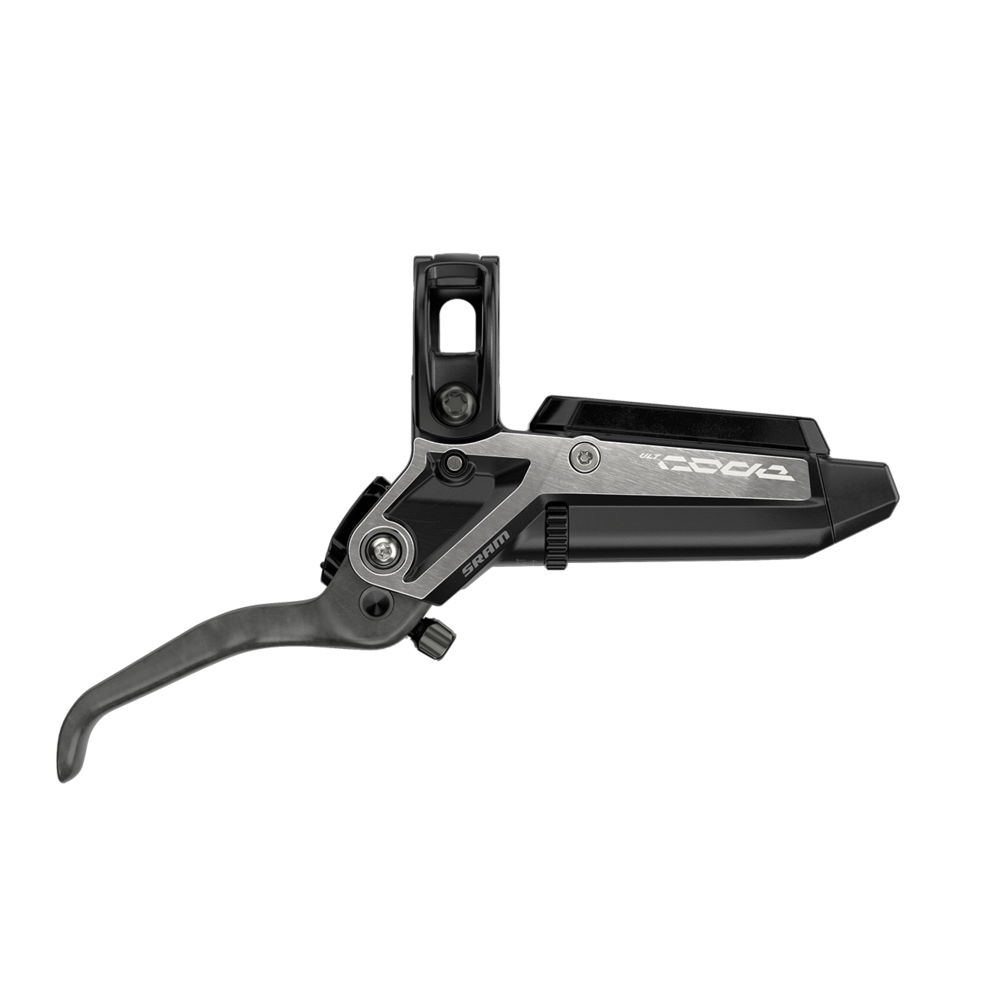

OVERVIEW

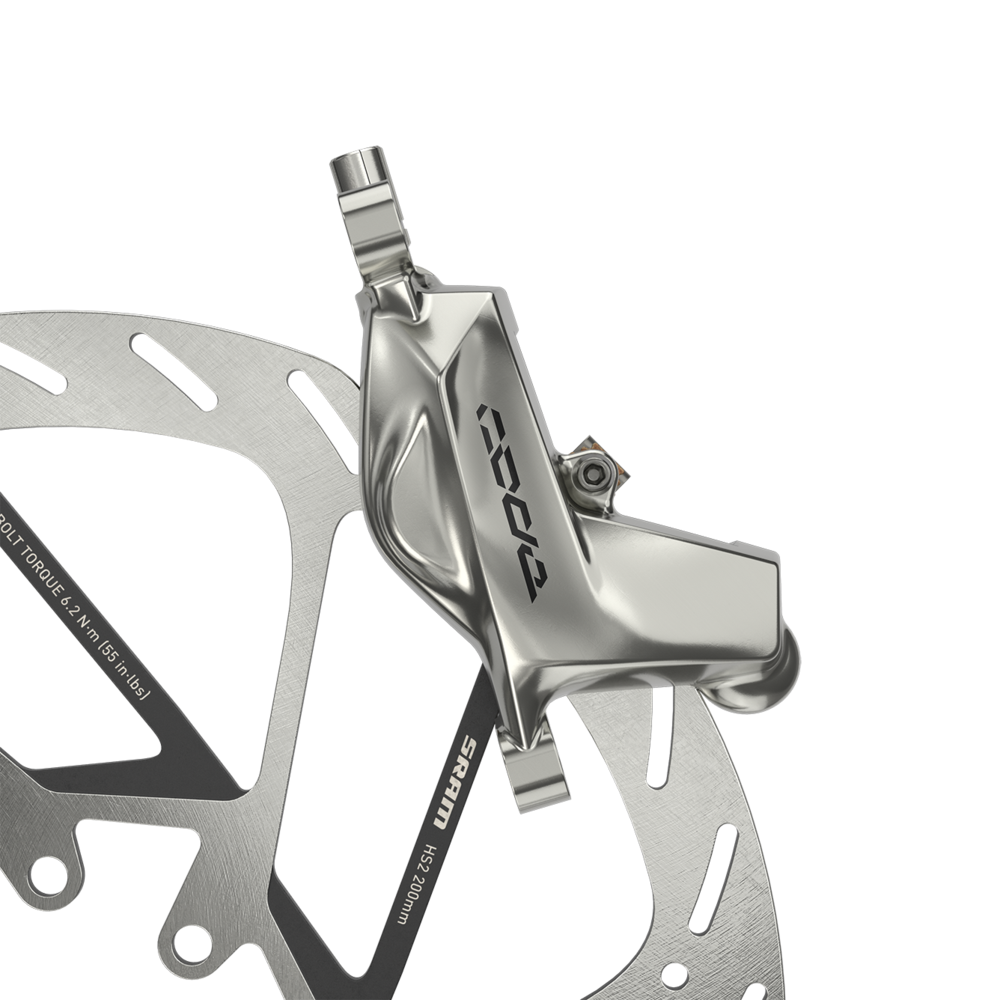

For the first time ever, our legendary Code brake now wears the Ultimate crown. The full-powered stopper features a new technology to improve your cockpit aesthetic: Stealth. The all-new lever body design brings the hose closer to the bar, allowing for a sleeker, more modern ride. The proven internals remain the same, with SwingLink driving our signature feel. And for unrivaled ease of customization, Code Ultimate features tool-free Reach and Contact Point Adjust. To top it all off, a carbon blade joins our Lever Pivot Bearing technologies, so feel will remain smooth. Our best just got better.
FEATURES
- Stealth body design to complement our AXS cockpit
- Designed for the most heavy-duty braking needs
- Metallic pads come standard for more power and longer wear
- Our most powerful brake, utilizing our SwingLink and Lever Pivot Bearing for a fatigue-free ride
SPECIFICATIONS
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Black Anodized |
| BLADE MATERIAL | Carbon |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed metal sintered |
| BRACKET (DISC BRAKE) | Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P |
| REACH ADJUST | Tool-free |
| CONTACT ADJUST | Yes |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bearing |
| WEIGHT (G) | 309 |
| WEIGHT BASED ON | Based on Rear, SJ, DIR, 1800mm, w/ pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |

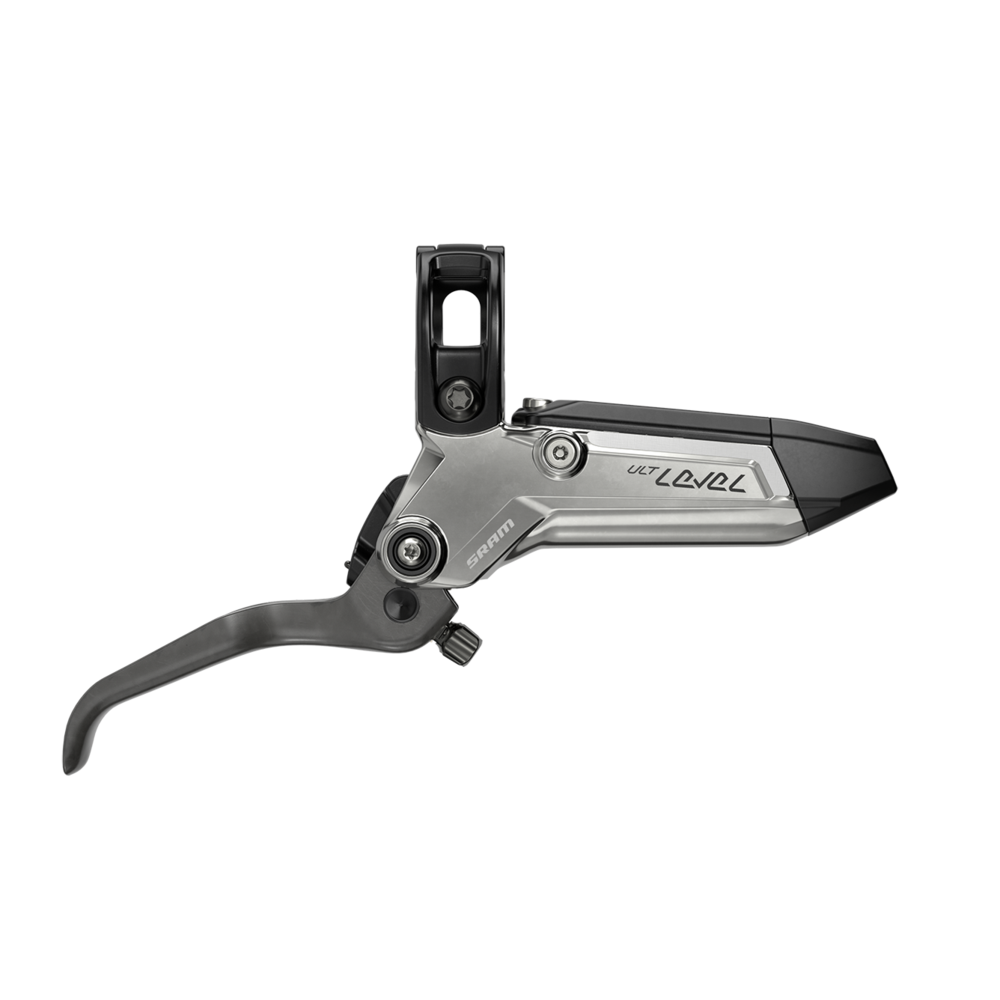

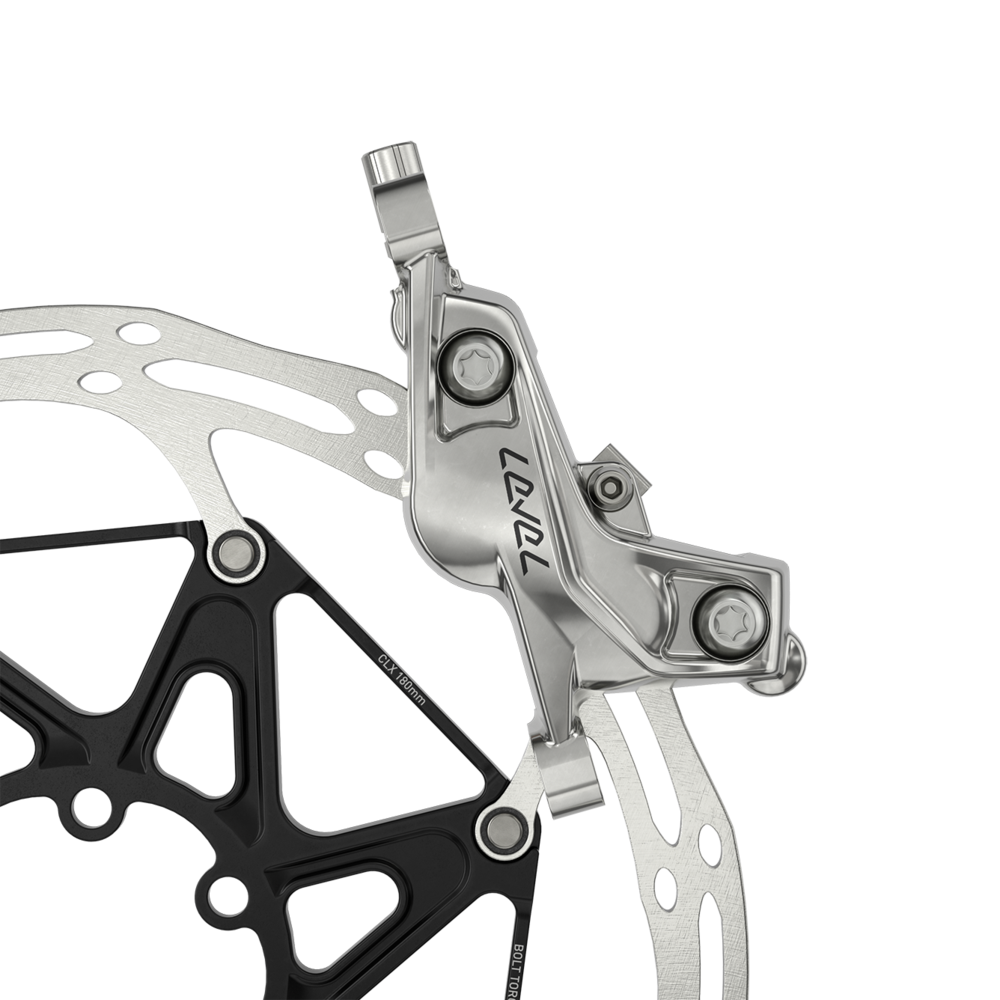

OVERVIEW
Level Ultimate Stealth 4-Piston combines our new top tier Level Ultimate Stealth lever with a 4-piston caliper to provide superior power to weight performance. Featuring trail ready stopping power in an XC race weight class, Level features a new lever design purpose made to create a clean, fast looking cockpit.
FEATURES
- Stealth body designed to complement our AXS cockpits
- Trail ready power in a modern XC package, for tomorrow’s races
- Tool-free reach adjust for easy customization
SPECIFICATIONS
Model ID: DB-LVL-ULT4-C1
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Clear Anodized |
| BLADE MATERIAL | Carbon |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR |
| REACH ADJUST | Tool-free |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bearing |
| WEIGHT (G) | 245 |
| WEIGHT BASED ON | Based on Rear, SJ, DIR, 1800mm, w/ pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |

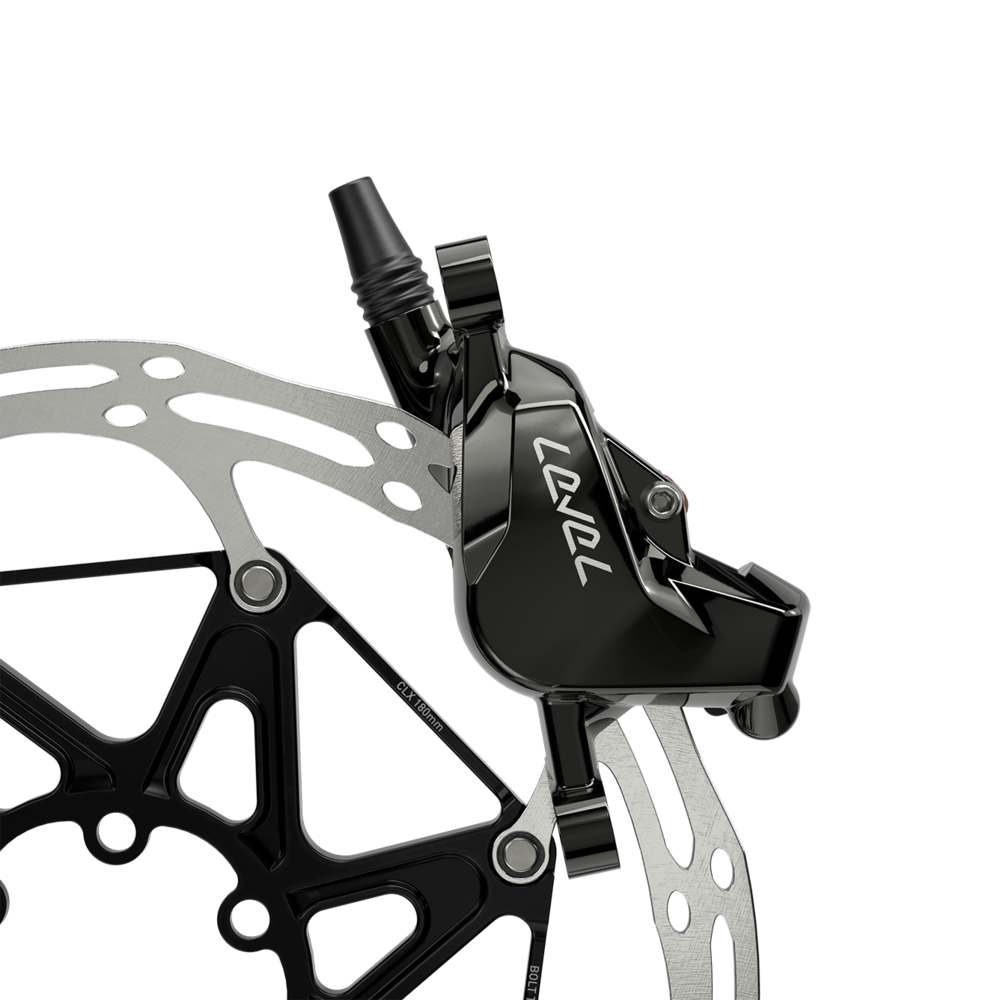

OVERVIEW

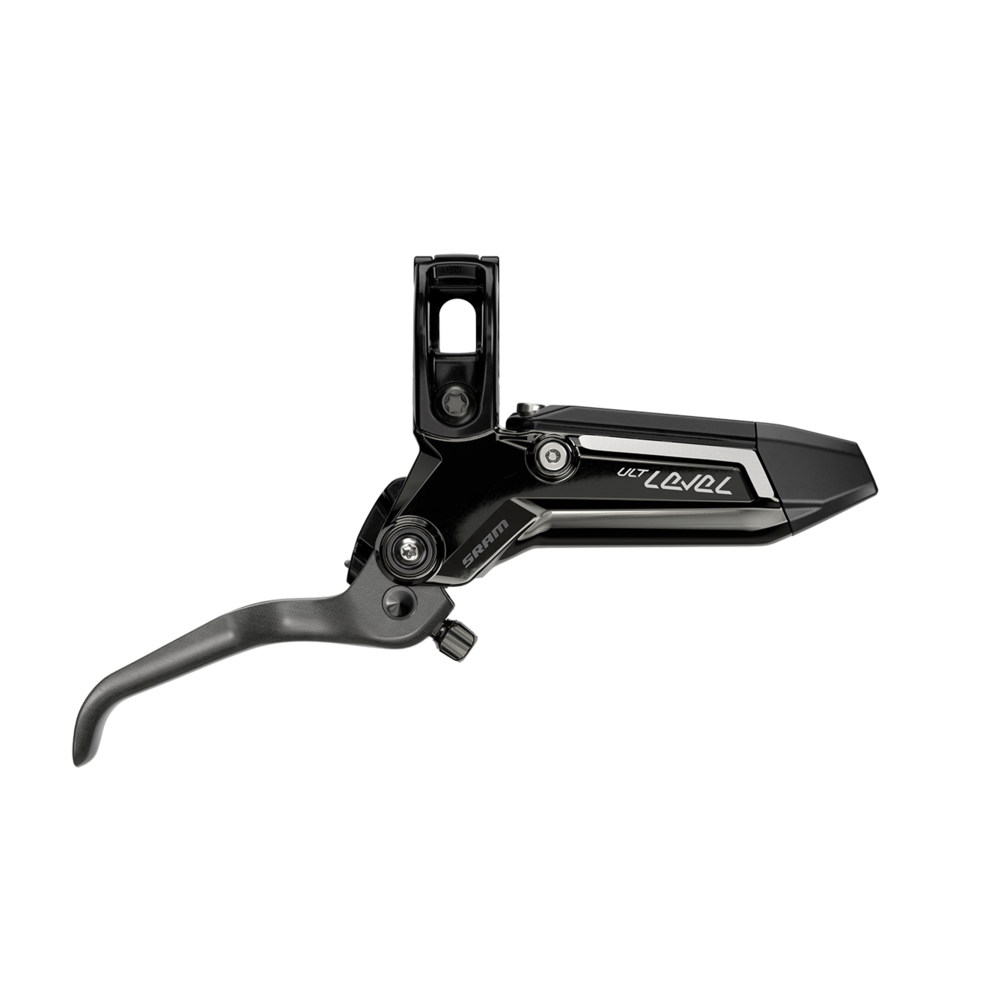

Level Ultimate Stealth combines our top tier Level Ultimate with our new stealth body to provide you with one of the lightest, sleekest brakes in the market. Featuring the power to weight performance that you expect from Level with a new lever design purpose made to create a clean, fast looking cockpit.
FEATURES
- Stealth body designed to complement our AXS cockpits
- Modern XC power for today’s most demanding races
- Tool-free reach adjust for easy customization
SPECIFICATIONS
Model ID: DB-LVL-ULT2-C1
| APPLICATION (DB) | MTB |
|---|---|
| BRAKE TYPE | Hydraulic |
| COLOR (DB) | Gloss Black Anodized |
| BLADE MATERIAL | Carbon |
| ORIENTATION | Front, Rear |
| PAD TYPE (DISC) | Steel-backed organic |
| BRACKET (DISC BRAKE) | Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P |
| REACH ADJUST | Tool-free |
| CONTACT ADJUST | No |
| HYDRAULIC FLUID | DOT 5.1 |
| LEVER PIVOT | Bearing |
| WEIGHT (G) | 254 |
| WEIGHT BASED ON | Based on Rear, SJ, DIR, 1800mm, w/ pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |

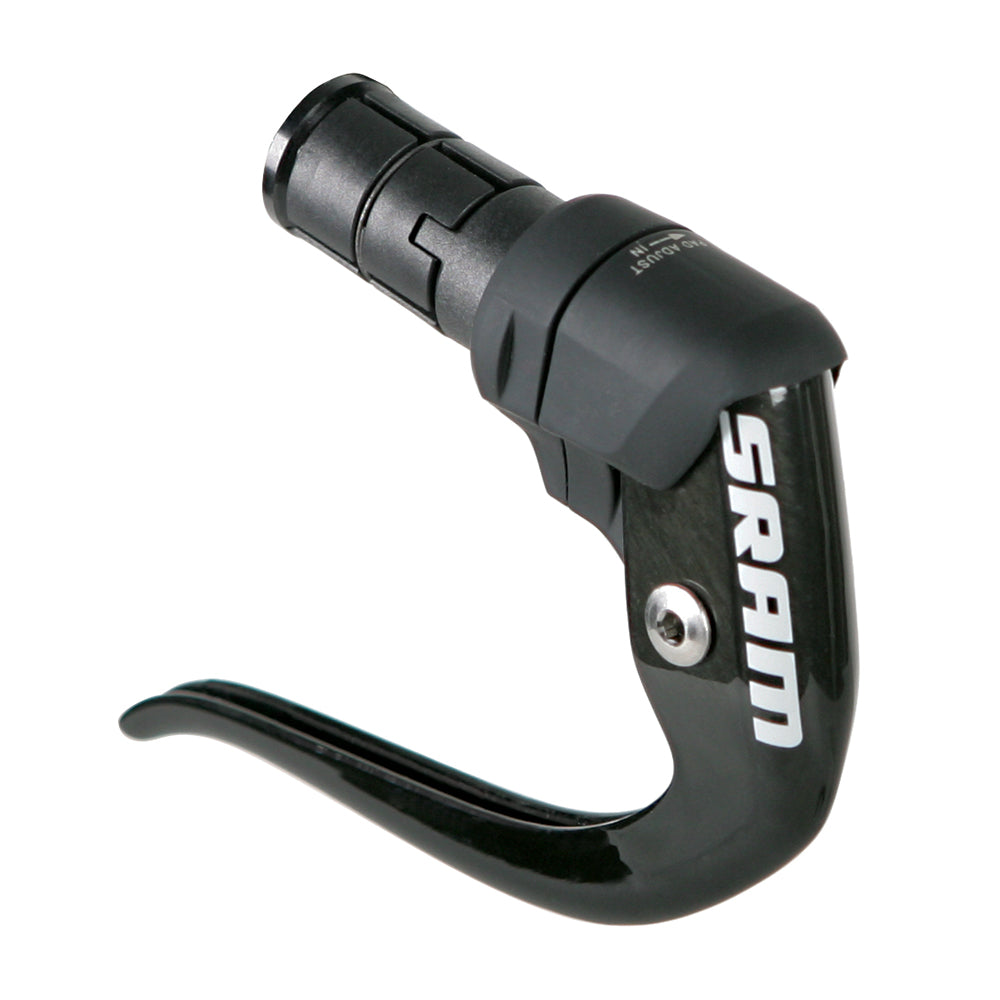

DESCRIPTION
The S-990 aero brake lever is more than just a lightweight, aerodynamic, and powerful carbon aero brake lever. What makes it truly outstanding is its built-in adjustment feature. A simple turn of a 2mm Allen key frees the lever to spin, allowing the user to make up to 8mm of inward or outward adjustment to their brake calipers. Such wide adjustability makes it easy to fine-tune hard to reach brakes on the most innovative aero triathlon and time trial machines, which feature integrated aero brake systems that require time and tools to access.
FEATURES
- Lightweight with carbon lever
- Innovative cable adjustment for easy brake tuning
- Compatible with SRAM RED®, Force, Rival, and Apex mechanical brakesets
SPECIFICATIONS
Model ID: BL-990-AERO-A1
| ORIENTATION | Pair |
|---|---|
| COLOR - LEVER (BL) | Carbon |
| COLOR - HOOD COVER (BL) | Black |
| HARDWARE | Stainless Steel |
| REACH ADJUSTER | No |
| REVERSIBLE | Yes |
| WEIGHT BASED ON | pair |
