OVERVIEW
Modern mountain bikes have redefined what riders are capable of, pushing the requirements for heavy-duty power further than ever before. Maven Ultimate is our answer to that evolution, with monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. Maven is the expert, but Maven Ultimate is the pinnacle.
FEATURES
- 18 and 19.5-millimeter pistons for best-in-class power.
- Swinglink for signature SRAM lever feel.
- Stiff 4-piston caliper with best heat management and easier bolt access.
- Organic pads come standard for the best modulation and the quietest ride.
- Stealth lever architecture for a sleeker, more modern ride.
- Mineral Oil for low maintenance and performance.
- Designed for use with Maxima Mineral Brake Oil only.
- Ultimate worthy polished Lever body and Titanium hardware.
- Contact Point Adjust and tool-free Reach Adjust.
SPECIFICATIONS
Model ID: DB-MVN-ULT-A1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum |
| Color (DB) | Clear Anodized, Red |
| Rec MMX clamp (not included) | MMX clamp, black, stainless |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Hose length (mm) | 2000mm, 950mm |
| Rotor (AM only) | n/a |
| Pistons | 4 |
| Piston material | Phenolic Plastic |
| Rotor type recommended | 1-piece HS2 |
| Clamp Included (DB) | Yes – MMX Clamp |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |
| Weight (g) | 362 |
SPECIFICATIONS

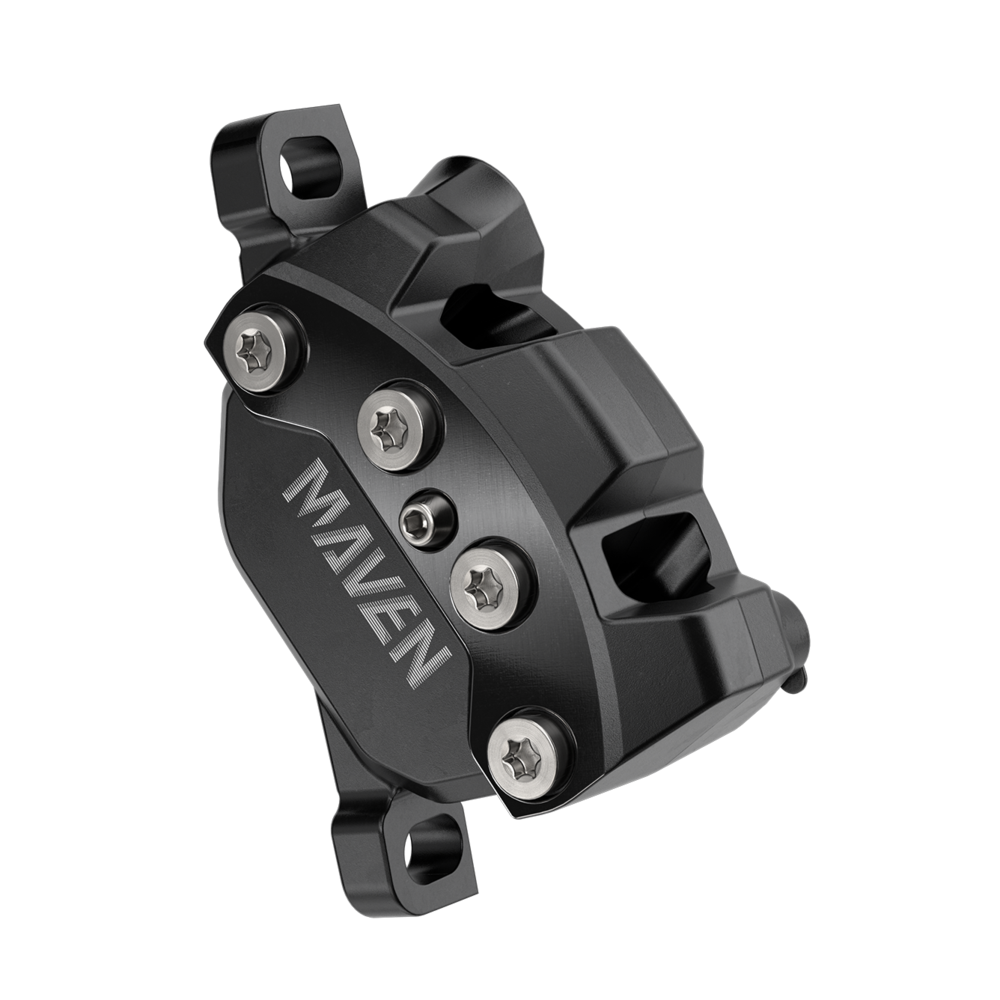

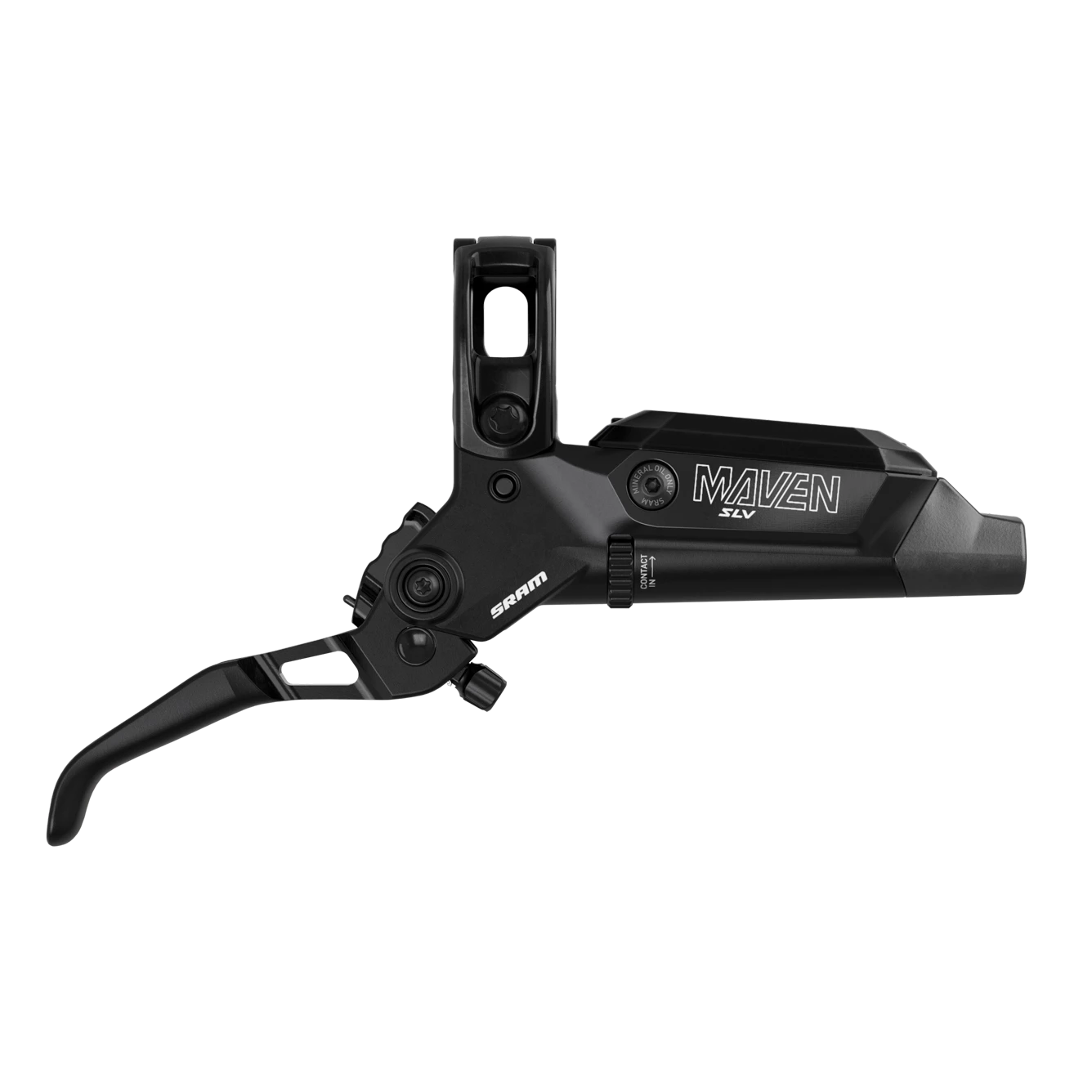

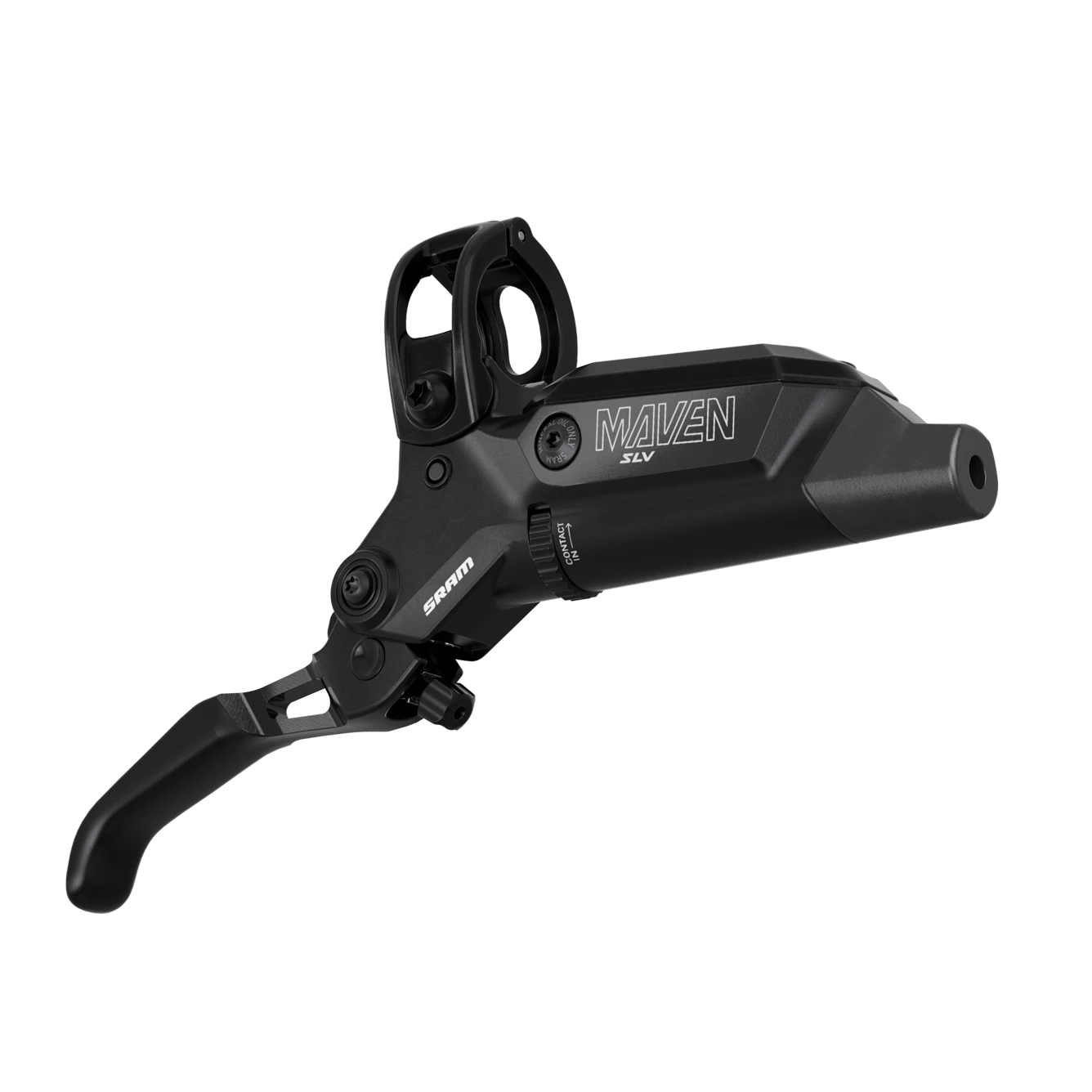

Maven is the benchmark of power for modern riders, providing them with the boundless power of confidence and commitment. With extreme power for elevated speed and control on ever-more demanding terrain, Maven gives riders the power to push boundaries everywhere they ride. Maximum control begins at the lever, where Maven Ultimate features a SwingLink architecture tuned for smooth power delivery, enhancing modulation and reducing hand fatigue. The stiff 4-bolt caliper manages an incredible amount of heat which keeps the power consistent, so the last corner feels like the first corner. And with so much baseline power on hand, there is more range than ever before to tune the ride qualities exactly how you want with different pad materials, and rotor sizes. Maven Silver features a bold black anodized finish with black hardware. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust.
FEATURES
- Re-designed SwingLink architecture for more predictable power delivery and lighter engagement for a broader range of ergonomic preferences
- 18-millimeter pistons for best-in-class power
- Easily tuneable across Gravity, E-MTB, Enduro and Trail bikes
- Stiff 4-piston caliper with best heat management
- Stealth lever architecture for a sleeker, more modern ride
- Mineral Oil for low maintenance and performance
- Designed for use with Maxima Mineral Brake Oil only
- Bold black anodized finish with black hardware for stealth builds
- A new lightweight forged lever blade with machined cut-outs
- Contact Point Adjust and tool-free Reach Adjust
SPECIFICATIONS
Model ID: DB-MVN-SLV-B1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Aluminum - CNC Forged |
| Contact adjust | Yes |
| Color (DB) | Gloss Black Anodized |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed metal sintered, Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Reach adjust | Tool-free |
| Hydraulic fluid | SRAM Mineral Oil |
| Lever pivot | Bearing |
| Material (Back plate/pad compound) | Experience |
| Steel/Organic Black | Quiet, Stronger when dry |
| Aluminum/Organic | Quiet, Lightweight, Stronger when dry |
| Steel/Sintered | Heavy Duty, Stronger when wet |
SPECIFICATIONS

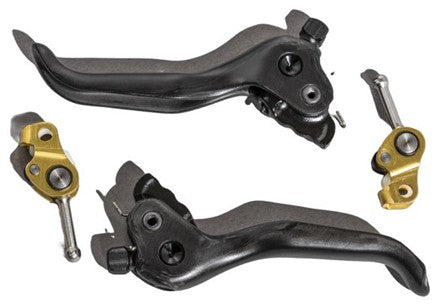

Maven is the benchmark of power, providing riders with the boundless power of confidence and commitment. Maven Lever Tuning Kits provide them with next generation SwingLink architecture which delivers a more linear power delivery for maximum control, and a lighter lever feel for ergonomic comfort. Premium blade materials refine key touchpoints, and the included tool makes installation simple and DIY-friendly.
FEATURES
- Re-designed SwingLink architecture for more predictable power delivery and lighter engagement for a broader range of ergonomic preferences
- Ultimate and Silver kits include Torx T10 screwdriver
- Maven Silver kit includes forged and CNC’d lever blade and is compatible with Maven Ultimate and Silver A1 lever bodies
SPECIFICATIONS
Model ID: DB-UPK-LVR-A1
| Upgrade Kit Model | Maven |
|---|
SPECIFICATIONS

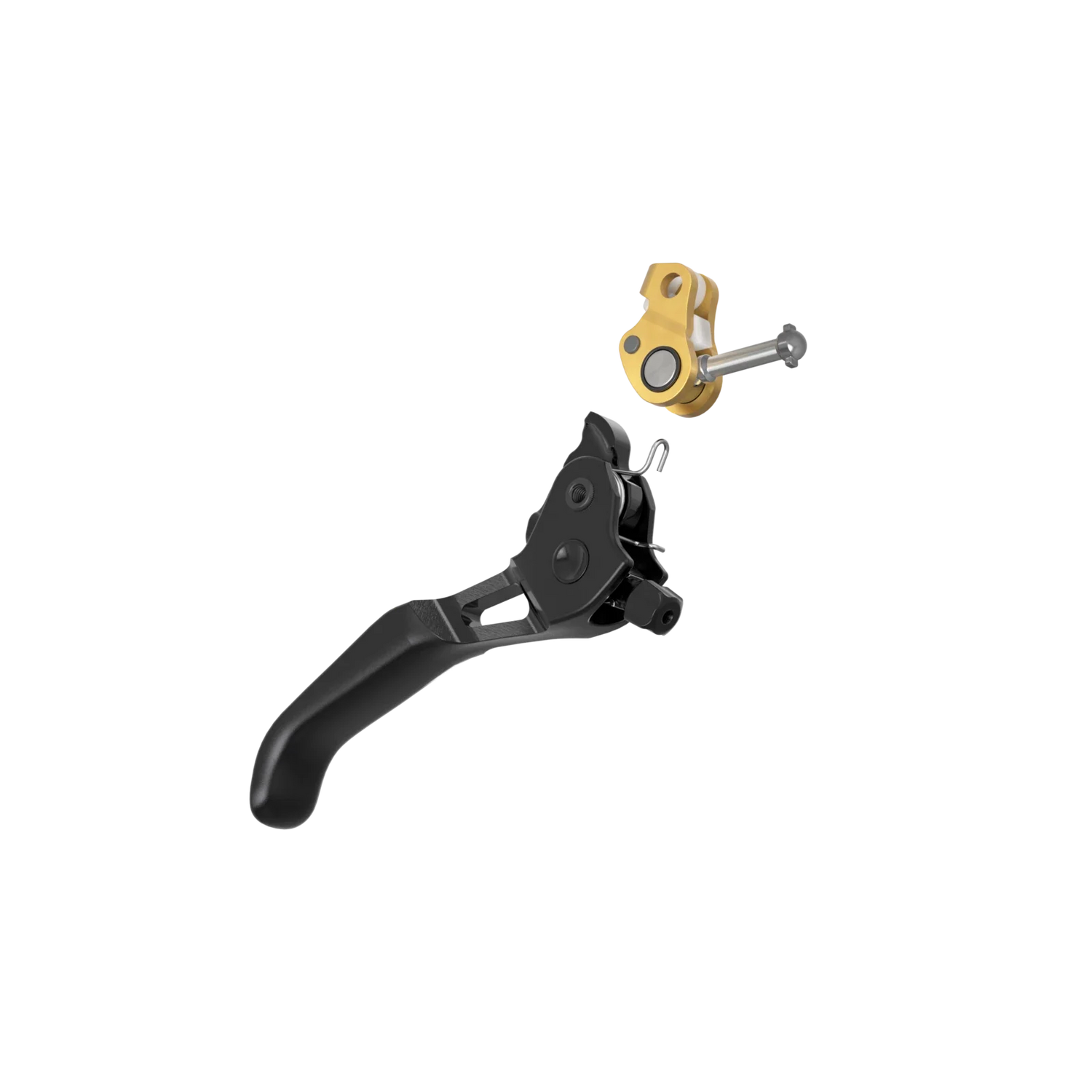

Maven is the benchmark of power, providing riders with the boundless power of confidence and commitment. Maven Lever Tuning Kits provide them with next generation SwingLink architecture which delivers a more linear power delivery for maximum control, and a lighter lever feel for ergonomic comfort. Premium blade materials refine key touchpoints, and the included tool makes installation simple and DIY-friendly.
FEATURES
- Re-designed SwingLink architecture for more predictable power delivery and lighter engagement for a broader range of ergonomic preferences
- Ultimate and Silver kits include Torx T10 screwdriver
- Maven Silver kit includes forged and CNC’d lever blade and is compatible with Maven Ultimate and Silver A1 lever bodies
SPECIFICATIONS
Model ID: DB-UPK-LVR-A1
| Upgrade Kit Model | Maven |
|---|
DESCRIPTION

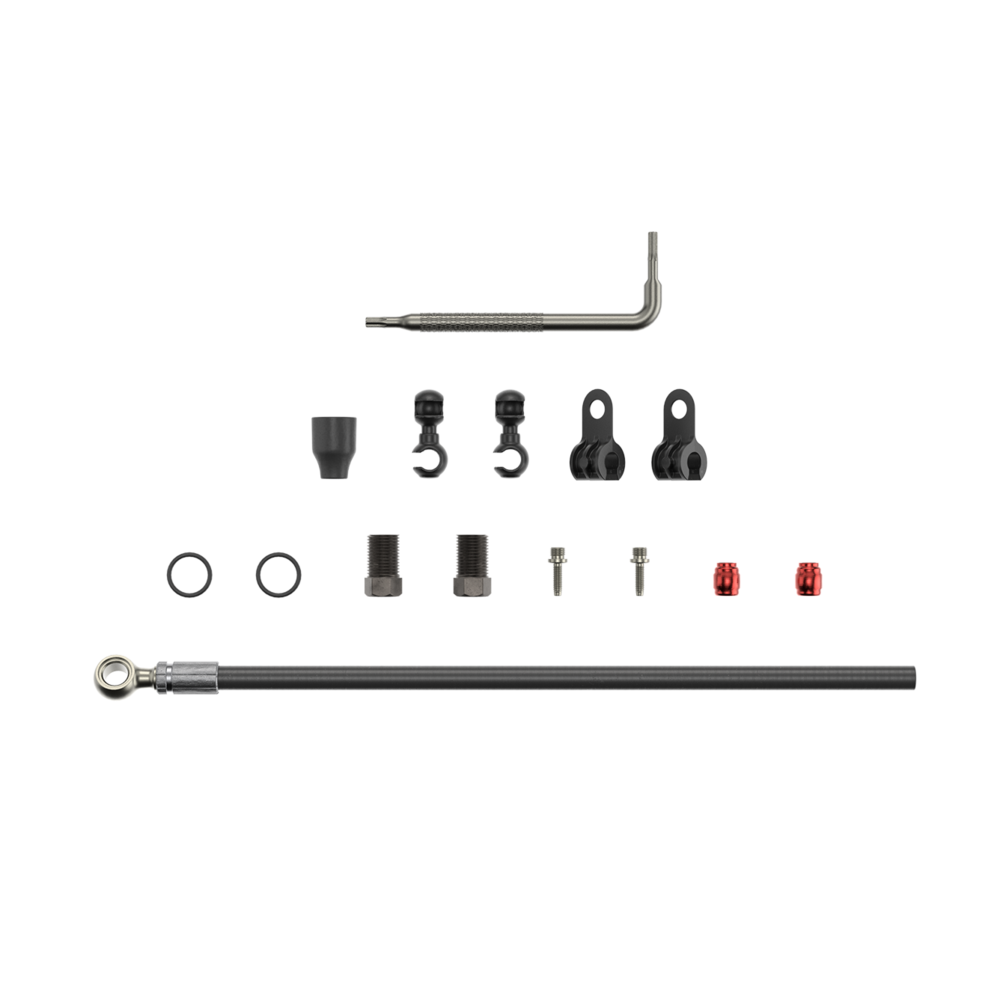

The Silver Banjo Hydraulic Brake Hose Kit fits SRAM mountain bike brakes that feature a silver banjo fitting at the caliper. The hydraulic line kit includes all replacement parts.
SPECIFICATIONS
- Part Number: 00.5318.038.000
- Compatible Hydraulic Brake Fluids: DOT 4 or 5.1
- Applicable Brakes: XX, Juicy Ultimate, Juicy 7, Juicy 5, Guide Ultimate (B1), Guide RSC (B1), Guide RS (B1), Guide R (B1), Guide T (A1), G2 Ultimate, G2 RSC and Level 4P Ultimate & Silver.
- Parts included in the kit: The specific brake line (2-metres long) and necessary seals, 2x short (road) compression nuts, 2x long (MTB) compression nuts, 2x SRAM Barb, 2x SRAM Olive, Caliper compression nut boot, 2x external cable holders, 2x stem mounted cable holders, T8 Torx key for barb installation.
- Can't locate a Double Compression kit? Fear not, any SRAM Hydraulic Brake Hose kit can be substituted once the respective Banjos have been removed

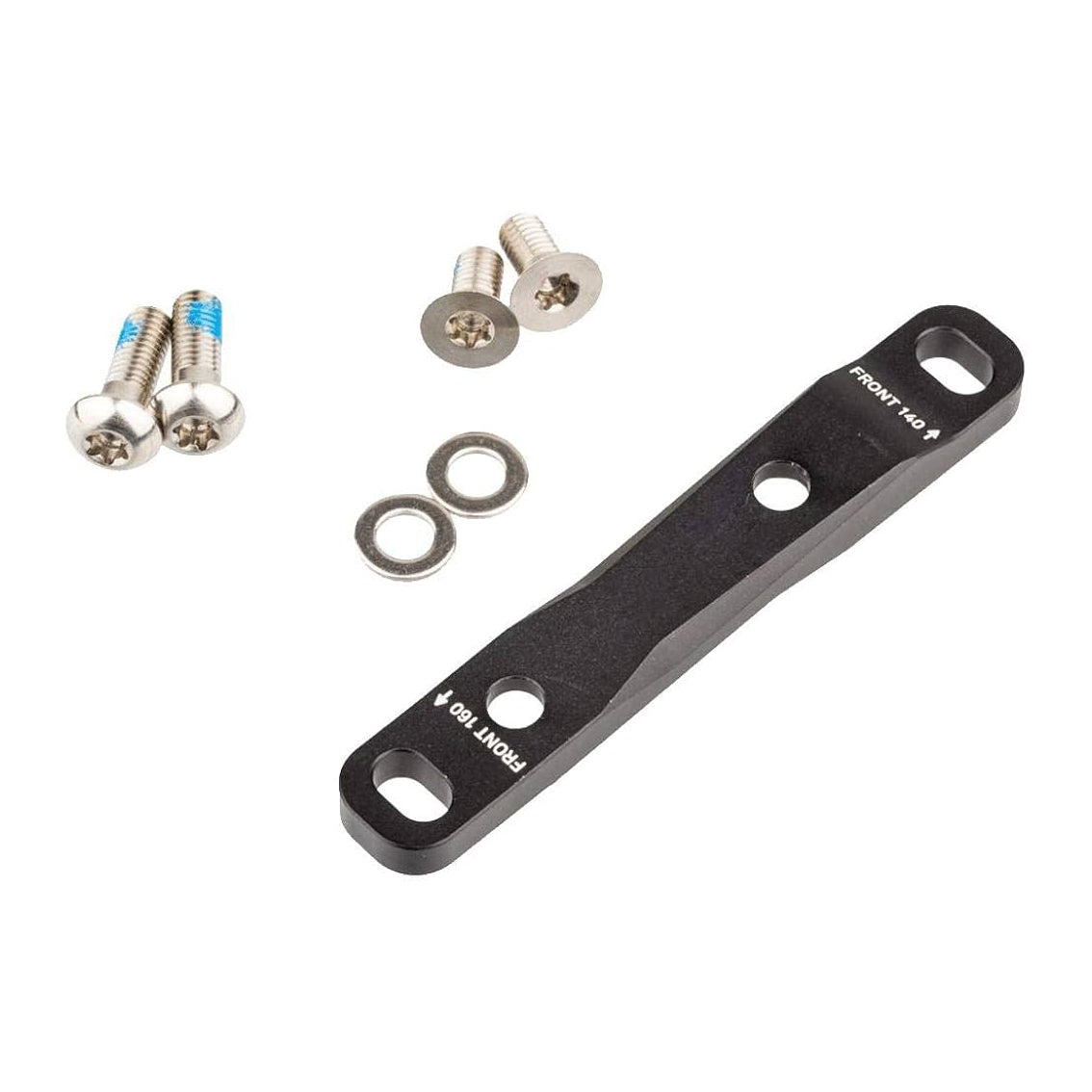

Flat Mount Bracket Front - 0F/20F (Front 140/Front 160), Includes 2 Stainless Bracket & Caliper Mounting Bolts
The SRAM CenterLine XR (CLX-R) rotor works in tandem with the SRAM eTap AXS™ drivetrain. It's designed specifically for road riding - and to keep braking quiet at every stop.
FEATURES
- Streamlined form optimized for road use
- CenterLine track offers quiet brake operation
- Two-piece design reduces weight
SPECIFICATIONS
| DIAM (ROTOR) | 140mm, 160mm |
|---|---|
| COLOR (RT) | n/a |
| BOLT MATERIAL (RT) | n/a, Steel |
| HUB INTERFACE | 6-bolt, Center Lock |
| ROTOR TYPE | Centerline 2-Piece |
| REC LOCKRING | Lockring sold separately, n/a |
DESCRIPTION

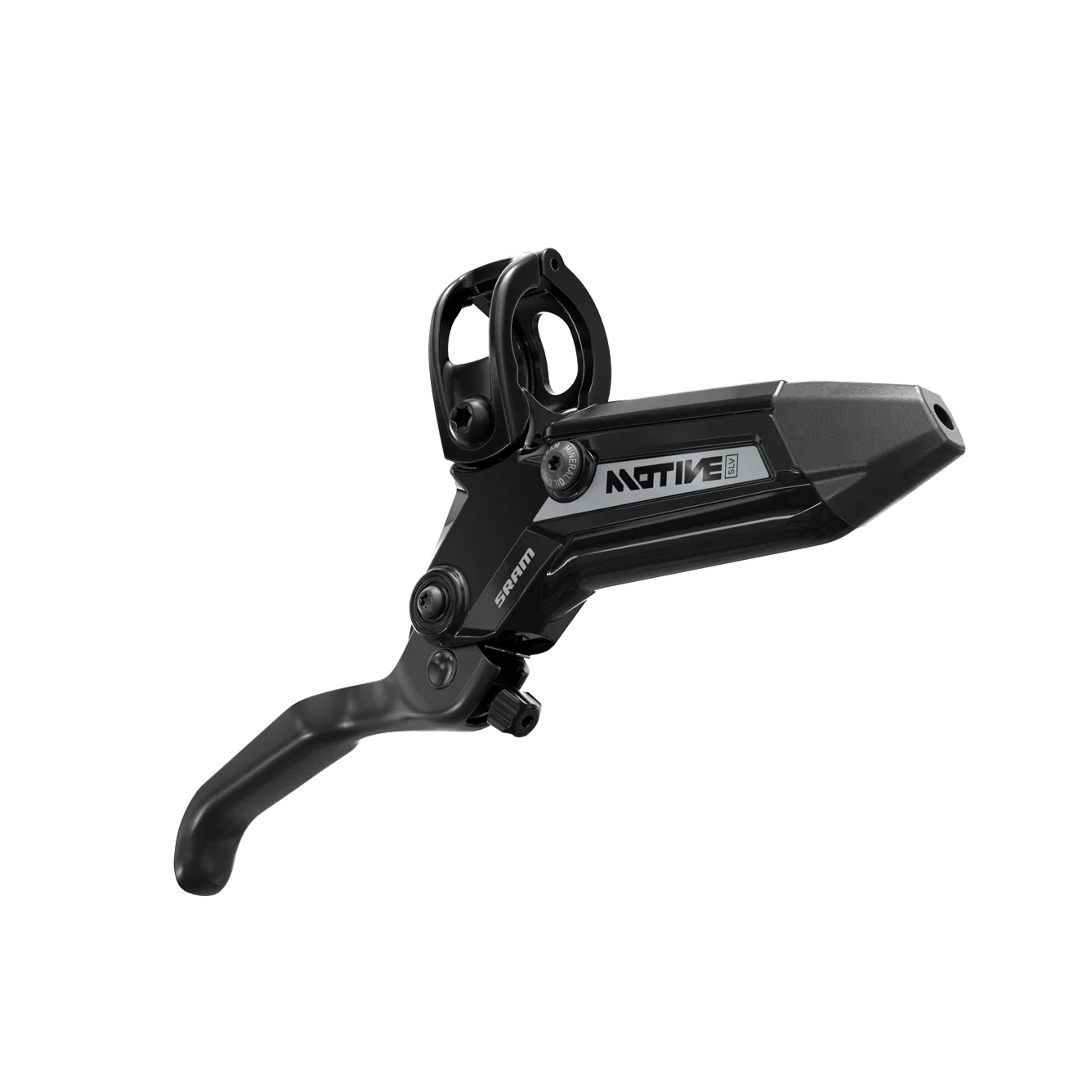

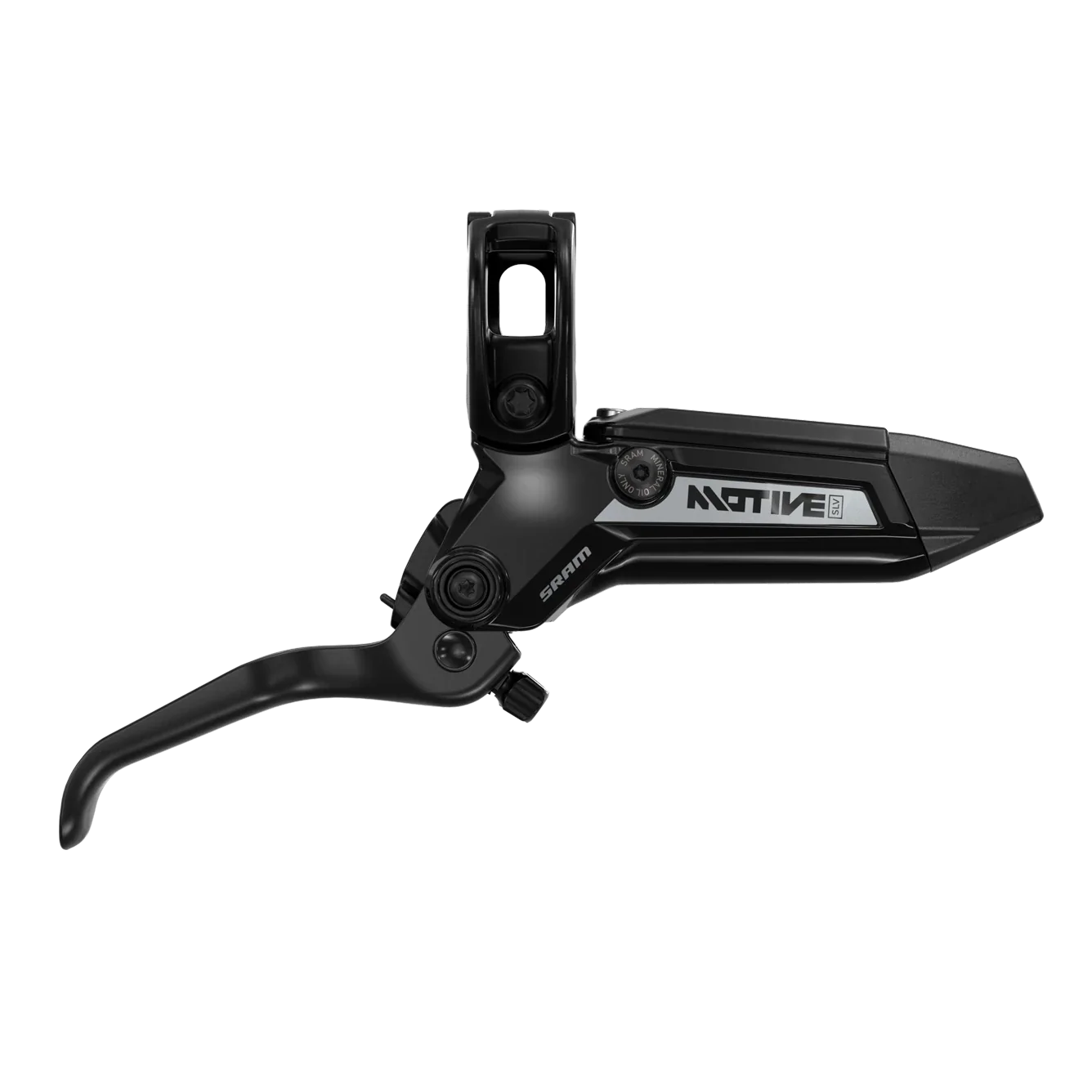

Born from the legacy of two of the winningest brakes of all-time, SRAM Motive Ultimate matches the capabilities of modern XC-race and trail bikes. Modern stealth aesthetics pair with wireless superbikes, while titanium hardware, a signature carbon lever, and a slick finish put Ultimate on top. A sculpted 4-piston caliper delivers tunable heavy-duty power for traction and control. Opening the aperture on what’s possible, giving you the boundless power of more confidence, and in the process redefining what’s required from a low-weight brake. Motive. New powers to go ahead.
FEATURES
- Stealth body designed to complement AXS cockpits
- Heavy-duty power in a modern XC package, for today’s races
- Tool-free reach adjust for easy customization
- Titanium hardware and carbon lever blade with bearing pivot.
- Ultimate worthy Blasted Clear anodized finish with polished machined edges.
- Designed for use with Maxima Mineral Oil only.
- Designed for use with SRAM Mineral Oil Bleed Kit only.
- Caliper features Bleeding Edge bleed port for drip-free maintenance
SPECIFICATIONS
Model ID: DB-MOTV-ULT-A1
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Blade material | Carbon |
| Contact adjust | No |
| Color (DB) | Clear Anodized |
| Orientation | Front, n/a, Rear |
| Pad type (Disc) | Steel-backed metal sintered, Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR |
| Reach adjust | Tooled, Tool-free |
| Hydraulic fluid | SRAM Mineral Oil |
| Lever pivot | Bearing |
| Weight (g) | 265 |
| Weight Based On | Rear, Stealth-a-majig, DIR, 1800mm, w/pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts) |

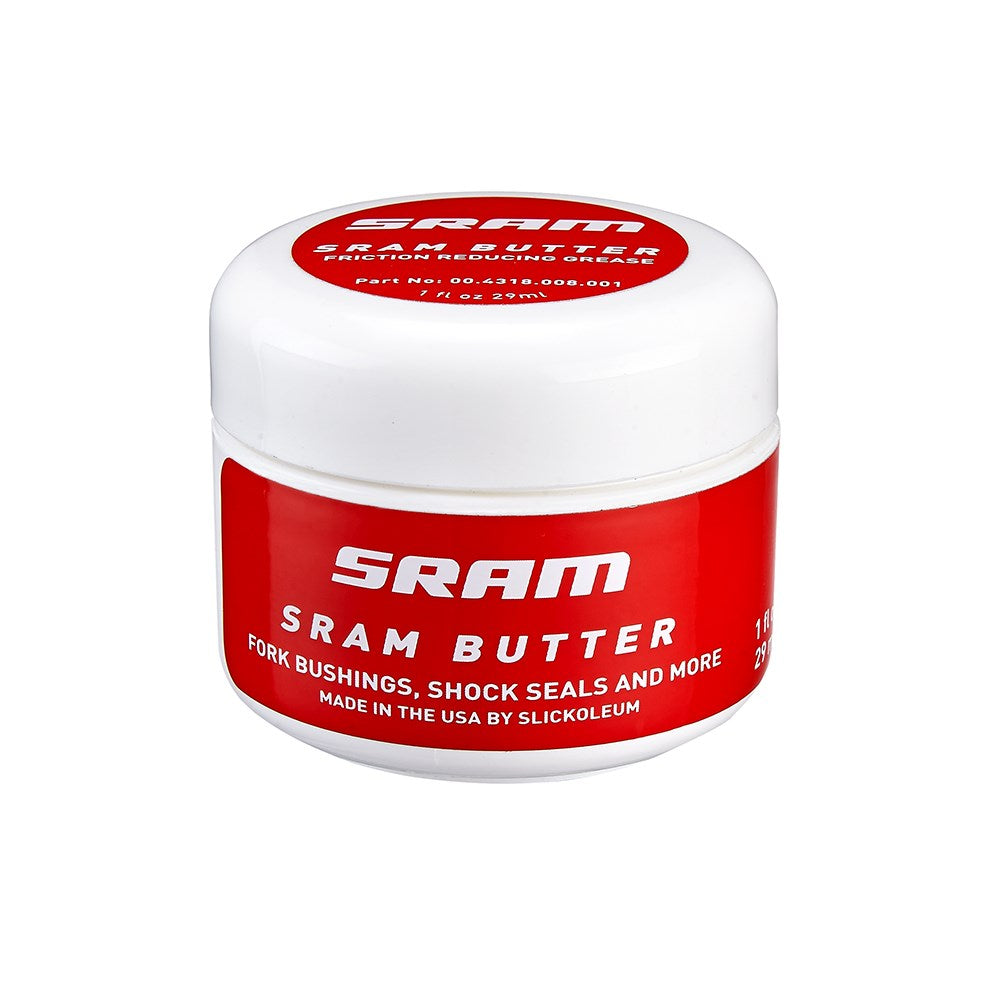

FEATURES

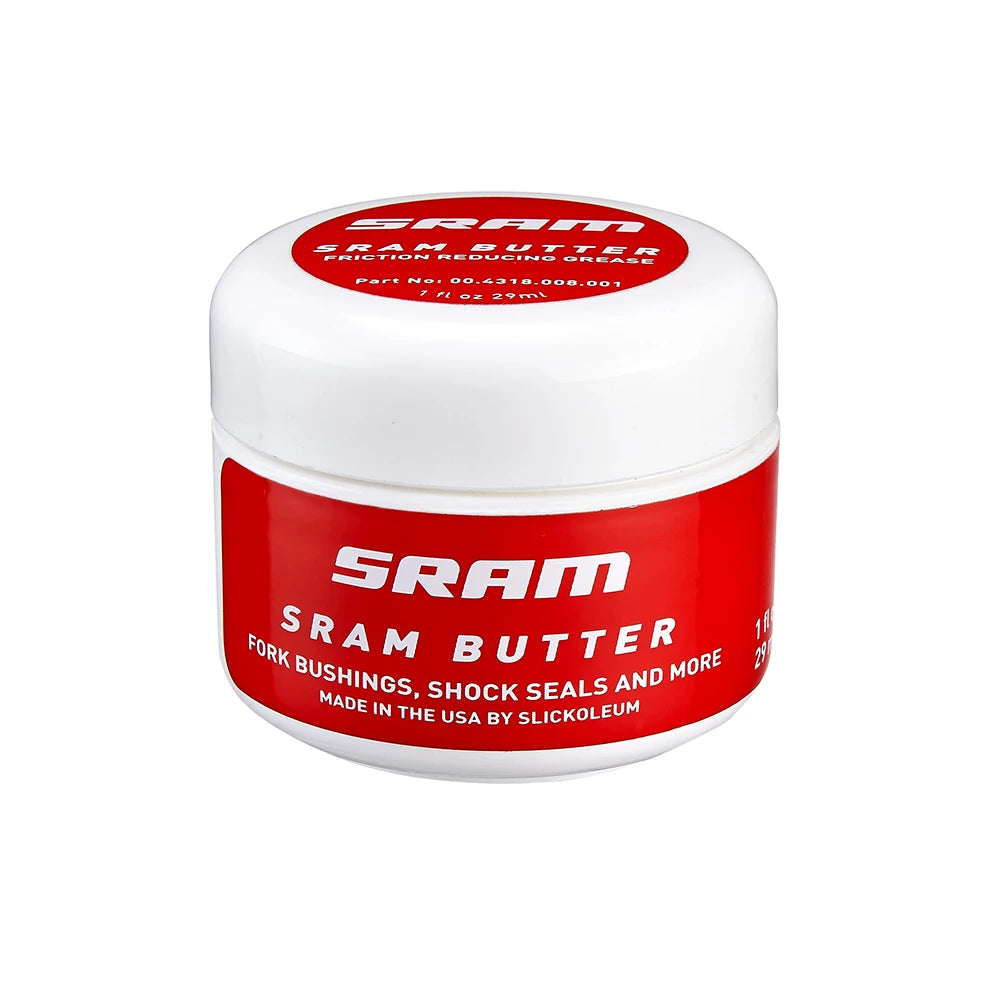

- Friction reducing grease by Slickoleum.
- Recommended for SRAM XX, X0, Roam, Rise wheel rear hub pawls, RockShox forks and Reverb seat post service.
- Available in a 20ml syringe, 500ml and a 1oz container.
SPECIFICATIONS
| Grease Type | Grease |
|---|---|
| Container Size (Grease) | 1 oz, 20 ml, 500ml |
| Application (Grease) | Seals |
Post Bracket - 40mm (Includes Bracket & Stainless Rainbow Bolts) - Standard Mount
DESCRIPTION

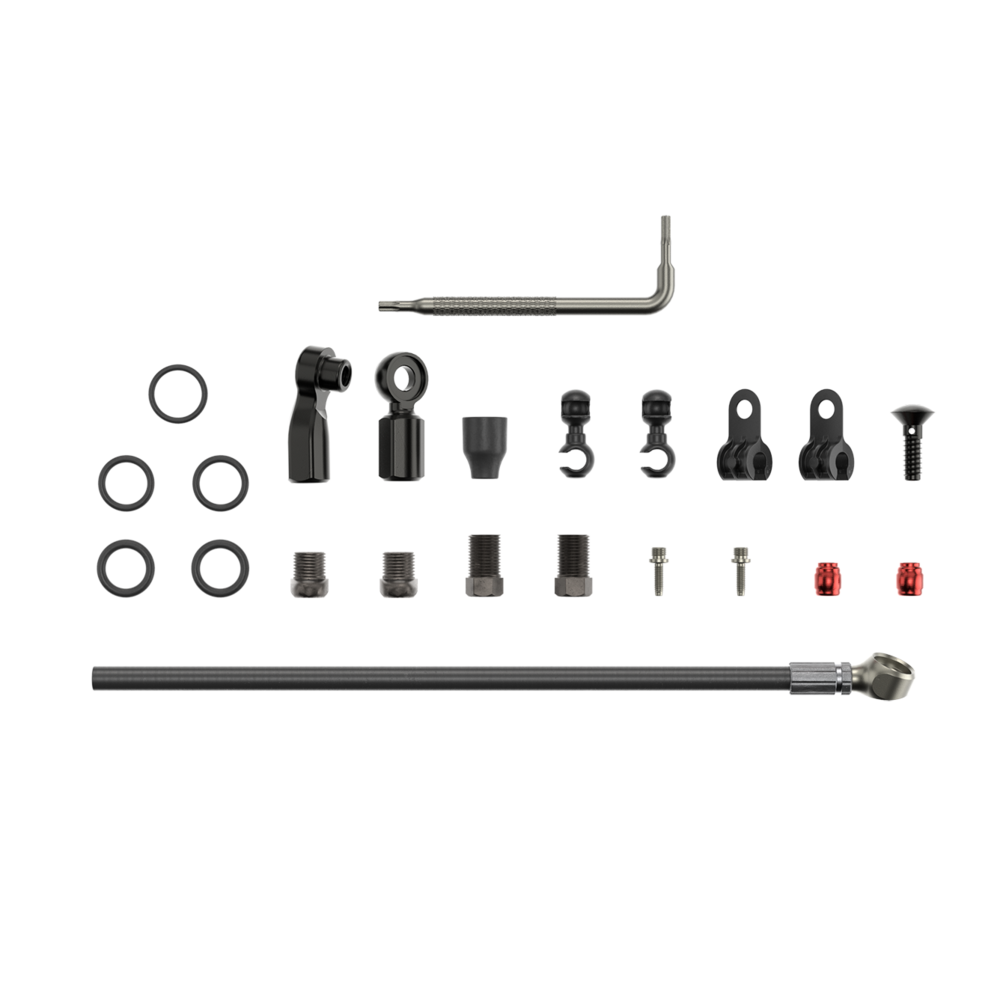

The Beveled Banjo Hydraulic Brake Hose Kit fits SRAM road bike brakes that feature a beveled banjo fitting at the caliper. The hydraulic line kit includes all replacement parts.
The Beveled Banjo system utilizes road brakes exclusively; the portion on the shifter is fixed and bolts directly into the fluid body of the lever. As road bikes will generally come fitted with handlebar tape, this design means that the lines can be shortened at the caliper.
SPECIFICATIONS
- Product Number: 00.5318.040.000
- Compatible Hydraulic Brake Fluids: DOT 4 or 5.1
-
Applicable Brakes:Flat Mount; Red22, Force22, Rival22, Force 1, Force CX1,Apex1 HRD, S700
- It should be noted that this kit can also be used for any Double Compression systems, once the Banjos are cut off from the line
- Parts included in the kit: Specific brake line (2-metres long) and necessary seals, 2x short (road) compression nuts, 2x long (MTB) compression nuts, 2x SRAM Barb, 2x SRAM Olive, Caliper compression nut boot, 2x external cable holders, 2x stem mounted cable holders, T8 Torx key for barb installation.
- Can't locate a Double Compression kit? Fear not, any SRAM Hydraulic Brake Hose kit can be substituted once the respective Banjos have been removed.
