FEATURES
- Durable Double Time four pawl mechanism offers quick engagement
- 1.8 mm spacer is included for use with XD cassettes
- Sealed cartridge bearings
- Angled flanges provide optimum spoke geometry
- Axle end caps for alternate frame specs are included (except for Boost hubs) and can be swapped without tools
SPECIFICATIONS
| Bearing Type | Sealed Cartridge |
| Cassette Body Type | SRAM XD 11/12 Speed |
| Cassette Body Type | SRAM XDR |
| Center to Flange, Left | 37.25 |
| Center to Flange, Right | 23.5 |
| Color | Black |
| Defined Color | Black |
| Flange Diameter, Left | 58 |
| Flange Diameter, Right | 60 |
| Hub Drilling | 28 |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Rear Axle | 12mm Thru x 148mm |
| Skewer Included | No |
| Spoke Interface | J-Bend |
| Weight | 285 |

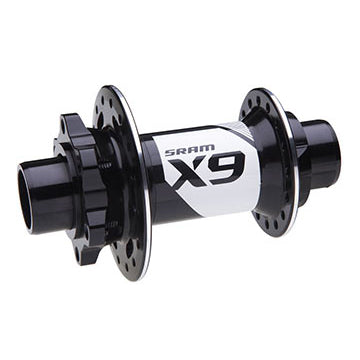

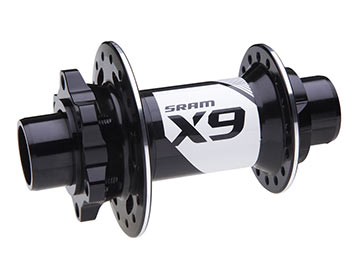

SRAM's X9 hubs are built tough with light aluminum hubshells for the strength to tackle the mountain year after year. You'll love the durable high-precision cartridge bearings that spin smoothly in all conditions. Plus, careful machining helps keep the X9's weight low without compromising durability.
SPECIFICATIONS
Fits 20 x 110mm thru-axles
Compatible with 6-bolt rotors
32-hole hub
Weight: 175 grams
SPECIFICATION

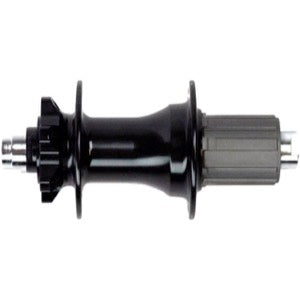

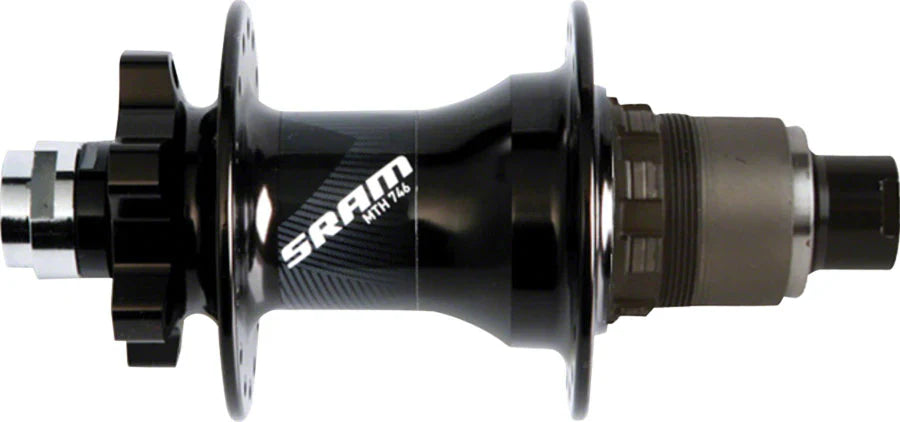

For SRAM 746 Rear Hub - 12 x 142mm, 6-Bolt, HG10, Black, 32H
| Weight | 410g |
| Intended Use | Mountain |
| Hub Drilling | 32spokes |
| Rear Axle Type | 12mm Thru-axle |
| Cassette Body Type | Shimano 9/10/SRAM |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Rear Wheel Type | Mountain |
| Rear Hub Spacing | 142mm |
| Skewer Included | N/A |
| Spoke Type | J-Bend |
For SRAM 746 Rear Hub - 12 x 142mm, 6-Bolt, XD, Black, 32H
| Bearing Type | Sealed Cartridge |
| Cassette Body Type | SRAM XD 11/12 Speed |
| Center to Flange, Left | 34 |
| Center to Flange, Right | 20.5 |
| Color | Black |
| Defined Color | Black |
| Flange Diameter, Left | 58 |
| Flange Diameter, Right | 58 |
| Hub Drilling | 32 |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Rear Axle | 12mm Thru x 142mm |
| Skewer Included | No |
| Spoke Interface | J-Bend |
| Weight | 360 |
