Sort by:
OVERVIEW
Long on travel, short on excuses, ZEB Ultimate is a whole new breed of fork designed to challenge the limits and take on the world’s toughest enduro tracks. An updated stiff 38mm chassis includes the new Charger 3 RC2 damper with vibration-killing ButterCup technology. Our highest performing, athlete-proven technologies matched with premium style plays. This is ZEB.
FEATURES
- 38mm chassis for increased stiffness and rider confidence on every critical line.
- Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke, and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
- ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
- [Units manufactured after 1 July 2023 no longer include the Pressure Relief Valves. Please check with your dealer for more information.] Pressure Relief Valves eliminate unwanted air pressure build-up in the lower leg caused by variations in altitude or temperature. With the press of a button, Pressure Relief Valves restore that premium fork feel.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- RockShox premium short fender compatibility. (RockShox bolt-on fender sold separately)
- Available in the Signature colorway Slab Grey or Ultimate High Gloss Black.
- Maxima Plush damping fluid reduces friction and silences damper noise.
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 150mm, 160mm, 170mm, 180mm, 190mm |
| STEERER | 1.5" Tapered, 1.8" Tapered |
| AXLE | 15x110mm BOOST™ |
| SPRING | DebonAir W/ButterCup, Dual Position Air |
| FORK OFFSET | 38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 38mm aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 200mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Charger 3 RC2 W/ButterCup |
| VOLUME REDUCER | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens, 2/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey |
| FENDER COMPATIBILITY | Short, 3 point mount |
| WEIGHT (G) | 2341 |
| WEIGHT BASED ON | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |
OVERVIEW
Designed not only for the race down, but the ride up. Holding onto every critical line, Lyrik Ultimate features an updated DebonAir air spring paired with our Charger 2.1 damper for unmatched trail control and precision. Ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide unmatched fork performance sun up to sun down.
FEATURES
- Updated highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Designed to reduce hand fatigue and fight unwanted friction, the Charger™ 2.1 damper increases confidence and control over every trail
- Charger™ 2.1 RC2 damper featuring independent high and low speed compression adjust
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- "BoXXer" Red Signature colorway and Ultimate High Gloss Black
- Ultimate foil graphics package
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 150mm, 160mm, 170mm, 180mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") |
| Color (FS) | BoXXer Red, Gloss Black |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 2/5 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 59 |
| Part Weight (g) | 1976 - 2040 |

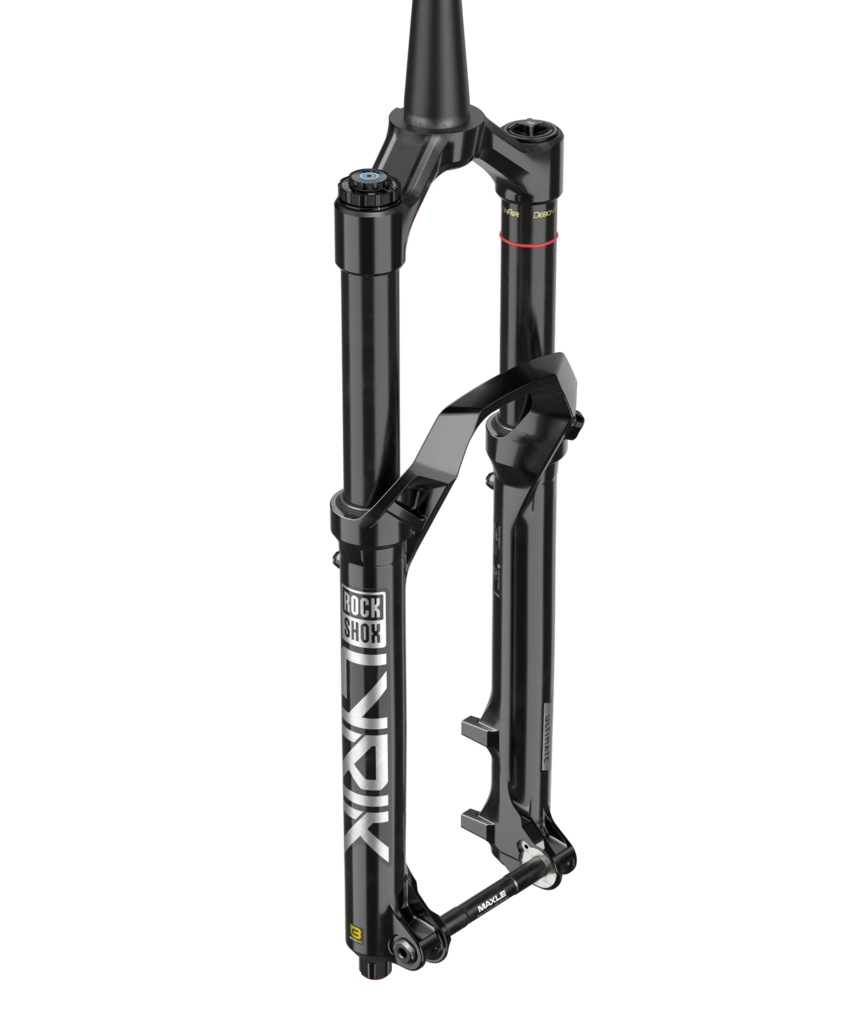

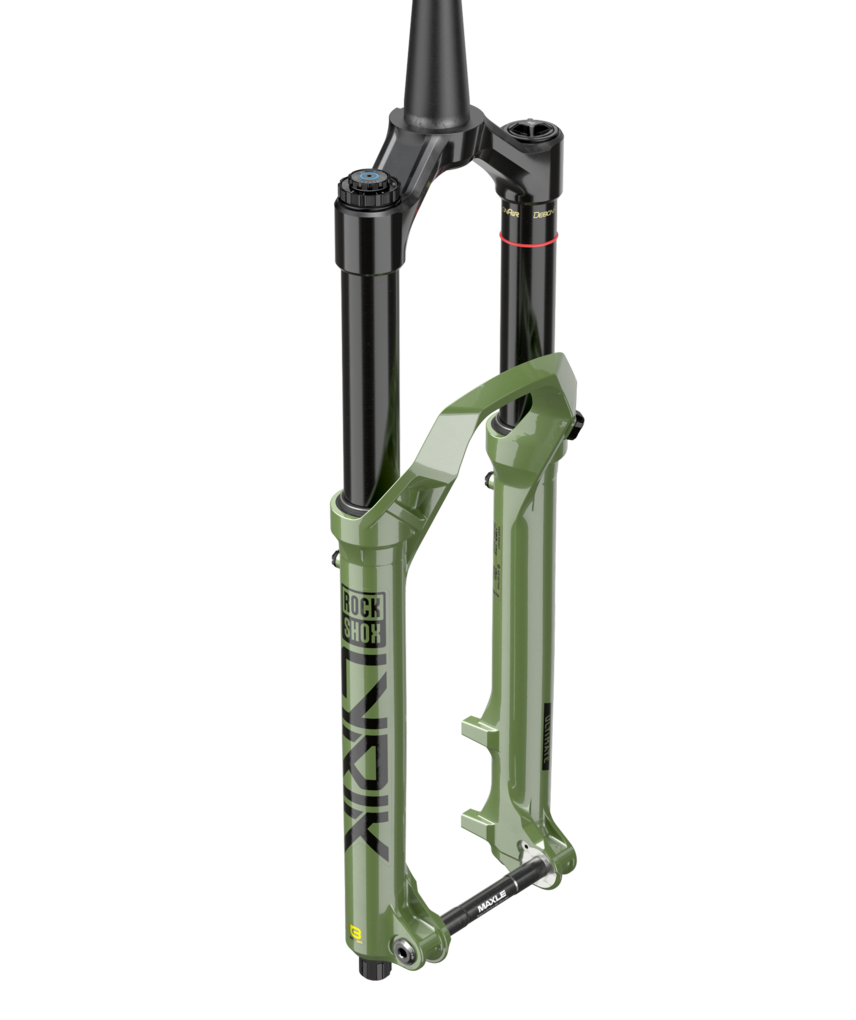

OVERVIEW
Faster. Stronger. Ruthlessly efficient. The new Lyrik is up for anything and down for it all. The most versatile fork in our lineup features a hyper-focused new chassis that’s lighter while still critically stiff to deliver on Lyrik’s legendary performance and party attitude. Lyrik Ultimate packs an orchestra of industry-leading tech like the new Charger 3 damper, ButterCup technology, and the new DebonAir+ air spring. Let Lyrik sing with a fresh signature colorway we call “Heavy Meadow”, inspired by our favorite alpine sufferfests. The new Lyrik Ultimate is here.
FEATURES
- 35mm chassis with a focused all-mountain mindset - satisfyingly stiff, efficient, and designed to eliminate as much weight as possible.
- Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
- ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
- [Units manufactured after 1 July 2023 no longer include the Pressure Relief Valves. Please check with your dealer for more information.] Pressure Relief Valves eliminate unwanted air pressure build-up in the lower leg caused by variations in altitude or temperature. With the press of a button, Pressure Relief Valves restore that premium fork feel.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in Ultimate High Gloss Black or new “Heavy Meadow” Signature colorway, inspired by our favorite alpine sufferfests.
- RockShox premium short fender compatibility. (RockShox bolt-on fender sold separately)
- Maxima Plush damping fluid reduces friction and silences damper noise.
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 140mm, 150mm, 160mm |
| STEERER | 1.5" Tapered, 1.8" Tapered |
| AXLE | 15x110mm BOOST™ |
| SPRING | DebonAir+, DebonAir+ W/ButterCups |
| FORK OFFSET | 37mm (27.5"), 44mm (27.5"), 44mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 35mm tapered wall aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 180mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Charger 3 RC2, Charger 3 RC2 W/ButterCups |
| VOLUME REDUCER | 0/5 Tokens, 1/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Heavy Meadow Green - Gloss |
| FENDER COMPATIBILITY | Bolt On - Short, Short, 3 point mount |
| WEIGHT (G) | 2028 |
| WEIGHT BASED ON | 29" Maxle Stealth 160mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |
OVERVIEW
Long on travel, short on excuses, ZEB Ultimate is a whole new breed of fork designed to challenge the limits and take on the world’s toughest enduro tracks. An updated stiff 38mm chassis includes the new Charger 3 RC2 damper with vibration-killing ButterCup technology. Our highest performing, athlete-proven technologies matched with premium style plays. This is ZEB.
FEATURES
- 38mm chassis for increased stiffness and rider confidence on every critical line.
- Already proving itself on the podium with multiple wins during the 2021 season, Charger 3 is ready to meet the masses. Charger 3 features an all-new Internal Floating Piston (IFP) design that offers more consistency through the stroke, and truly independent adjustments that reduce harshness and increase control without any “cross-talk”. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is exact and meaningful. Dial in your perfect ride experience without a second guess. No sacrifices and no hesitation. This is Charger 3.
- ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Ultimate Bushing Package maximizes bushing overlap, reducing friction and creating the smoothest ride possible.
- [Units manufactured after 1 July 2023 no longer include the Pressure Relief Valves. Please check with your dealer for more information.] Pressure Relief Valves eliminate unwanted air pressure build-up in the lower leg caused by variations in altitude or temperature. With the press of a button, Pressure Relief Valves restore that premium fork feel.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- RockShox premium short fender compatibility. (RockShox bolt-on fender sold separately)
- Available in the Signature colorway Slab Grey or Ultimate High Gloss Black.
- Maxima Plush damping fluid reduces friction and silences damper noise.
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 150mm, 160mm, 170mm, 180mm, 190mm |
| STEERER | 1.5" Tapered, 1.8" Tapered |
| AXLE | 15x110mm BOOST™ |
| SPRING | DebonAir W/ButterCup, Dual Position Air |
| FORK OFFSET | 38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 38mm aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 200mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Charger 3 RC2 W/ButterCup |
| VOLUME REDUCER | 0/4 Tokens, 1/4 Tokens, 1/5 Tokens, 2/5 Tokens |
| COLOR (FS) | Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey |
| FENDER COMPATIBILITY | Short, 3 point mount |
| WEIGHT (G) | 2341 |
| WEIGHT BASED ON | 29" Maxle Stealth 190mm Travel 1.5" Taper Steerer, W/Pressure Relief Valves & ButterCups |

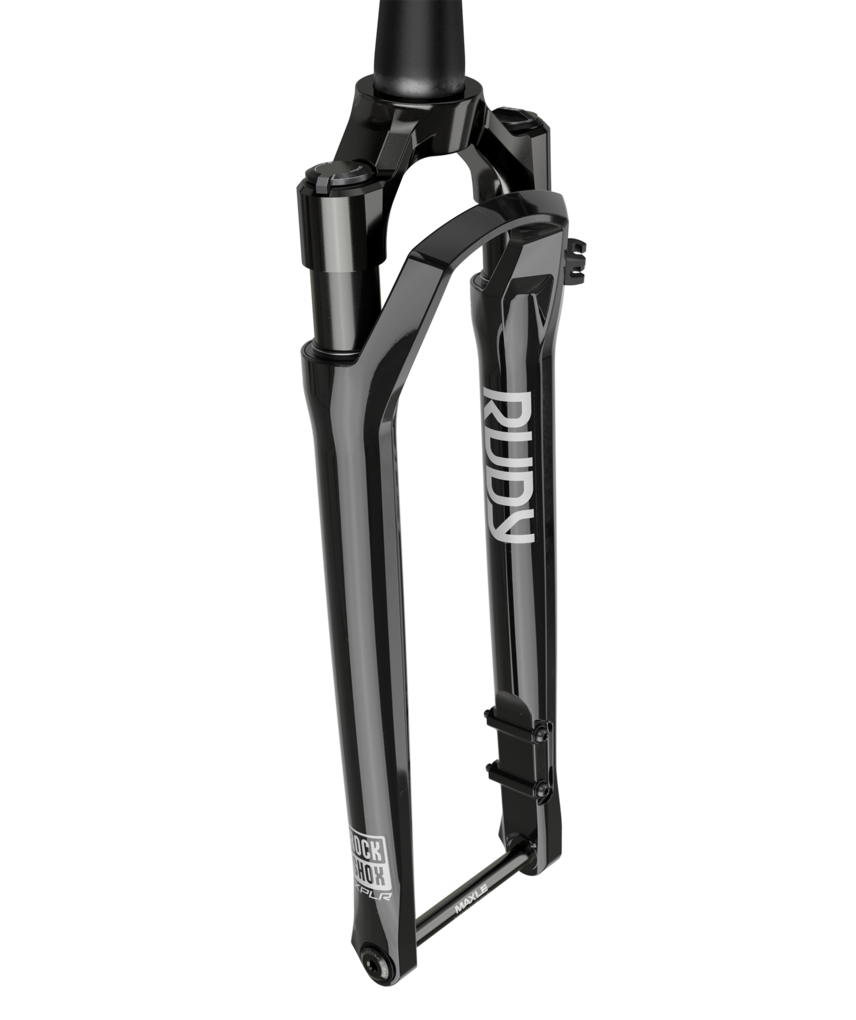

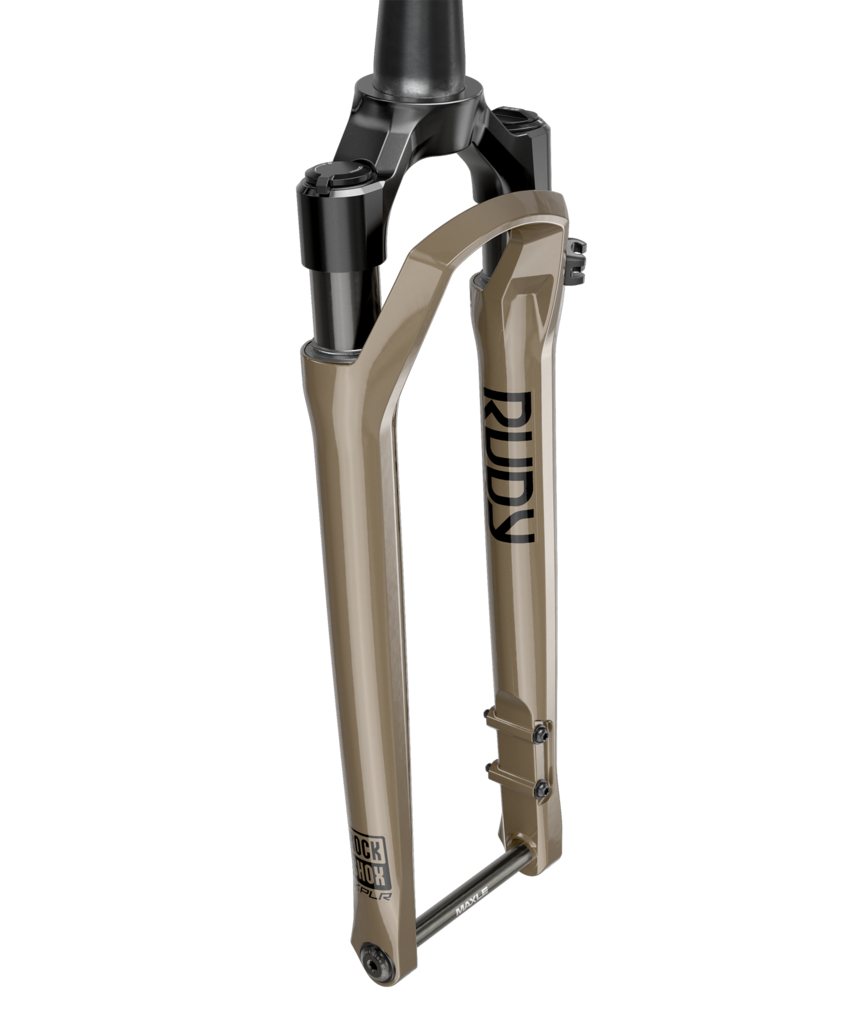

OVERVIEW
The new Rudy is a perfect match for your gravel bike. It’s energy-efficient for straightaways and offers enough travel to keep you comfortably in control when things get rough. Featuring all-new 30mm upper tubes built around the Charger Race Day damper (our lightest damper ever) and our proven SoloAir™ spring. Rudy offers precise steering, full or short fender compatibility, and the looks to make your road bike proud. Everything designed with the needs of gravel riders in mind.
FEATURES
- Purpose-built and laser-focused on gravel and e-gravel bikes
- 30mm upper tubes are light and look the part
- 30mm and 40mm travel options
- Charger Race Day damper tuned for gravel needs with rock-solid lockout and a full range of rebound adjust
- Solo Air™ spring perfectly tuned for shorter travel and efficiency over bumps
- Short fender compatibility with a 3-bolt system
- Full fender compatibility with custom stealth stay bosses
- Lightweight machined and anodized crown offers a premium and durable finish
- Maxima Plush damping fluid reduces friction and silences damper noise
- Up to 700x50 tire clearance
- Available in new Kwiqsand Signature colorway or Gloss Black
- E-bike approved
SPECIFICATIONS
| WHEEL SIZE | 700c |
|---|---|
| TRAVEL (MM) | 30mm, 40mm |
| STEERER | 1.5" Tapered |
| AXLE | 12x100mm |
| SPRING | Solo Air |
| FORK OFFSET | 45mm (700c), 51mm (700c) |
| MAXIMUM ROTOR SIZE | 180mm |
| UPPER TUBE TYPE | 30mm straight wall aluminum |
| MAX TIRE WIDTH (MM) | 50 |
| MINIMUM ROTOR SIZE | 160mm |
| E-BIKE APPROVED | E-bike Approved |
| DAMPER TYPE | Charger Race Day |
| VOLUME REDUCER | n/a |
| COLOR (FS) | Gloss Black, Kwiqsand |
| FENDER COMPATIBILITY | Bolt On - Full or Short, Full or Short, 3 point and 2 point mounts |
Damper Upgrade Kit - CHARGER RACE DAY Crown (Includes Complete Right Side Internals) - 32mm 100mm Max Travel - Reba A7 80-100mm (2018+)/SID 100 A1 (2017+)
Redesigned by the world’s fastest racers, for the world’s fastest racers, you want BoXXer in your corner. The all-new 38mm chassis is equipped with the DebonAir+ twin tube air spring that will have you thinking it’s a coil. Paired with a Charger 3 RC2 damper tuned for downhill speed, BoXXer Ultimate takes you straight to the top step of the podium. And with our new crown adjustment lines, setup is a breeze—no rulers required.
FEATURES
- NEW 38mm chassis designed to meet the needs of the world’s fastest racers with balanced stiffness and ride quality
- NEW DebonAir+ twin tube air spring strikes the perfect balance between butter-smooth small bump feel, added support throughout the travel, and taller ride height for confidence when things get steep
- NEW Signature colorway BoXXer Electric Red with an all-new graphics package
- NEW RockShox premium fender compatibility (RockShox Bolt-On Fender included with purchase)
- NEW Lightweight machined and anodized crown for premium looks and durability
- NEW Crown height gradient creates a visual guide to simplify setup, no ruler required
- Charger 3 damper tuned for BoXXer’s updated chassis and spring. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This allows the rider to tune to perfection with every click.
- ButterCups block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue, leaving you feeling fresh with more control
- Ultra-low-friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 180mm, 190mm, 200mm |
| STEERER | 1-1/8" Aluminum |
| AXLE | 20x110mm BOOST™ |
| SPRING | DebonAir+ W/ButterCups |
| FORK OFFSET | 44mm (27.5"), 48mm (27.5"), 48mm (29"), 52mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 38mm aluminum |
| MAX TIRE WIDTH (MM) | 81 |
| MINIMUM ROTOR SIZE | 200mm |
| E-BIKE APPROVED | E-bike Approved |
| DAMPER TYPE | Charger 3 RC2 W/ButterCups |
| VOLUME REDUCER | 0/6 Tokens, 1/6 Tokens |
| COLOR (FS) | BoXXer Electric Red - Gloss, Gloss Black |
| FENDER COMPATIBILITY | Bolt On - Short |
| WEIGHT (G) | 2880 |
| WEIGHT BASED ON | 200mm, Short Crown (Weights same for 27.5" and 29") |

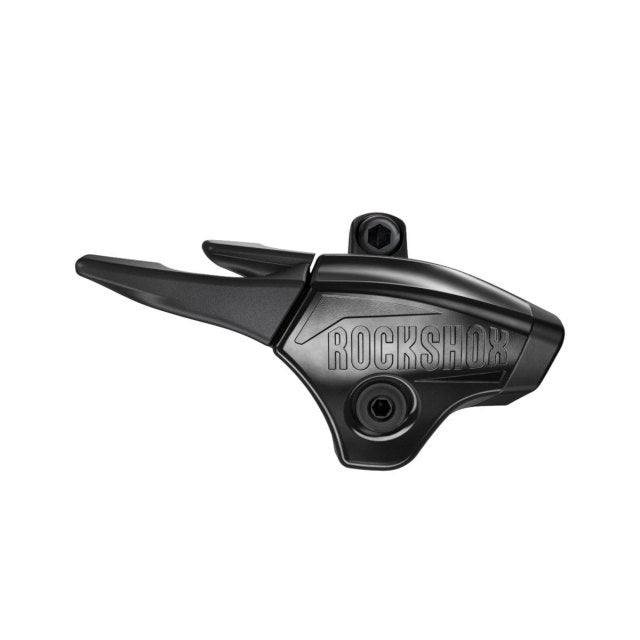

DESCRIPTION
Grip Shift changed the mountain bike industry, started a revolution, and now has inspired our latest suspension remote. With its sleek, low-profile design, the new Twistloc Ultimate offers riders better dropper post compatibility and a cleaner cockpit. Featuring the option between textured or smooth grips, and straight or curved cable guides, Twistloc Ultimate puts suspension settings in the palm of your hand.
FEATURES
- Twist to switch your suspension’s compression damping on the fly.
- Available in 3P (Open, Pedal, and Lock) and 2P (Open and Lock) options.
- Sleek design makes for a lightweight and tidy cockpit.
SPECIFICATIONS
Model ID: RM-TLOC-ULT-B1
| ORIENTATION | Left |
|---|---|
| APPLICATION (RM) | Fork and Rear shock, Rear shock |
| MOUNT TYPE (RM) | Discrete |
| CABLE PULL (RM) | 2 Position (10mm), 3 Position (7mm + 7mm) |
| MODEL (SERVICE KITS) | n/a |
| ACTUATION | Twist to lock, Twist to unlock |
| POSITIONS | 2 Position, 3 Position |
| CABLE ROUTING (RM) | n/a, Straight |
| GRIP INCLUDED | Textured grip included on right side |
OVERVIEW
ZEB Ultimate is a whole new breed of fork, designed to challenge the limits and take on the world’s toughest Enduro tracks. Going Ultimate has its advantages. Featuring an all-new stiff 38mm chassis designed with the Charger 2.1 damper, DebonAir™ air spring technology, SKF Wiper Seals, and Maxima Plush Fluid. Our highest performing, athlete-proven technologies matched with premium style plays. An anodized crown and ZEB’s signature color – Slab Grey – make a rocking debut.
FEATURES
- 38mm chassis for increased stiffness and rider confidence
- Highly-tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Our highest performing Charger technology. Charger 2.1 RC2 damper features independent high and low speed compression with rebound adjustment – designed to reduce hand fatigue and fight unwanted friction, the Charger 2.1 damper increases confidence and control over every trail
- Ultra-low friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Available in the Signature Colorway Slab Grey or Ultimate High Gloss Black with foil graphics
- Short fender compatible (RockShox fender sold separately)
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 160mm, 170mm, 180mm, 190mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 38mm (27.5"), 44mm (27.5"), 44mm (29") |
| Color (FS) | Gloss Black, Grey |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 38mm aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 2/5 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 63 |
| Part Weight (g) | 2263 - 2298 |
OVERVIEW
A true trail machine we couldn’t wait to have on our bikes and get to you. Featuring an updated DebonAir™ air spring paired with our Charger™ 2.1 damper for unmatched trail control for every sweeping corner or loamy drop in. Ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide lasting fork performance.
FEATURES
- Updated highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Designed to reduce hand fatigue and fight unwanted friction, the Charger™ 2.1 damper increases confidence and control over every trail
- Charger™ 2.1 RC2 damper option featuring independent high and low speed compression adjust
- Charger™ 2.1 RCT3 damper option featuring 3-position compression adjust (open/pedal/firm) with low speed compression adjust
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Gloss Silver Signature colorway and Ultimate High Gloss Black
- Ultimate foil graphics package
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 120mm, 130mm, 140mm, 150mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") |
| Color (FS) | Gloss Black, Gloss Silver |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 1/4 Tokens, 1/5 Tokens, 2/6 Tokens, 3/6 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 58 |
| Part Weight (g) | 1790 - 1858 |
OVERVIEW
ZEB Ultimate is a whole new breed of fork, designed to challenge the limits and take on the world’s toughest Enduro tracks. Going Ultimate has its advantages. Featuring an all-new stiff 38mm chassis designed with the Charger 2.1 damper, DebonAir™ air spring technology, SKF Wiper Seals, and Maxima Plush Fluid. Our highest performing, athlete-proven technologies matched with premium style plays. An anodized crown and ZEB’s signature color – Slab Grey – make a rocking debut.
FEATURES
- New 38mm chassis for increased stiffness and rider confidence
- Highly-tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Our highest performing Charger technology. Charger 2.1 RC2 damper features independent high and low speed compression with rebound adjustment – designed to reduce hand fatigue and fight unwanted friction, the Charger 2.1 damper increases confidence and control over every trail
- Ultra-low friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Available in the Signature Colorway Slab Grey or Ultimate High Gloss Black with foil graphics
- Short fender compatible (RockShox fender sold separately)
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 160mm, 170mm, 180mm, 190mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 38mm (27.5"), 44mm (27.5"), 44mm (29") |
| Color (FS) | Gloss Black, Grey |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 38mm aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 2/5 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 63 |
| Part Weight (g) | 2263 - 2298 |
OVERVIEW
Designed not only for the race down, but the ride up. Holding onto every critical line, Lyrik Ultimate features an updated DebonAir air spring paired with our Charger 2.1 damper for unmatched trail control and precision. Ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide unmatched fork performance sun up to sun down.
FEATURES
- Updated highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Designed to reduce hand fatigue and fight unwanted friction, the Charger™ 2.1 damper increases confidence and control over every trail
- Charger™ 2.1 RC2 damper featuring independent high and low speed compression adjust
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- "BoXXer" Red Signature colorway and Ultimate High Gloss Black
- Ultimate foil graphics package
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 150mm, 160mm, 170mm, 180mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") |
| Color (FS) | BoXXer Red, Gloss Black |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 0/4 Tokens, 1/4 Tokens, 2/5 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 59 |
| Part Weight (g) | 1976 - 2040 |
OVERVIEW

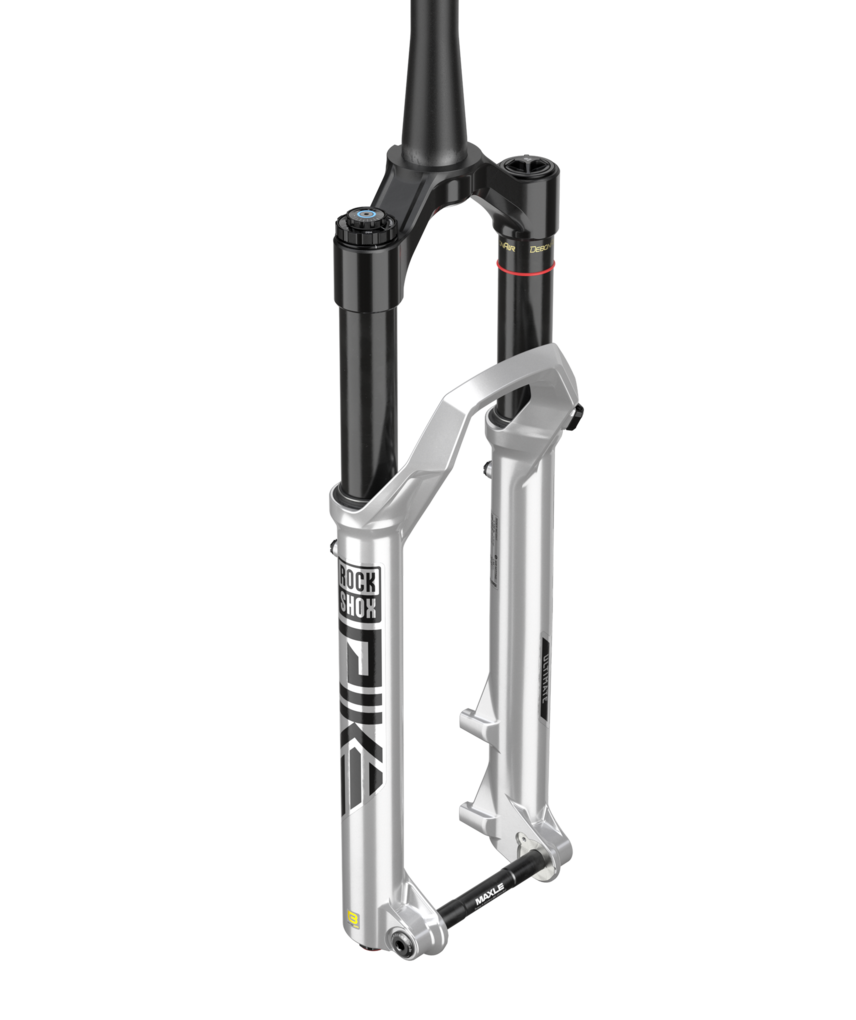

A true trail machine we couldn’t wait to have on our bikes and get to you. Featuring an updated DebonAir™ air spring paired with our Charger™ 2.1 damper for unmatched trail control for every sweeping corner or loamy drop in. Ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide lasting fork performance.
FEATURES
- Updated highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- Designed to reduce hand fatigue and fight unwanted friction, the Charger™ 2.1 damper increases confidence and control over every trail
- Charger™ 2.1 RC2 damper option featuring independent high and low speed compression adjust
- Charger™ 2.1 RCT3 damper option featuring 3-position compression adjust (open/pedal/firm) with low speed compression adjust
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Gloss Silver Signature colorway and Ultimate High Gloss Black
- Ultimate foil graphics package
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 120mm, 130mm, 140mm, 150mm |
| Damper Type | Charger 2.1 RC2 |
| Fork offset | 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") |
| Color (FS) | Gloss Black, Gloss Silver |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 1/4 Tokens, 1/5 Tokens, 2/6 Tokens, 3/6 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 58 |
| Part Weight (g) | 1790 - 1858 |
OVERVIEW

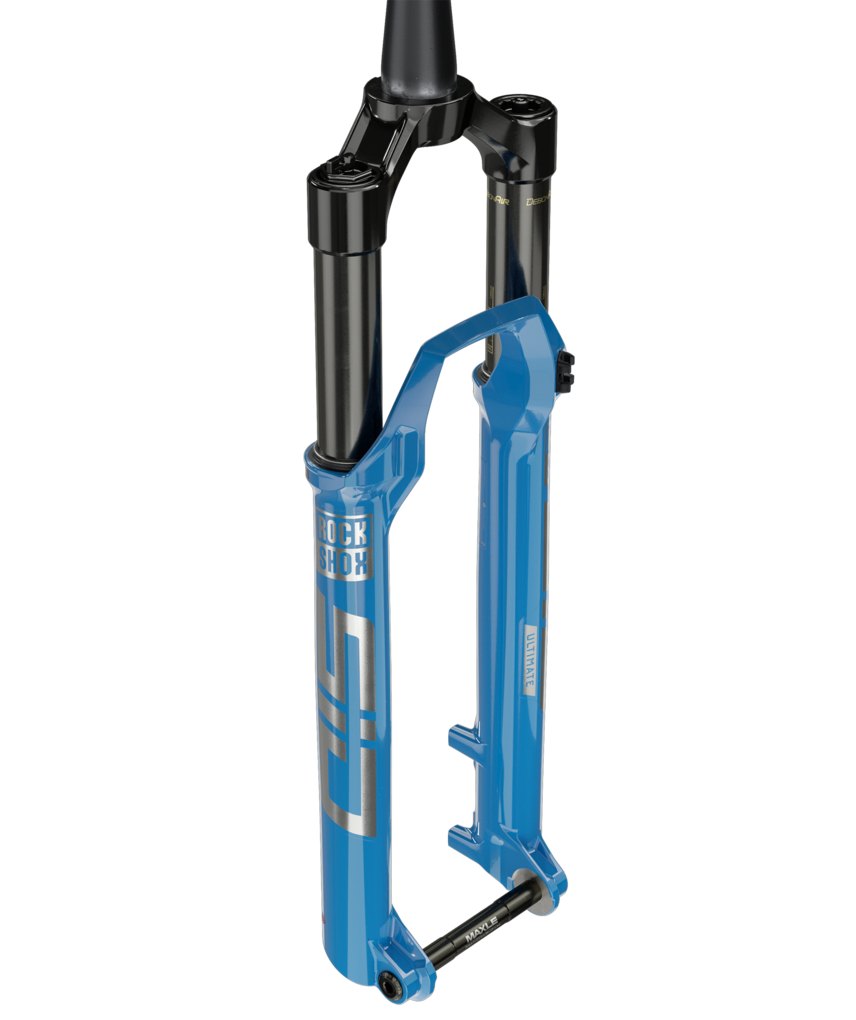

Riding SID Ultimate means every detail is considered. Packed in a stiff, lightweight 35mm chassis, and equipped with the lightest performance damper we've ever made - Charger™ Race Day. Perfectly balanced to satiate your need for XC speed.
FEATURES
- New 35mm chassis is the perfect blend of light weight and stiffness for the modern XC bike
- New Charger Race Day Damper - our lightest production damper with rock-solid lockout
- New DebonAir™ air spring is tuned specific to meet the demands of XC and maintains a higher ride height for increased confidence and control
- New Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- 29" wheel only
- 120mm max travel
- Machined/anodized crown
- 2-bolt mounts to fit a short fender (RockShox fender sold separately)
- Signature SID Blue colorway and Ultimate High Gloss Black
- Ultimate foil graphics package
SPECIFICATIONS
Model ID: FS-SID-ULT-C1
| Wheel size | 29" |
|---|---|
| Travel (mm) | 120mm |
| Damper Type | Charger Race Day |
| Fork offset | 44mm (29") |
| Color (FS) | Gloss Black, Gloss Blue |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 0/3 Tokens |
| Spring | DebonAir |
| Crown OD (mm) | 58 |
OVERVIEW

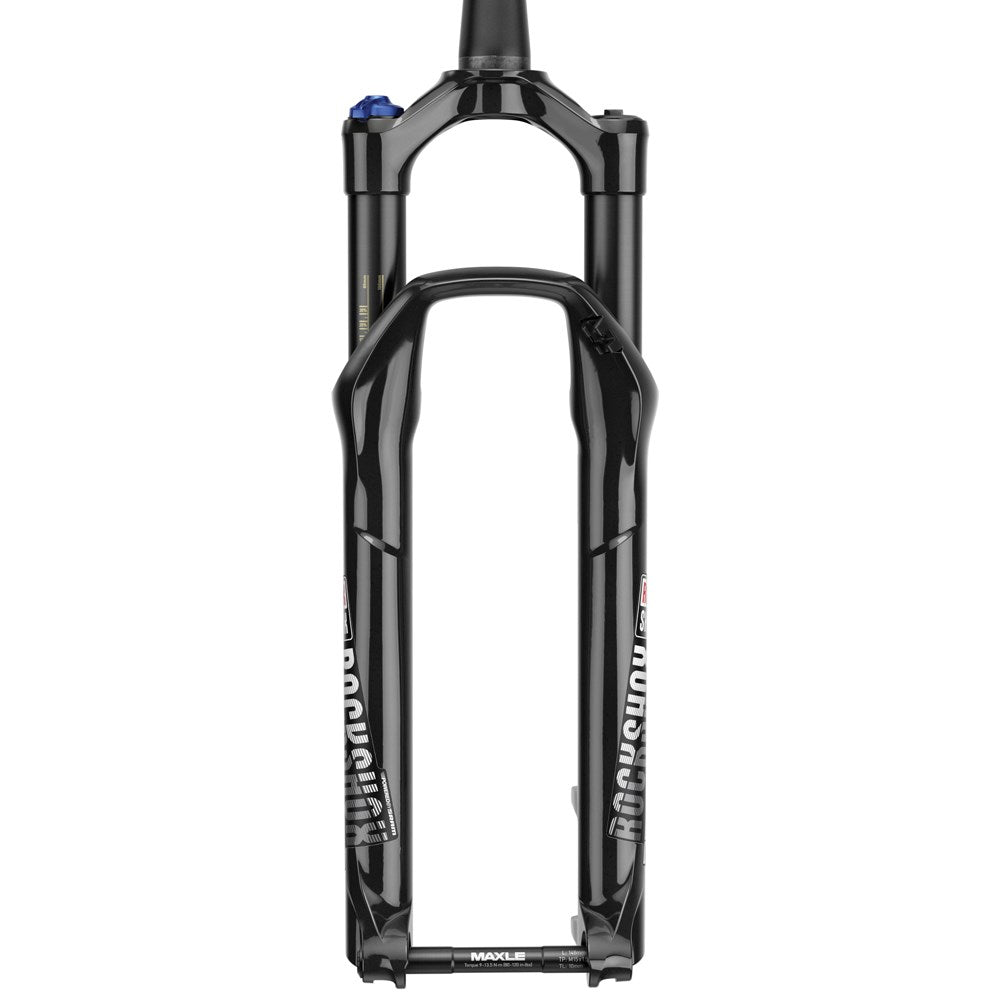

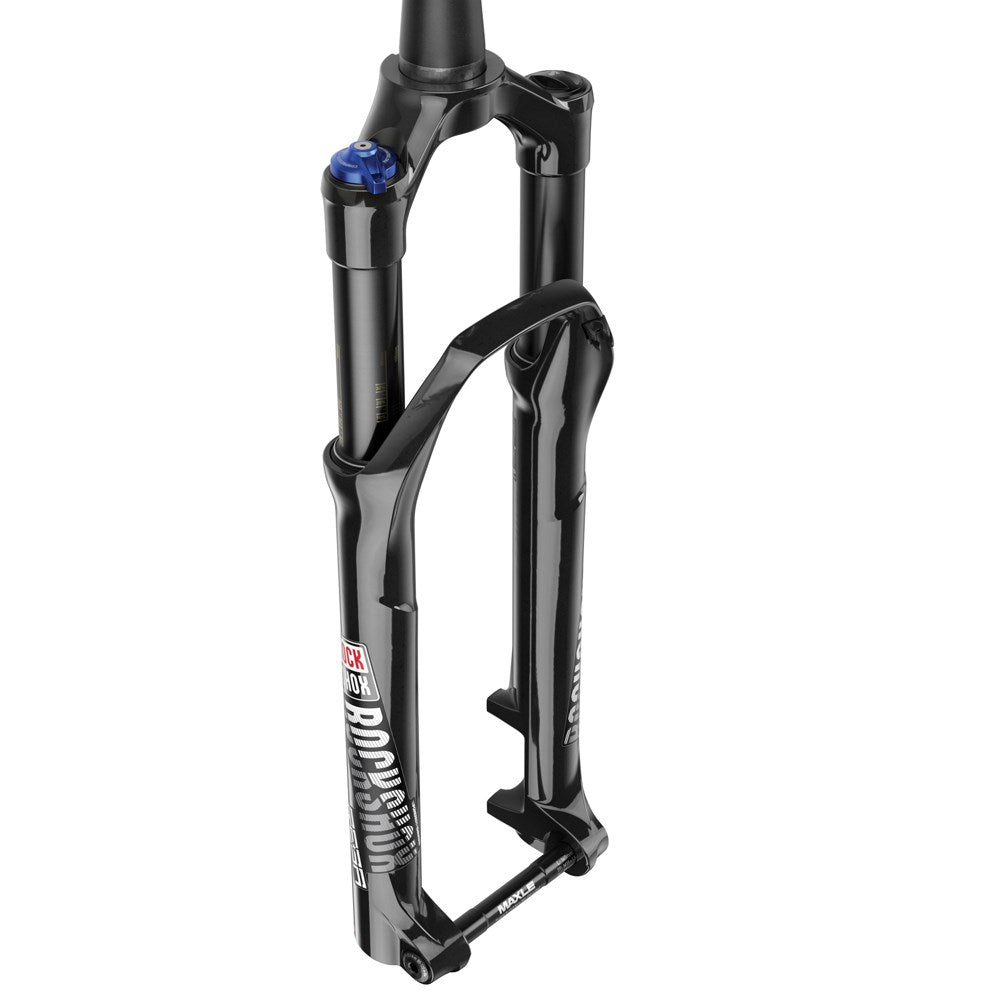

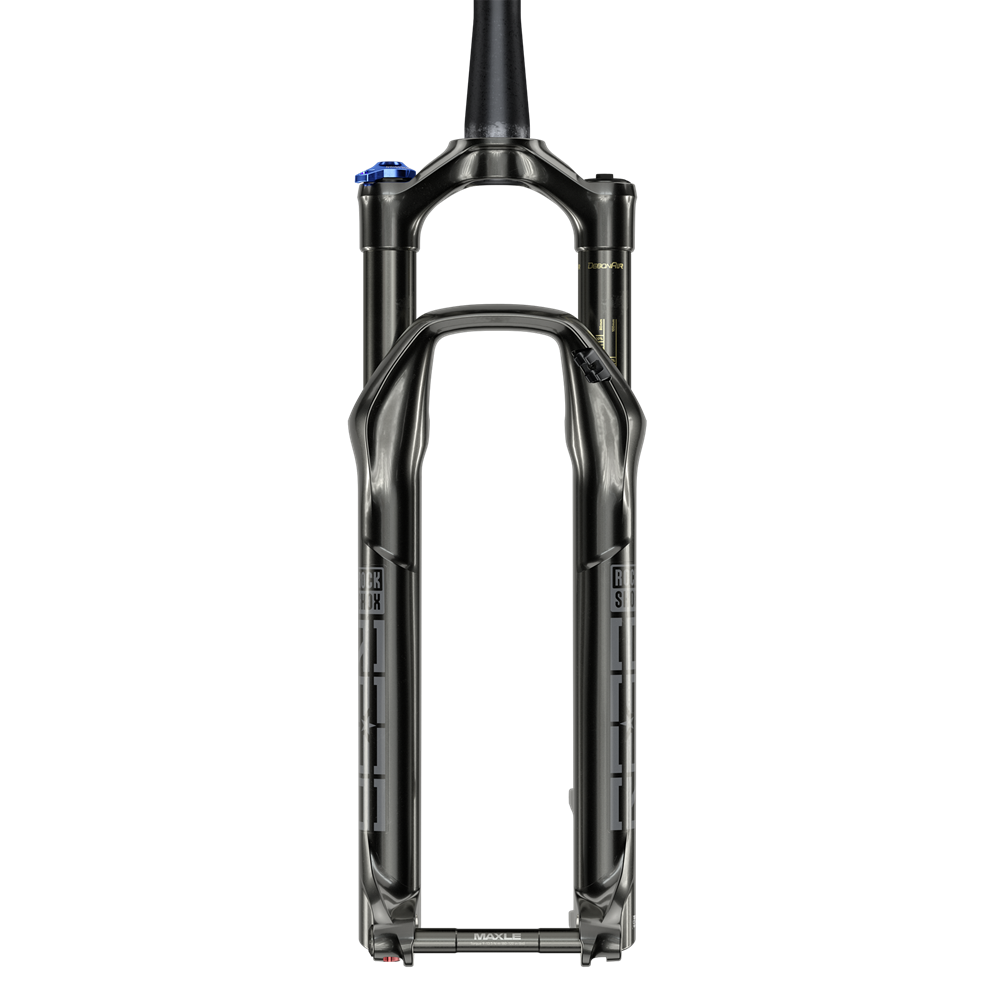

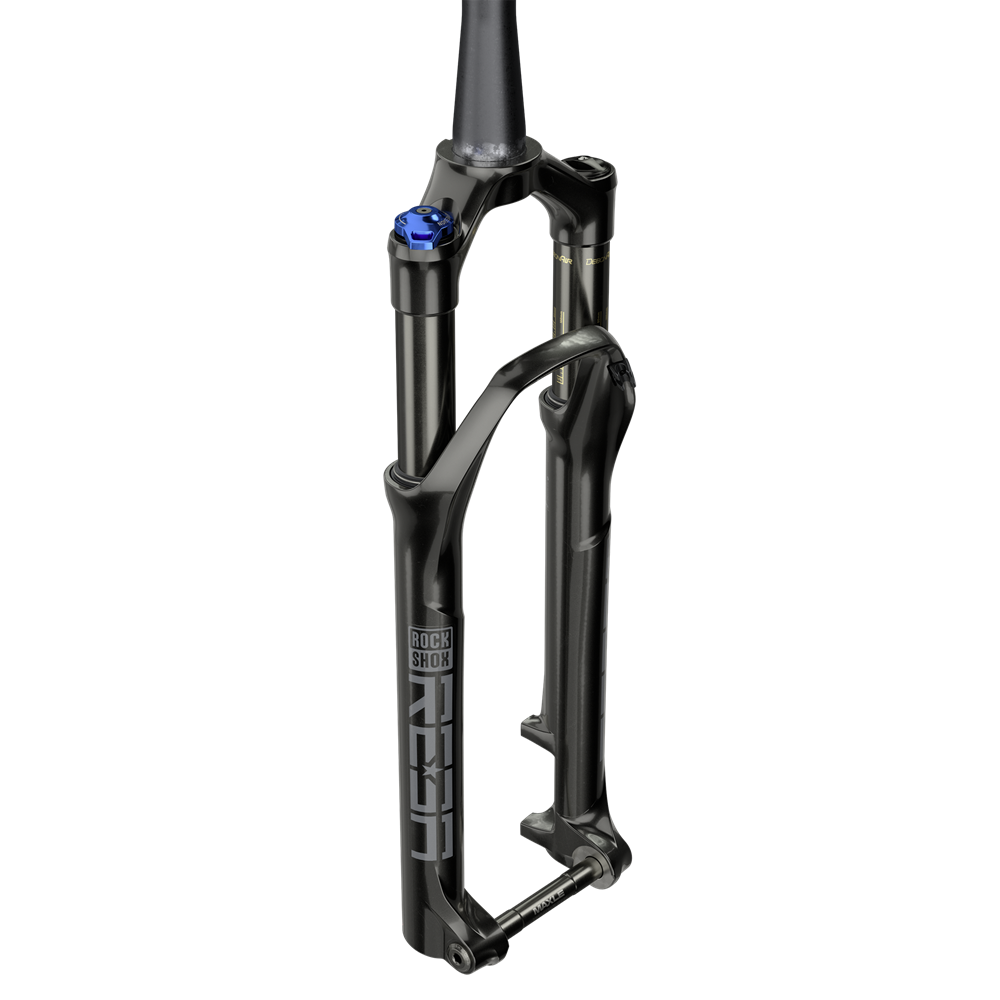

One of the most successful and hard-working RockShox forks of all times capitalizes on the innovations born from the latest SID. A chassis that combines classic XC performance with light trail duties and a Motion Control™ damper completes the package, making Reba as capable as ever before.
FEATURES
- Proven Motion Control damper featuring low speed compression adjust to lockout with external rebound adjust
- Torque Caps compatible for a stronger, stiffer interface between fork and hub, giving you more control in the front wheel
- Accepts Bottomless Tokens to easily custom tune the air spring performance to best match you own riding style and suspension preference
- Solo Air spring for a plush, predictable ride you can set up in seconds
SPECIFICATIONS
| WHEEL SIZE | 27.5", 29" |
|---|---|
| TRAVEL (MM) | 100mm, 110mm, 120mm |
| STEERER | Tapered |
| AXLE | 15x110mm |
| DAMPER ADJUST | Crown |
| SPRING | Solo Air |
| FORK OFFSET | 42mm (27.5"), 42mm (29"), 51mm (29") |
| MAXIMUM ROTOR SIZE | 220mm |
| UPPER TUBE TYPE | 32mm straight wall aluminum |
| MAX TIRE WIDTH (MM) | 62, 81 |
| MINIMUM ROTOR SIZE | 160mm |
| E-BIKE APPROVED | E-bike Approved, E-bike Approved w/E-MTB Decal |
| DAMPER TYPE | Motion Control |
| VOLUME REDUCER | 0/3 Tokens, 1/3 Tokens, 2/3 Tokens |
| COLOR (FS) | Diffusion Black, Gloss Black |
| FENDER COMPATIBILITY | n/a |
