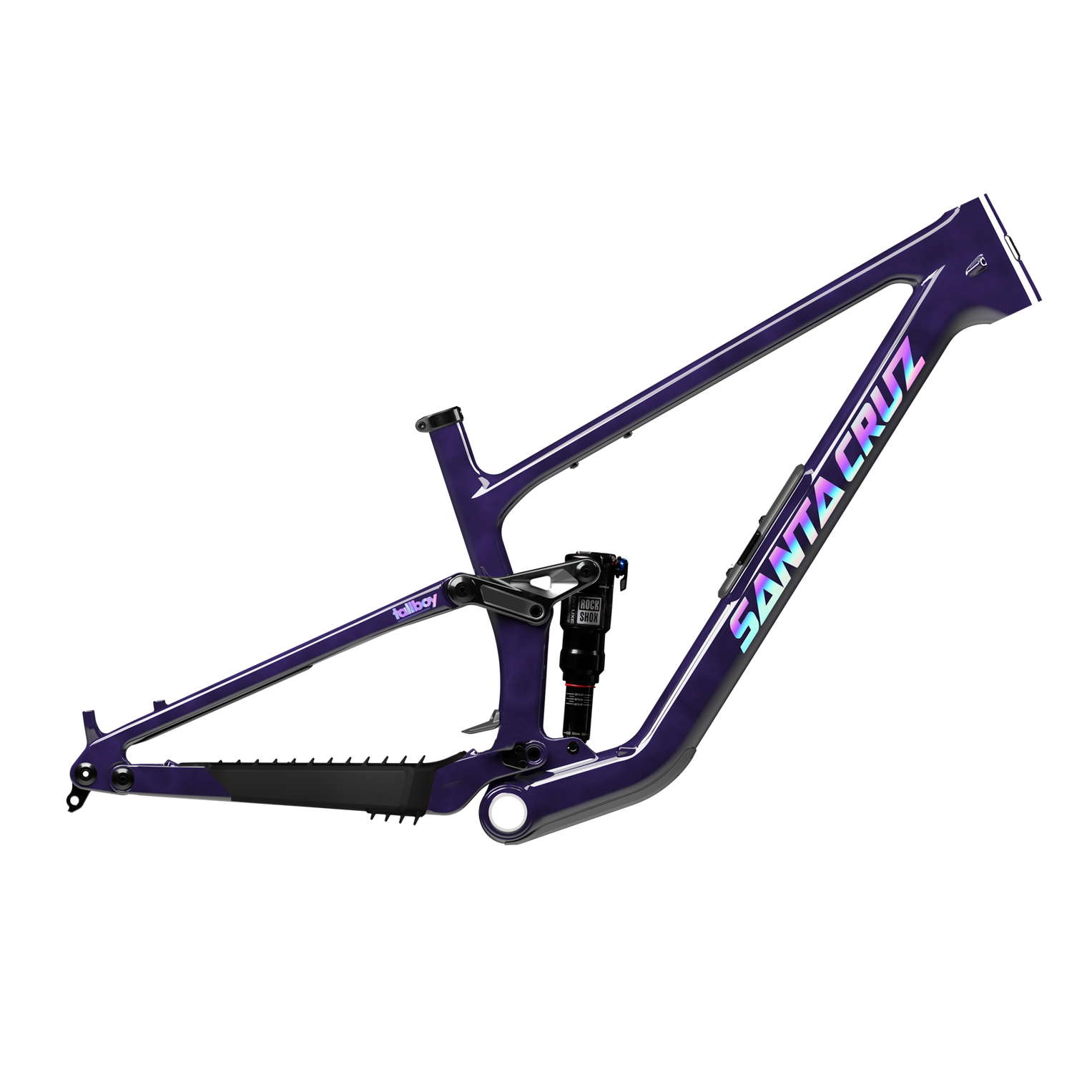

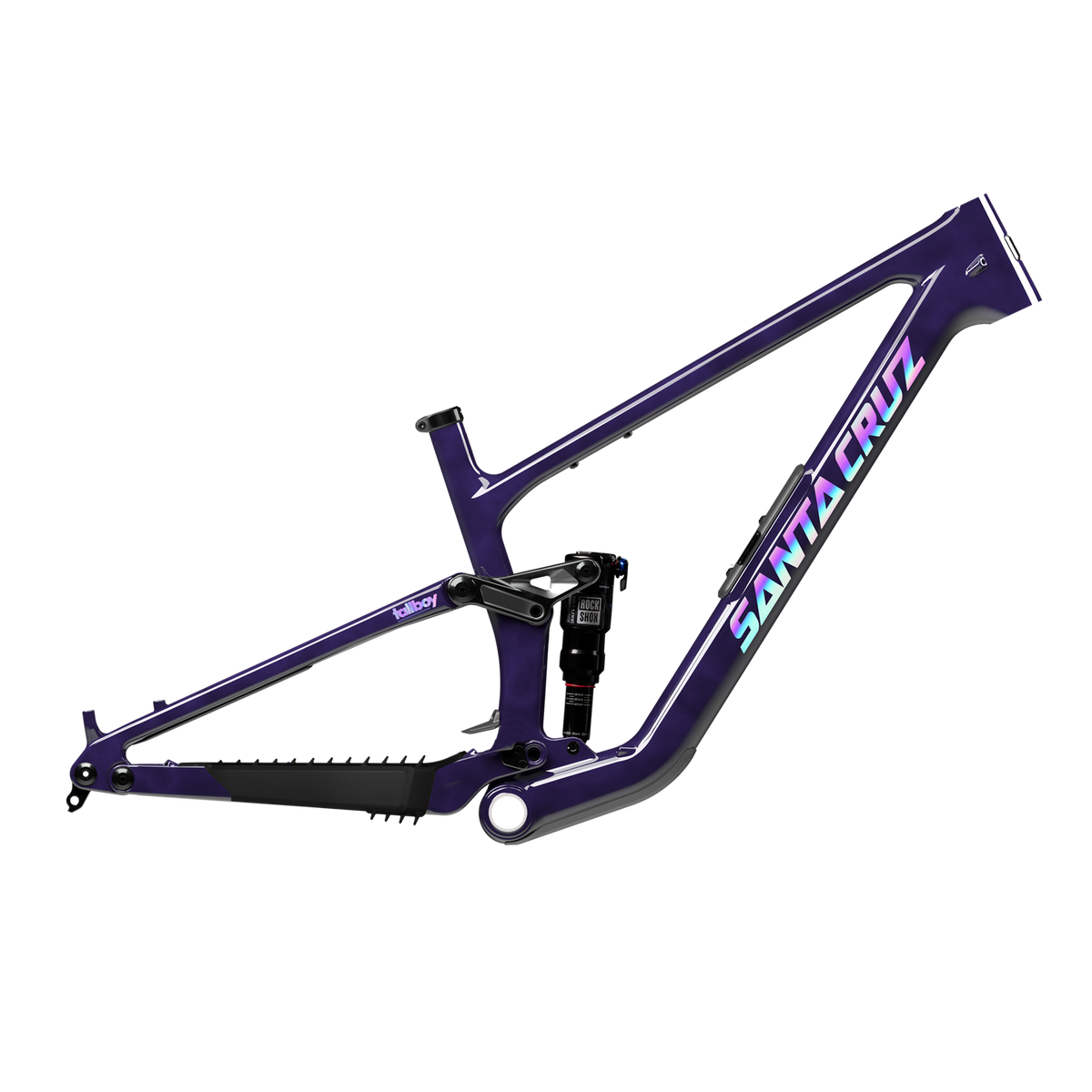

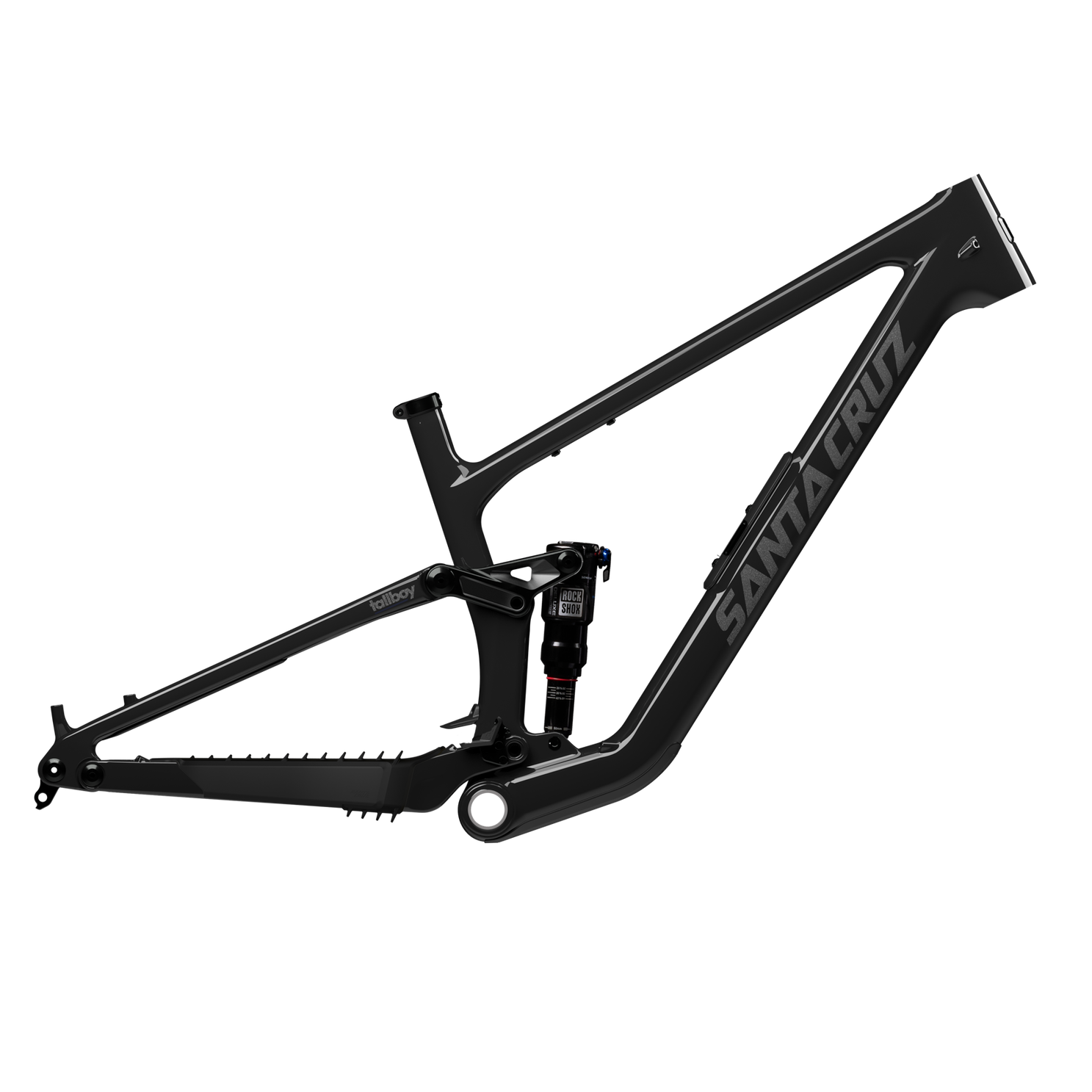

SANTA CRUZ TALLBOY CC FRAMESET (6TH GEN)

The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.

SPECIFICATIONS

• Sizes
  M, L, XL
• Colors
  Gloss Day Green, Matte Deep Purple
• Frame
  Carbon CC 29" 130mm Travel 4-Bar

• Travel
  130mm
• Shock
  RockShox Deluxe, 185x50mm Trunnion
• Wheel Size
  29"
• Weight
  5.73 lbs / 2.6 kg

• Bottom Bracket
  73mm Threaded
• Rear Brake Mount
  Postmount 180mm

• Chainguide Standard
  Integrated upper guide
• Chainline
  55
• Derailleur Hanger
  SRAM UDH
• Downtube Storage
  Glovebox
• Shock Length
  185x50mm Trunnion
• Fork Axle to Crown
  554mm
• Fork Compatibility
  140-150mm
• Fork Offset
  44mm
• Headset
  Integrated (IS41/52)
• Max Chainring Size
  34T
• Max Rotor Size
  203mm
• Max Tyre Clearance
  2.4"
• Rear Spacing
  148x12mm
• Rear Travel
  130mm, recommended sag 30%
• Seat Clamp Diameter
  36.4mm
• Seat Post Diameter
  31.6mm
• Water Bottle Mount
  1
