SANTA CRUZ NOMAD CC X0 AXS RSV - COIL (7TH GEN)

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

This top-tier build pairs the CC carbon frame with Fox Factory suspension—a 38 Float Factory Grip X2 fork and DHX2 Factory coil shock—plus SRAM's wireless X0 Eagle AXS T-Type drivetrain, SRAM Maven Silver brakes with 200mm rotors, and Reserve 30|HD carbon wheels laced to DT Swiss 350 hubs with the DEG DF anti-pedal-kickback rear hub.

SPECIFICATIONS

Frame

• Sizes
  S, M, L
• Colors

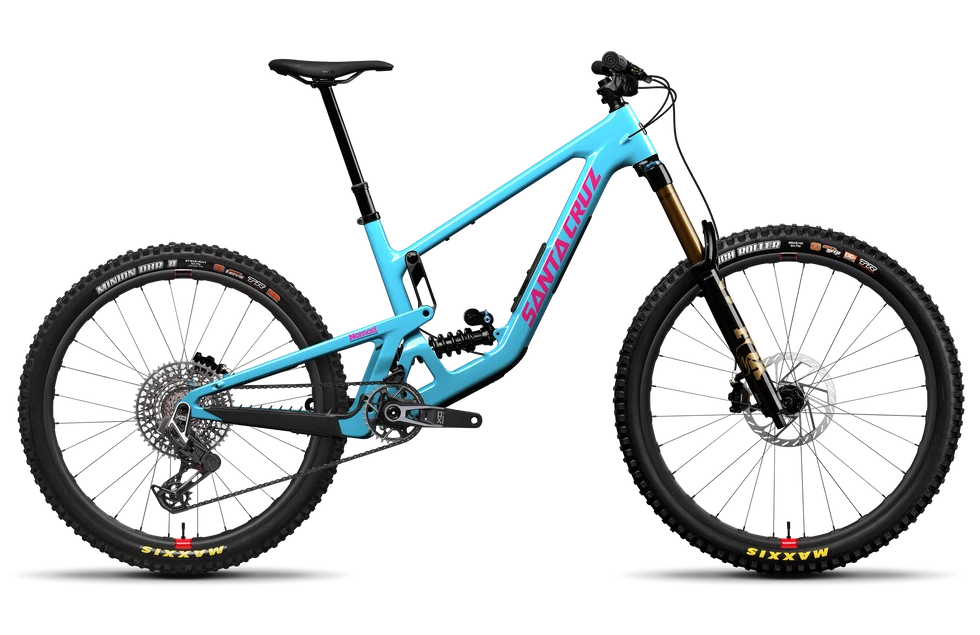

  Gloss Aqua Magenta, Matte Metallic Earth
• Frame
  Carbon CC MX 170mm Travel VPP™

• Travel
  170mm Front / 170mm Rear
• Wheel Size
  MX (29" front, 27.5" rear)
• Weight
  33.83 lbs / 15.34 kg

• Bottom Bracket Shell
  73mm threaded
• Rear Brake Mount
  Postmount 200mm
• Chainguide Standard
  Integrated upper guide+2-bolt ISCG 05 bash mount

• Chainline
  55mm

• Downtube Storage
  Glovebox V2
• Fork Axle to Crown
  588mm
• Fork Compatibility
  170-180mm
• Fork Offset
  44mm
• Headset
  Integrated (IS41/52)
• Max Chainring Size
  36T
• Max Rotor Size
  223mm
• Rear Spacing
  148mm

• Recommended Sag
  30%
• Seat Clamp Diameter
  36.4mm
• Seat Post Diameter
  31.6mm
• Shock Length
  230x65mm
• Shock Bushing Size - Front
  30x8
• Shock Bushing Size - Rear
  30x8
• UDH Compatibility
  Yes
• Water Bottle Mount
  1

Suspension

• Fork
  Fox 38 Float Factory, Grip X2, 170mm
• Shock
  Fox DHX2 Factory Coil, 230x65mm
  Spring: S: 400lb, M: 450lb, L: 500lb, XL-XXL: 550lb

Drivetrain

• Bottom Bracket
  SRAM DUB 73mm MTB Wide BB

• Cassette
  SRAM X0 1295 Eagle T-Type, 10-52t
• Chain
  SRAM X0 Eagle T-Type, Flattop, 12spd
• Chainguide
  OneUp Chainguide
• Crankset
  SRAM X0 Eagle DUB T-Type, 32T, S: 165mm, M-XXL: 170mm

• Rear Derailleur
  SRAM X0 Eagle AXS T-Type, 12spd
• Right Shifter
  SRAM AXS Pod Controller Rocker


Brakes

• Brakes
  SRAM Maven Silver
• Rotor
  Front & Rear: SRAM HS2 200mm


Cockpit

• Grips
  Santa Cruz Bicycles House Grips
• Handlebar
  OneUp Carbon Bar, 35mm clamp diameter
  S: 760mm 20mm Rise
  M-XXL: 800mm 35mm Rise

• Headset
  Cane Creek 50 IS Integrated Headset

• Saddle
  WTB Silverado Medium Fusion, CroMo SL

• Seatpost
  OneUp Dropper Post, 31.6mm, S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

• Stem
  OneUp Enduro Stem All Sizes: 42mm


Wheels

• Front Rim
  Reserve 30|HD Carbon

• Front Hub
  DT Swiss 350, 15x110, 6-Bolt, 28h

• Front Tyre
  Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
• Rear Rim
  Reserve 30|HD Carbon
• Rear Hub
  DT Swiss 350 DEG DF, 12x148, XD, 6-Bolt, 28h
• Rear Tyre
  Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
• Valves
  Reserve Fillmore Valves


More info at Santa Cruz Nomad 7 CC X0 AXS RSV Coil Complete Bike
