SANTA CRUZ NOMAD CC 90 (7TH GEN)

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

SPECIFICATIONS

Frame

• Sizes
  S, M, L
• Colors

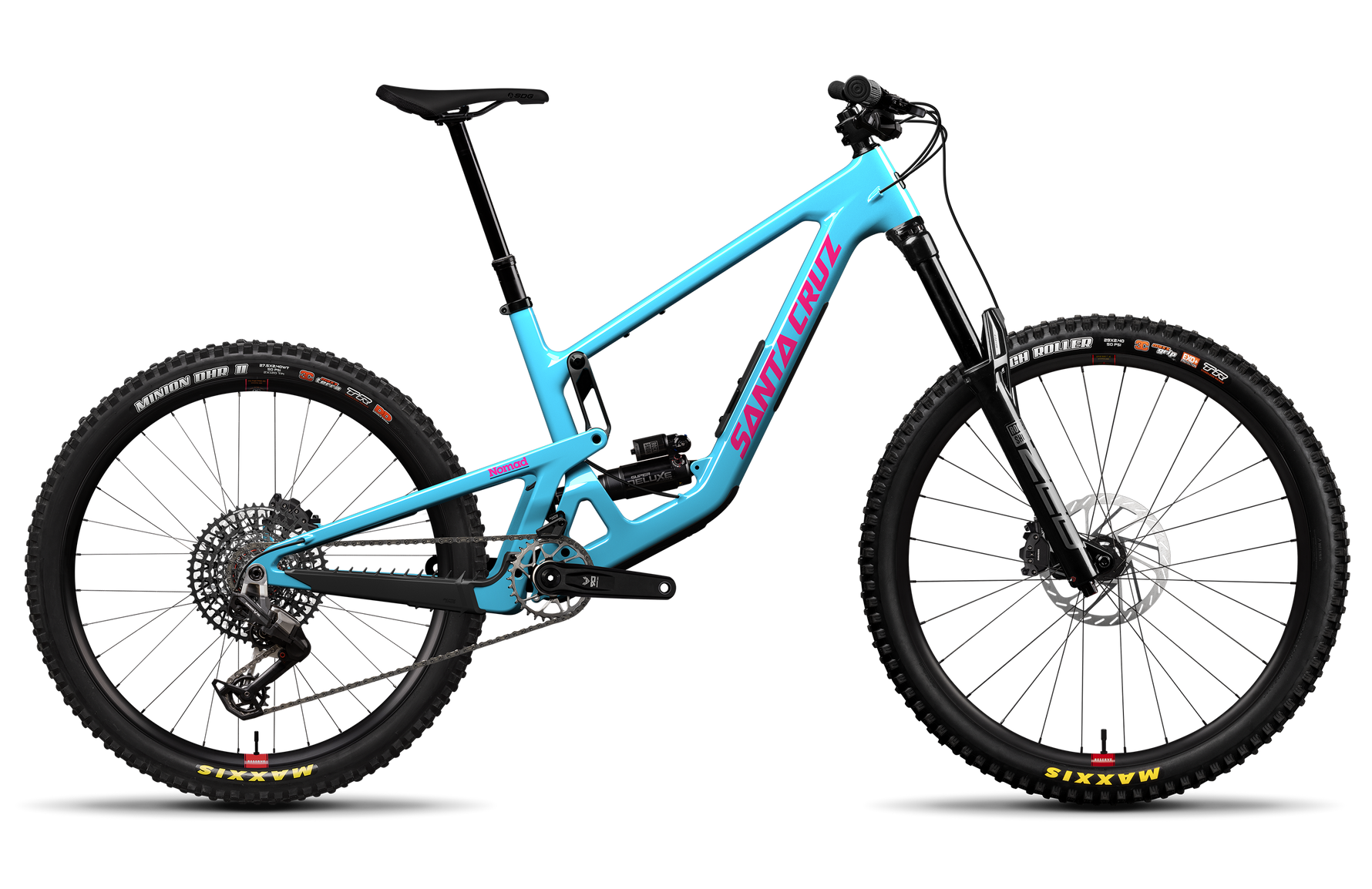

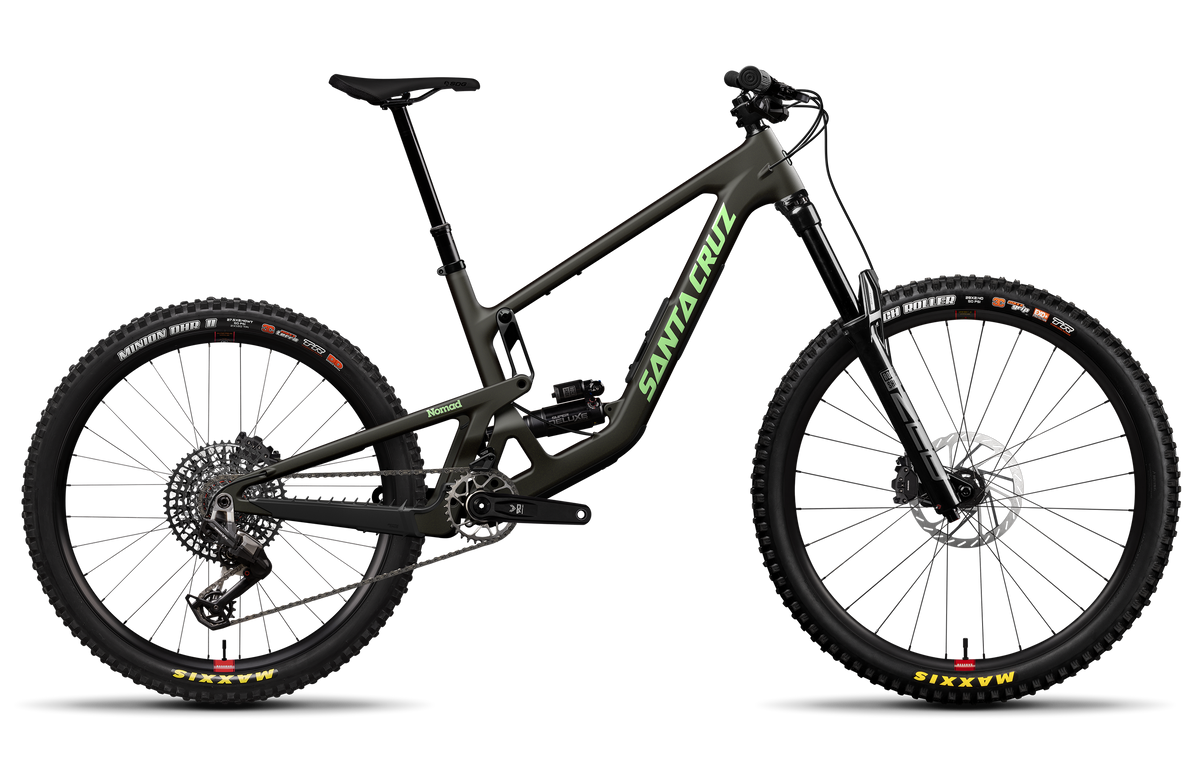

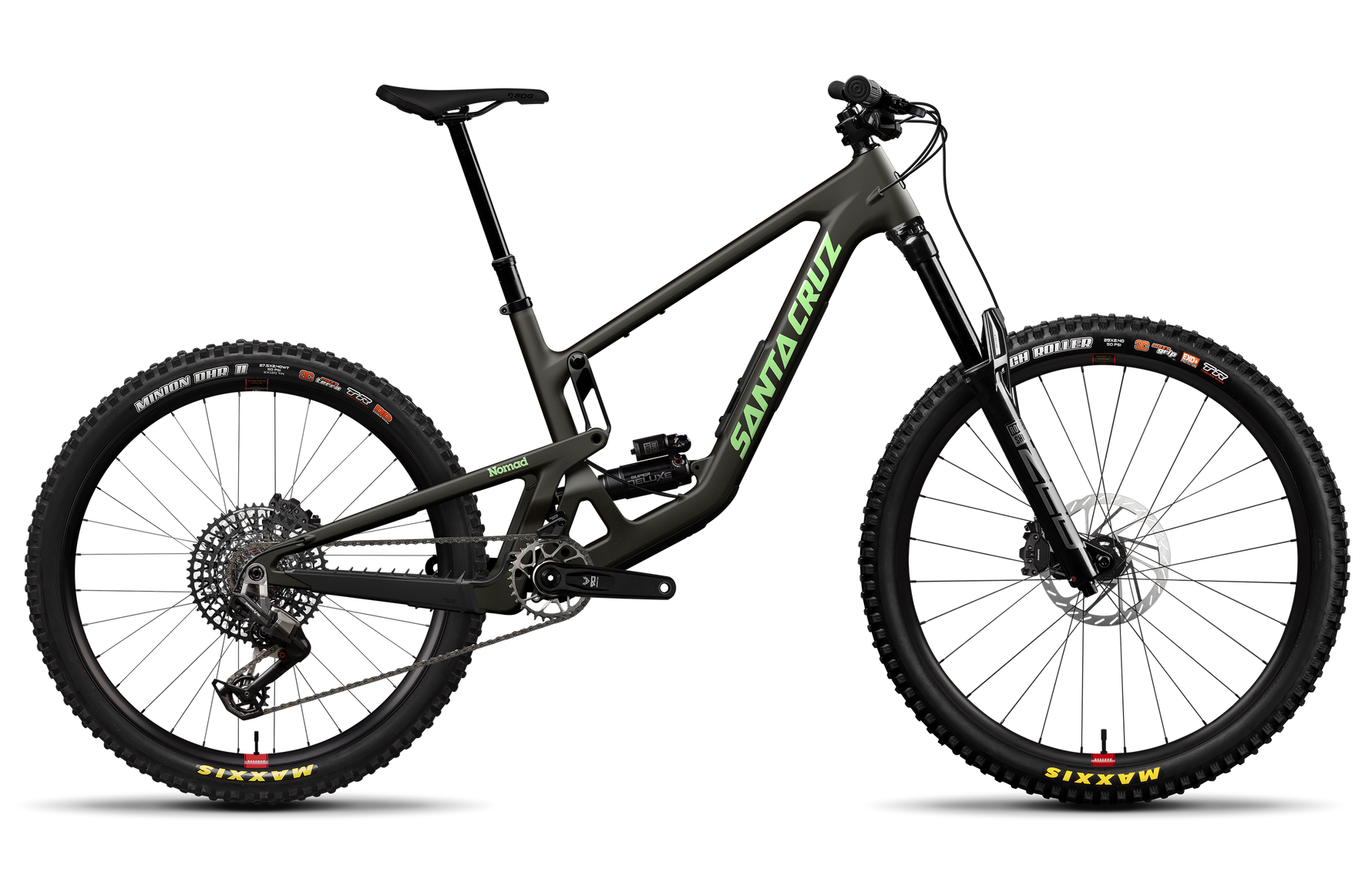

  Gloss Aqua Magenta, Matte Metallic Earth
• Frame
  Carbon CC MX 170mm Travel VPP™

• Wheel Size
  MX (29" front, 27.5" rear)
• Weight
  35.15 lbs / 15.94 kg

• Bottom Bracket Shell
  73mm threaded
• Rear Brake Mount
  Postmount 200mm
• Chainguide Standard
  Integrated upper guide+2-bolt ISCG 05 bash mount

• Chainline
  55mm

• Downtube Storage
  Glovebox
• Fork Axle to Crown
  588mm
• Fork Compatibility
  170-180mm
• Fork Offset
  44mm
• Headset
  Integrated (IS41/52)
• Max Chainring Size
  36T
• Max Rotor Size
  223mm
• Rear Spacing
  148mm

• Recommended Sag
  30%
• Seat Clamp Diameter
  36.4mm
• Seat Post Diameter
  31.6mm
• Shock Bushing Size - Front
  30x8
• Shock Bushing Size - Rear
  30x8
• UDH Compatibility
  Yes
• Water Bottle Mount
  1

Suspension

• Fork
  RockShox Zeb Select, 170mm
• Shock
  RockShox Super Deluxe Select, 230x65mm

Drivetrain

• Bottom Bracket
  SRAM DUB 73mm MTB Wide BB

• Cassette
  SRAM GX 1275 Eagle T-Type, 10-52t
• Chain
  SRAM GX Eagle T-Type, Flattop, 12spd
• Chainguide
  OneUp Chainguide
• Crankset
  SRAM 90 Eagle DUB T-Type, 32T, S: 165mm, M-XXL: 170mm

• Rear Derailleur
  SRAM 90 Eagle T-Type, 12spd
• Right Shifter
  SRAM 90 Eagle T-Type, 12spd


Brakes

• Brakes
  SRAM Maven Base
• Rotor
  Front & Rear: SRAM HS2 200mm


Cockpit

• Grips
  Santa Cruz Bicycles House Grips
• Handlebar
  OneUp Aluminum Bar, 35mm, S: 800mm, 20mm Rise, M-XXL: 800mm, 35mm Rise
• Headset
  Cane Creek 50 IS Integrated Headset

• Saddle
  SDG Bel-Air V3 Lux-Alloy

• Seatpost
  OneUp Dropper Post, 31.6mm, S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

• Stem
  OneUp Enduro Stem All Sizes: 42mm


Wheels

• Front Rim
  Reserve 30|TR AL
• Front Hub
  DT Swiss 370, 15x110, 6-Bolt, 28h

• Front Tyre
  Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
• Rear Rim
  Reserve 30|HD AL
• Rear Hub
  DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h
• Rear Tyre
  Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
• Valves
  Reserve Fillmore Valves
