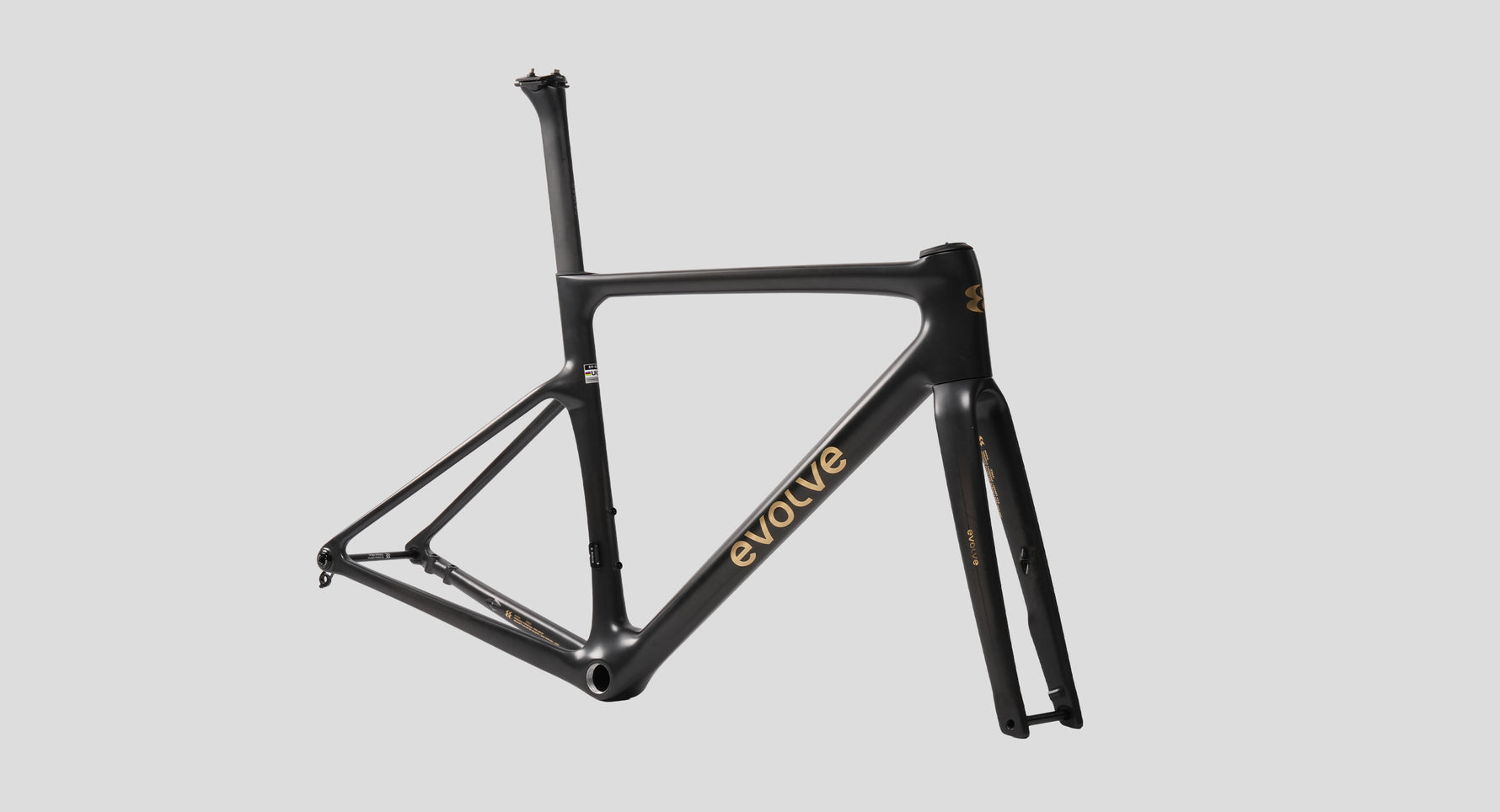

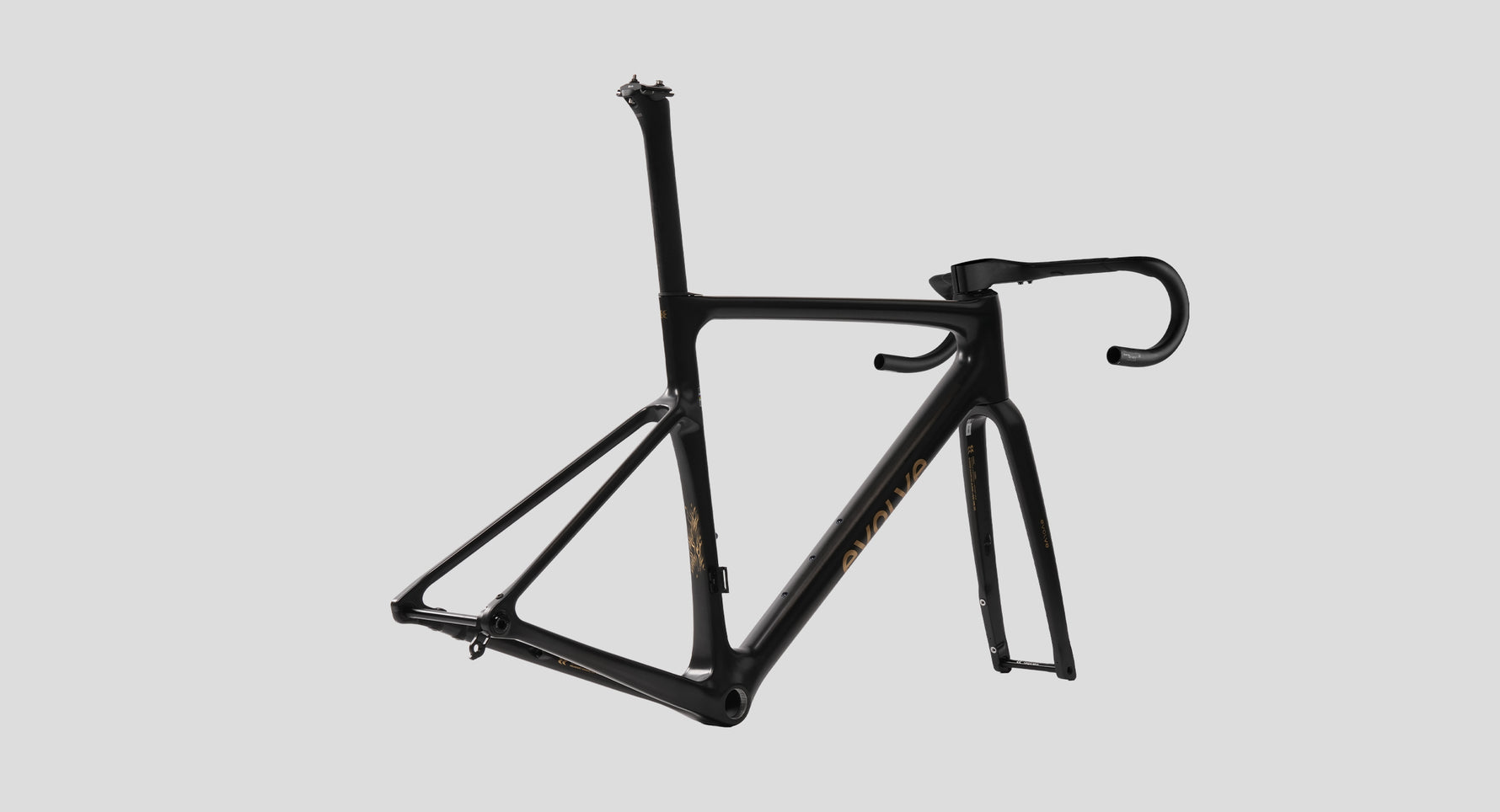

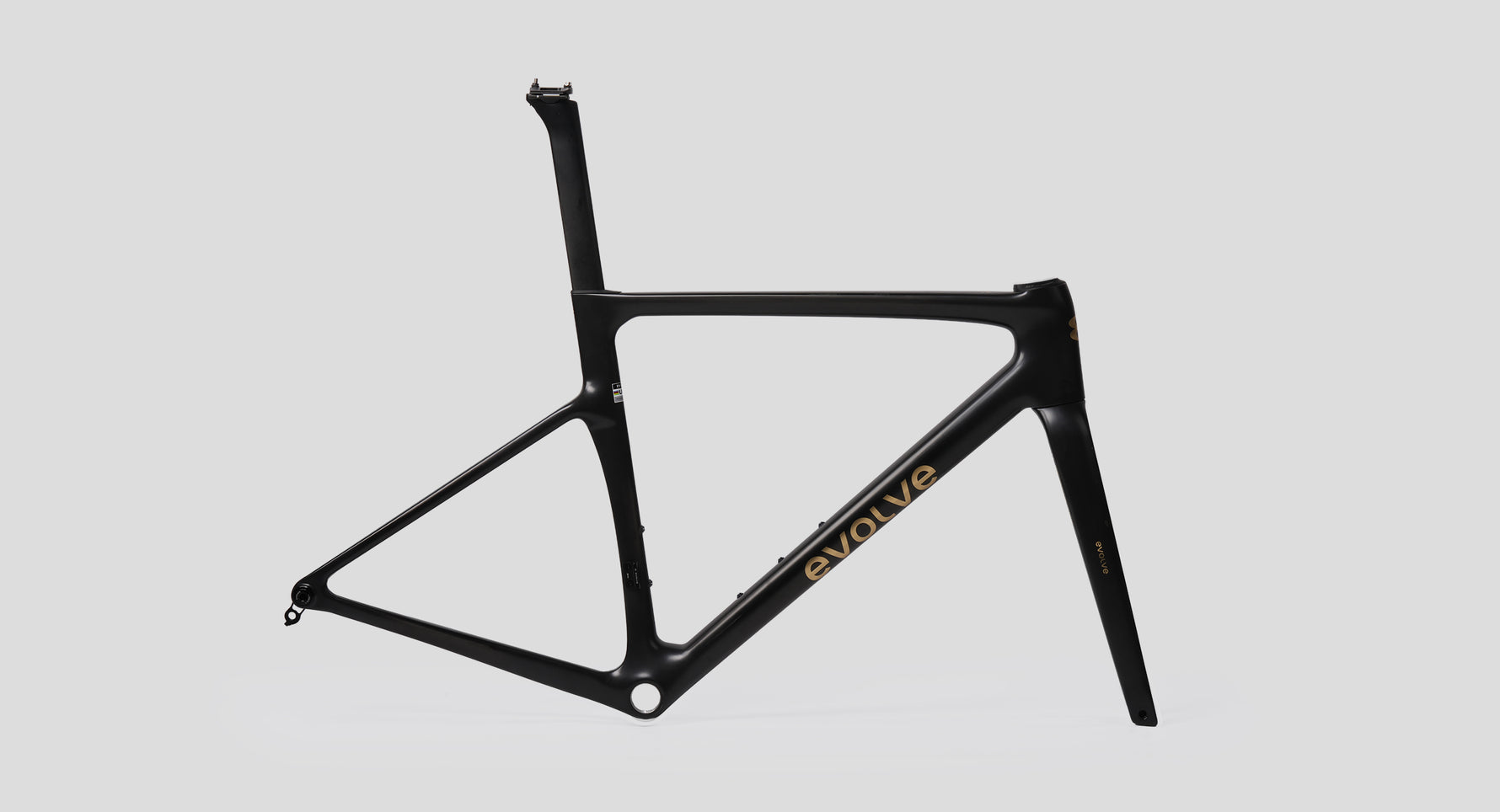

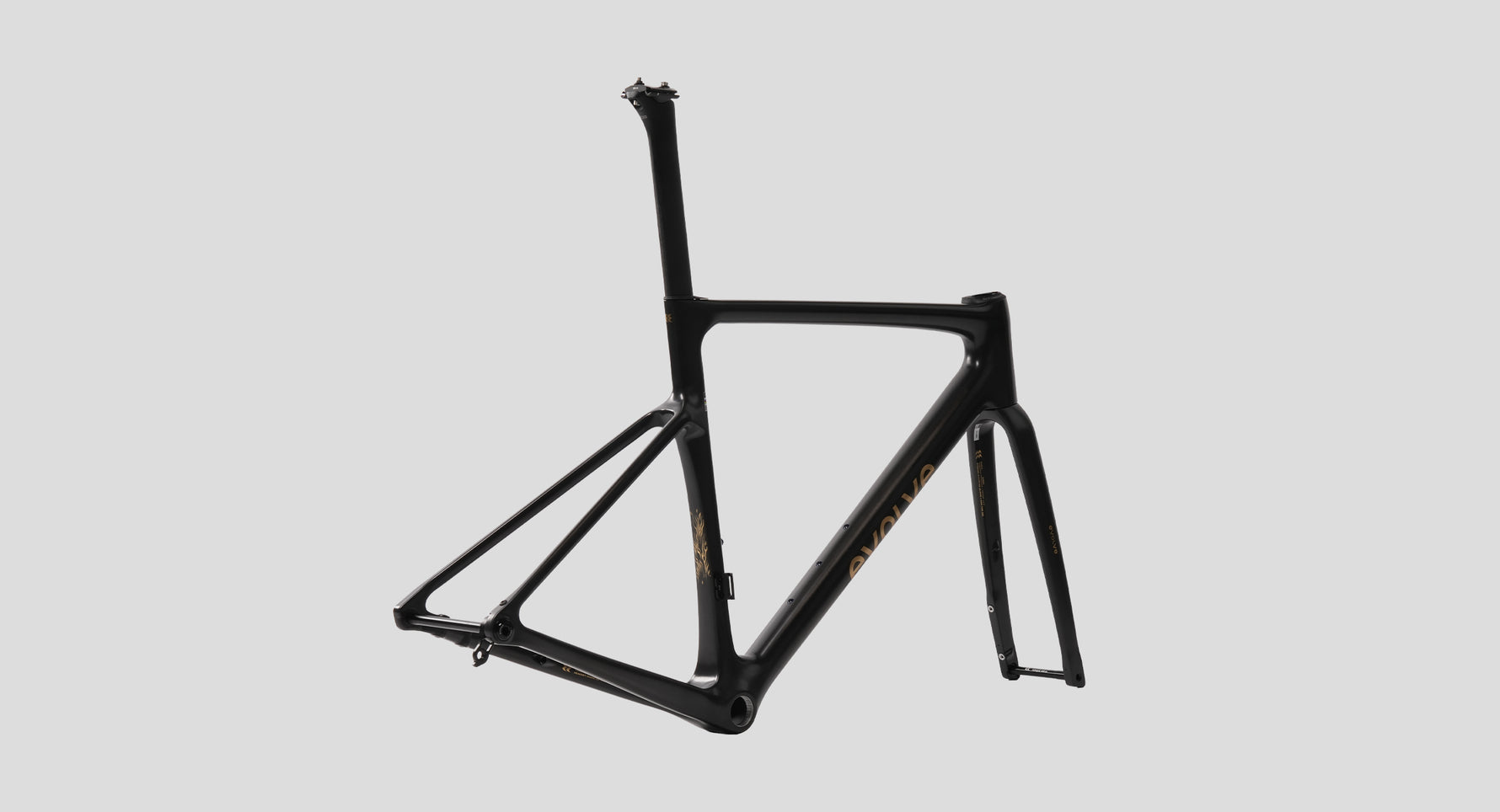

SPECIFICATIONS
LIGHT AS THE WIND, DEFINING IMAGINATION
- 650g - M-Sized Frame Weight (unpainted)
THE BEAUTY OF GEOMETRY THE SOUL OF CYCLING
- 6 sizes – suitable for riders with heights from 146cm to 202cm
- STR values – 1.36 / 1.40 / 1.42 / 1.44 / 1.46 / 1.50, suitable for XS–XL sizes
- 2 different offset forks, 3 different BB drops – maintaining consistent handling across sizes
TOP-TIER MATERIALS EXCEPTIONAL PERFORMANCE
- T1100 & T800; M40 – high-quality Toray carbon fabric
- 12% ↑ – special resin formula increases rigidity by 12% compared to traditional resins
PREMIUM COMPONENTS SUPERIOR PERFORMANCE
- CeramicSpeed SLT headset bearings
- BSA threaded bottom bracket
- SRAM UDH derailleur hanger

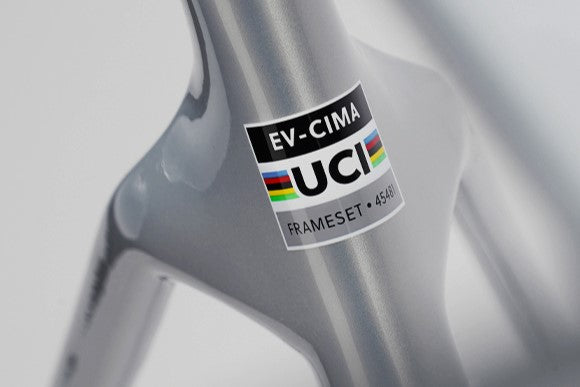

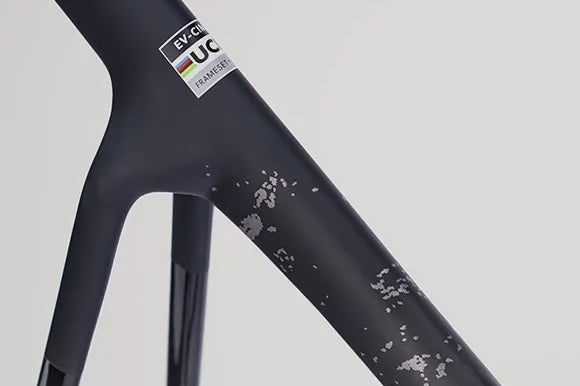

WORLDWIDE PROFESSIONAL RECOGNITION
- In-House Testing - evolve® maintains strict standards across 21 testing items for frame and fork, ensuring enhanced reliability and riding safety.
- Silverstone Sports Engineering Hub wind tunnel testing
- Validating and ensuring greater aerodynamic performance.
SPECIFICATIONS

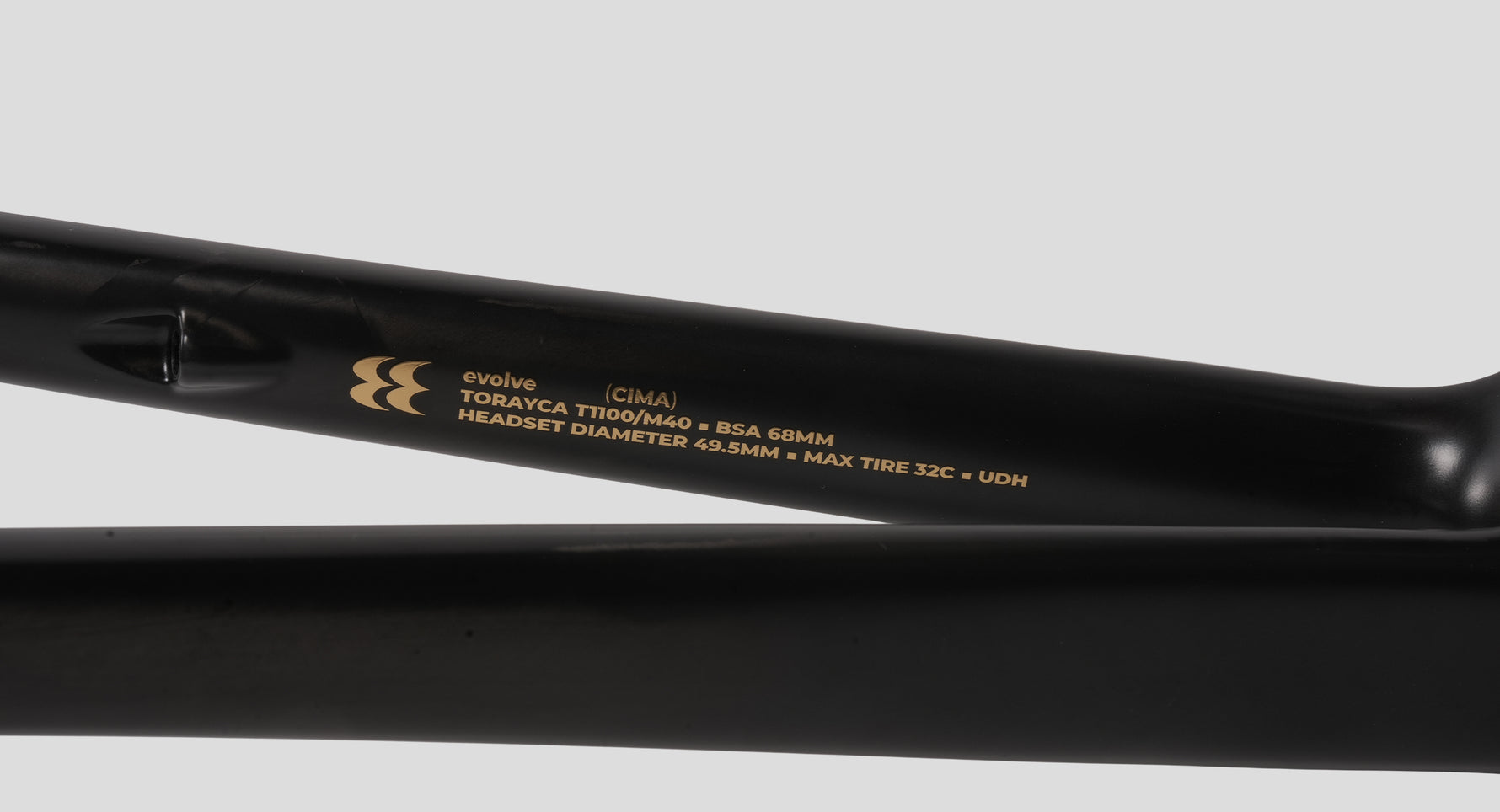

| Frame Material | Carbon T1100 & T800; M40 |
| Frame Sizes | XS, S, M, ML, L, XL |
| Frame Weight | 650g (M-sized; unpainted) |
| Fork | 40.2/44mm Offset |
| Fork Weight | 360g |
| Headset | CeramicSpeed SLT Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |
| Head Tube Diameter | 49.5mm |
| Seatpost | evolve® Seatpost |
| Seatpost Weight | 140g（Parts included） |
| Saddle Rail Clamps | 7×7, 7×9, 7×10 |
| Bottom Bracket | BSA Threaded Bottom Bracket, 68mm Width |
| Cable Routing | Internal |
