Reserve

DESCRIPTION

The all-new Reserve 30|DH - a wheelset built to withstand the biggest hits, the toughest terrain, and the most demanding downhill tracks in the world. Designed with direct input from the Santa Cruz Syndicate and tested at Red Bull Hardline events and World Cup DH races, 30|DH wheels deliver the strength, reliability, and precision handling you need to push your limits.

These wheels are built to take on everything from race runs to bike park laps. A redesigned carbon layup delivers increased impact resistance, and a refined profile improves compliance. If you’re looking for unparalleled durability without sacrificing speed, Reserve 30|DH are ready to drop in.

SPECIFICATIONS

• Designed For
  DH Riding and Racing
• Hub
  DT Swiss 350 DEG
• Hub Spacing
  DH: 20x110 F - 12x157 R

• Brake Rotor Mounting
  6-bolt
• Spoke Count
  28 F - 32 R
• Wheelset Weight
  29" DT 350 - 2036g
• Rim Weight
  29" F 585g - R 645g - 27.5" R 540g
• Inner Width
  30mm
• External Width
  38mm
• Rim Depth
  20mm
• Asymmetric Offset
  3.6mm
• ERD
  29" 599mm - 27.5" 559mm
• Recommended Tire Dimensions
  2.4" to 2.6"
• E-Bike Approved
  Yes

WHAT'S IN THE BOX

• 1x Complete wheelset
• 34mm Reserve Rim Tape (installed)
• 2x 50mm Fillmore Tubeless Valves (un-installed)
• User Manual

DESCRIPTION

Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. 30|HD wheels are specially designed for trail riding and the abuse that trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires.

SPECIFICATIONS

• Designed For
  Trail, All Mountain, Enduro, E-Bike

• Hub
  DT Swiss 350 DEG
• Hub Spacing
  DH: 25x110 F - 12x148 R

• Brake Rotor Mounting
  6-bolt
• Spoke Count
  28 F&R
• Wheelset Weight
  DT350 hubs, 29" 1791g, MX 1788g

• Rim Weight
  29" 516g, 27.5" 497g

• Inner Width
  30mm
• External Width
  37mm
• Rim Depth
  20mm
• Asymmetric Offset
  3.6mm
• ERD
  29" 598mm, 27.5" 559mm

• Recommended Tire Dimensions
  2.2" to 2.6"
• E-Bike Approved
  Yes

WHAT'S IN THE BOX

• 1x Complete wheelset
• 34mm Reserve Rim Tape (installed)
• 2x 50mm Fillmore Tubeless Valves (un-installed)
• User Manual

The fastest off-road wheels we’ve ever made. More grip, more speed, more protection against flats.

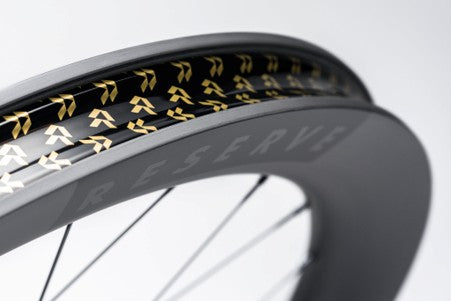

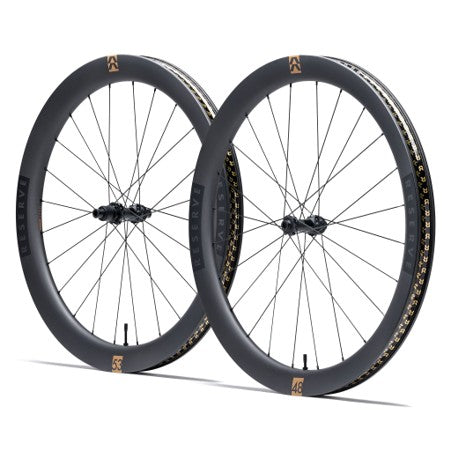

Made to deliver all-day speed across flat-out courses while providing predictable, smooth handling, 48|53 GR features our Turbulent Aero design. The shorter front rim prevents unpredictable handling in aggressive crosswinds, and the taller rear rim improves aerodynamics without affecting the bike's steering.

Every dimension of 48|53 GR is designed with speed in mind. The 44mm external width smooths airflow to maximize aerodynamic performance, while the 30mm internal width is optimized for modern gravel tires. Together, greater grip, stability, and confidence. Tying it all together is our lightweight hollow-hook construction, delivering exceptional strength and pinch-flat protection without the weight penalty.

DESCRIPTION

Building on our award-winning 52|63 wheel platform, 57|64 wheels are over 8% faster in wind tunnel testing, without adding a single gram of weight to the rim.

Designed with our latest Turbulent Aero refinements, it’s the ultimate wheelset for breakaways, sprints, and all-out speed. The 57mm tall front rim ensures confident handling in crosswinds, while the 64mm tall rear rim delivers relentless aero gains. Updated with our sleek new graphics, it’s fast; redefined.

SPECIFICATIONS

• Designed For
  Road racing, crits, and fast group rides
• Wheelset Weight
  DT 180 Dicut - 1554g , DT 240 - 1574 , DT 350 - 1634g
• ERD
  527mm (57), 515mm (64)
• Inner Width
  25.4mm Front, 24.4mm Rear
• External Width
  34.3mm Front, 32.5mm Rear
• Depth
  57mm Front, 64mm Rear
• Offset Rear
  1.3mm
• Recommended Tire Dimensions
  29 to 40mm
• Rim Weights
  465g (57), 525g (64)
• Spoke Count
  24
• Hub Spacing
  12X100mm/12X142mm
• Freehub Options
  XDR, HG-EV
• Disc Style Option
  Centerlock
• Tire Compatibility
  Tubeless, Clincher
• Rim Bead
  Semi-hooked

WHAT'S IN THE BOX

• 1x Complete wheelset
• XDr + HG-EV driver (DT 180 only)
• 29mm Reserve Rim Tape (installed)
• 2x 90mm Fillmore Tubeless Valves (un-installed)
• White Reserve Rim Decals (un-installed)
• User Manual
