sram

Gravel throws just about everything at your bike, and the RED XPLR AXS rear derailleur will happily take it all. Bring on the sticks, stones, and airport baggage abuse because the Full Mount derailleur design fits onto frames with the hangerless interface to make for the most robust and reliable gravel drivetrain possible. No adjustment screws mean setup is simpler than ever. And a surprise stick is no match for the Magic Wheel, as the debris-resistant lower pulley keeps the chain moving at all times. Purpose built for gravel, this 1x specific unit prioritizes shift precision and chain management no matter the terrain or conditions.

FEATURES

• 1x specific for use with 10-46T XPLR 13-speed cassette and road Flattop chains
• Hangerless Interface and Full Mount attachment allow for the most precise shifting and the ultimate resistance to impact
• Requires frame with UDH interface
• Simple setup with no adjustment screws
• Superior chain management with MTB-inspired spring clutch
• Replaceable and rebuildable parts
• Magic Wheel keeps the chain moving, even if debris enters the lower pulley
• Compatible with existing AXS batteries

• AXS Battery sold separately

SPECIFICATIONS

Model ID: RD-RED-1E-E1

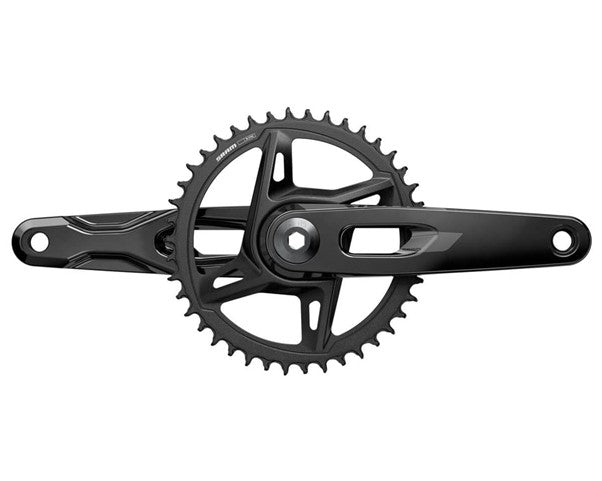

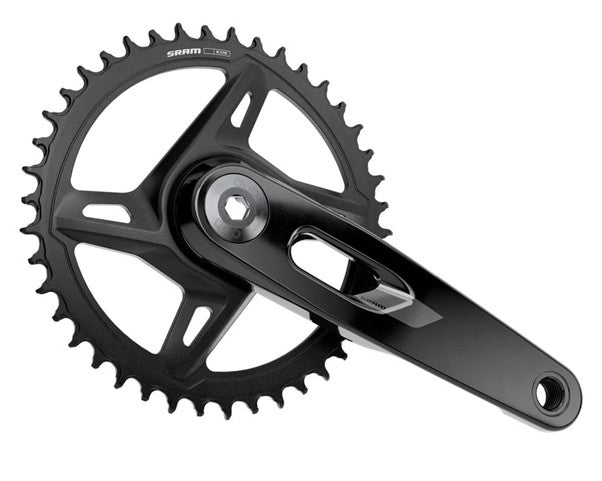

Gravel bikes deserve our lightest and stiffest cranks too. The RED XPLR crankset maximizes tire clearance and features our hollow carbon arms paired with the direct mount 1x chainring of your choice. Now available in 160mm crankarm length, this crank is built to please every rider, even those who prefer the unpaved.

FEATURES

• Single-ring drivetrain simplifies functionality and reduces weight
• Non-aero direct mount chainrings from 38T to 46T can be swapped with a single tool
• SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• Ultra-light hollow carbon fiber crankarms
• DUB bottom bracket adds durability and simplicity
• Can be upgraded to a power meter
• Available in 160, 165, 167.5, 170, 172.5, and 175 mm lengths


SPECIFICATIONS

Our light, stiff, and durable direct mount chainrings let you pick the exact gearing you want and quickly swap sizes. Our X-SYNC technology keeps the chain where you need it to be, too.

FEATURES

• X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• Laser-etched chainring finish is more durable
• X-Range gearing technology gives you more range and a smoother gear progression, so you’re always in the right gear
• Improved aerodynamics for time trial and triathlon
• Available in 48T and 50T

SPECIFICATIONS

If your ride doesn’t feel complete until you get a little dirt on your tires, you know the importance of capable components that can tackle anything. The RED XPLR eTap AXS rear derailleur is a dedicated 1x-specific unit designed for use with the XPLR 10-44 cassette. It makes for an uncluttered drivetrain that takes on pavement and singletrack with equal aplomb. Wireless and proven eTap shift logic, AXS connectivity and advanced chain management mean this derailleur does exactly what you want when you need it.

FEATURES

• Wireless electronic eTap shift logic for intuitive shifting, easy setup, and reliability
• 1x specific for use with 10-44T XPLR and 10-36T cassettes and Flattop chains. Not compatible with Eagle cassettes and chains.
• SRAM AXS enabled, allowing easy personalization
• Chain management keeps the drivetrain quiet and secure
• Large X-SYNC pulleys for increased durability and efficiency
• Compatible with existing eTap batteries
• AXS Battery sold separately

SPECIFICATIONS

Model ID: RD-RED1-E-D1

As the terrain gets tougher and the pace gets faster, you need the right range to keep moving and the best steps between gears to keep up. The 460% range of the RED XPLR XG-1391 13-speed cassette gives you the climbing gears you crave on gravel and the tight jumps you need on spicy sprints. Enjoy the highest shift quality on even the roughest roads thanks to optimized shift features on each cog, all from a cassette that weighs only 288 g.

FEATURES

• Expanded 460% range gives the added coverage 1x gravel riders demand
• For use with XPLR 1x 13-speed rear derailleurs
• Only 288 g
• Compatible with all road Flattop chains
• Compatible with XDR driver body


SPECIFICATIONS

Model ID: CS-XG-1391-E1

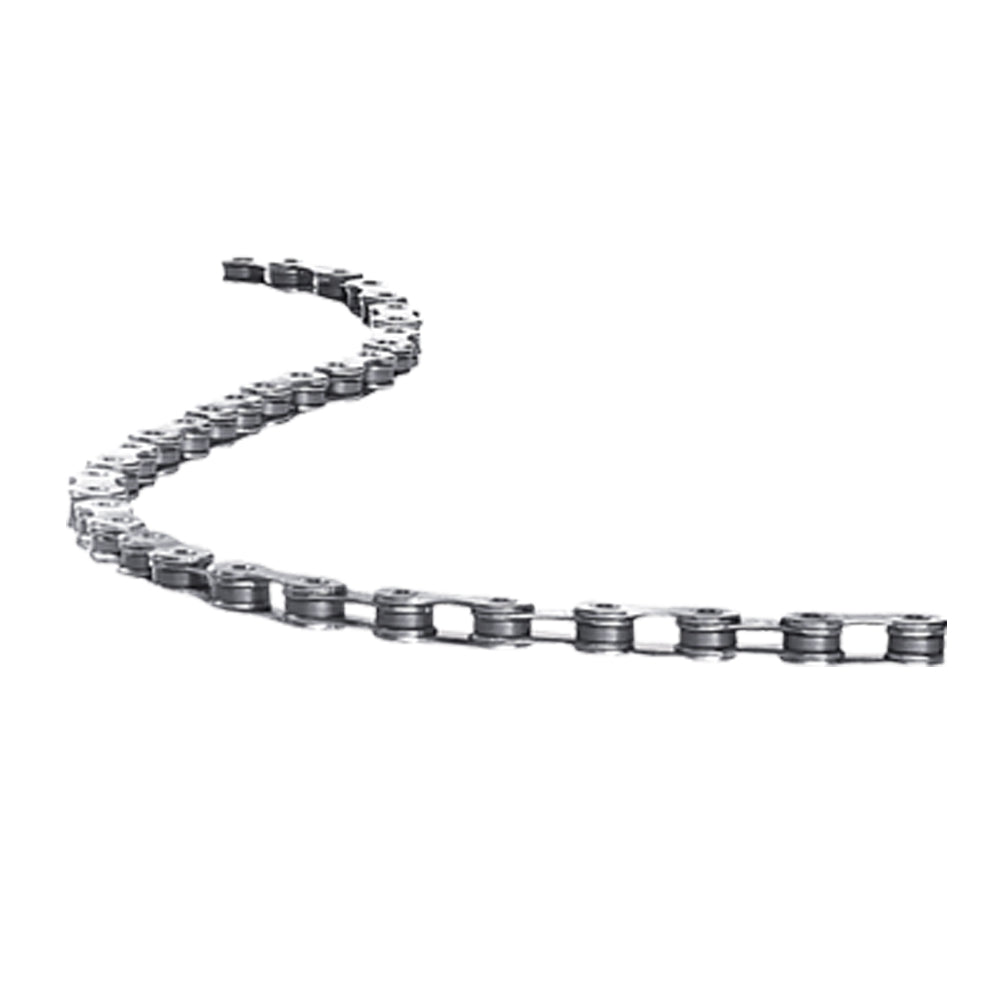

The SRAM RED 22 chain features more heavily chamfered outer plates for improved shifting and quieter running. Other advancements include a new inner plate finish plus chrome hardened pin construction, both for longer chain life. The HollowPin construction of SRAM's 11-speed chain provides smooth, precise shifting and weight savings without sacrificing strength.

FEATURES

• SRAM Road 11-speed compatible
• SRAM RED eTap compatible
• HollowPin technology equals strength, incredible shifting efficiency, and light weight
• PowerLock silver connector, easiest install in the world
• PowerLube: high performance grease

SPECIFICATION

DESCRIPTION

The newly redesigned Eagle AXS Rocker Paddle gives the rider a traditional, familiar interface for their cutting-edge electronic control. Effortless electronic shifting paired with a more traditional feeling actuation allows riders who are new to using AXS quick integration and provides another ergonomic option for those who have run AXS from the start. The controller’s functions are customizable through the AXS app, allowing you to assign any action to any button. With AXS you can truly make your cockpit your own.

FEATURES

• Available as a complete controller or standalone paddle option for all Eagle AXS controllers
• Customize in-board and outboard shift options
• AXS enabled components are able to be programmed and personalized using the SRAM AXS App.

SPECIFICATIONS

SPECIFICATION

A tight and consistent 13-tooth gap between chainrings delivers accurate and dependable shifting and is the core of our X-Range gearing. Our smaller chainrings paired with wide-range, 10t-start cassettes provide more efficiency and more time in the big ring. It’s modern gearing for today’s riders.

FEATURES

• Crisp and accurate front shifts
• Durable finish
• X-Range gearing technology gives you more range and a smoother gear progression, so you're always in the right gear

SPECIFICATIONS

The Flattop technology of the SRAM Rival chain creates a lighter, quieter, stronger chain that’s compatible with 12-speed 1x and 2x eTap AXS drivetrains. Ride far, long and fast—this chain can go the distance.

FEATURES

• Flattop technology allows for a narrower chain with quieter operation and increased strength and durability
• Use for both 1x and 2x eTap AXS
• Includes Flattop PowerLock

SPECIFICATIONS

Experience elevated front shifting. The Rival AXS front derailleur uses SRAM Yaw cage movement and auto trim for silent, rasp-free running, and a narrower cage shape that integrates with our X-Range chainring design for fast, clean shifts. Our setup tool means you’ll get the ideal position without any fuss, too.

FEATURES

• AXS enabled for easy wireless setup, monitoring, personalization, and reliability
• Refined cage shape results in faster and more accurate
  front shifts
• Easy setup with included tool SRAM Yaw cage technology
  optimized for use with X-Range chainrings
• Auto trim functionality for rasp free running
• Compatible with 46/33T, 48/35T, 50/37T chainring combinations

SPECIFICATIONS

DESCRIPTION

Power every ride. We’ve taken the reliability, elegance and features of Quarq’s legendary crank-based power meter and dropped the barrier to entry once again. This new power meter platform is entirely contained within the DUB spindle for clean integration that fits more bikes than ever.

FEATURES

• An elegant integrated design
• DUB-PWR spindle-based unit measures left side power to calculate total watts
• Proven Quarq reliability and accuracy
• Long battery life (400+ hours) to power a season of rides
• User replaceable lithium AAA battery
• DUB bottom bracket adds durability and simplicity
• Waterproof (IPX7 waterproof to 1 meter for 30 minutes)
• Lightweight (less than 40g heavier than standard crankset)

SPECIFICATIONS

Have it all: effortless one-finger braking and fully wireless shifting with peerless ergonomics. We redesigned our controls with a higher brake lever pivot, so stopping from the hoods uses 80% less effort than before. But stopping is only one part of the equation, so we increased the range of our Reach Adjust while also eliminating the possibility of finger pinch under hard braking. Lighter weight, more powerful braking, and better fit for a wider range of hand sizes: all that’s left for you is pedaling.
