SPECIFICATIONS

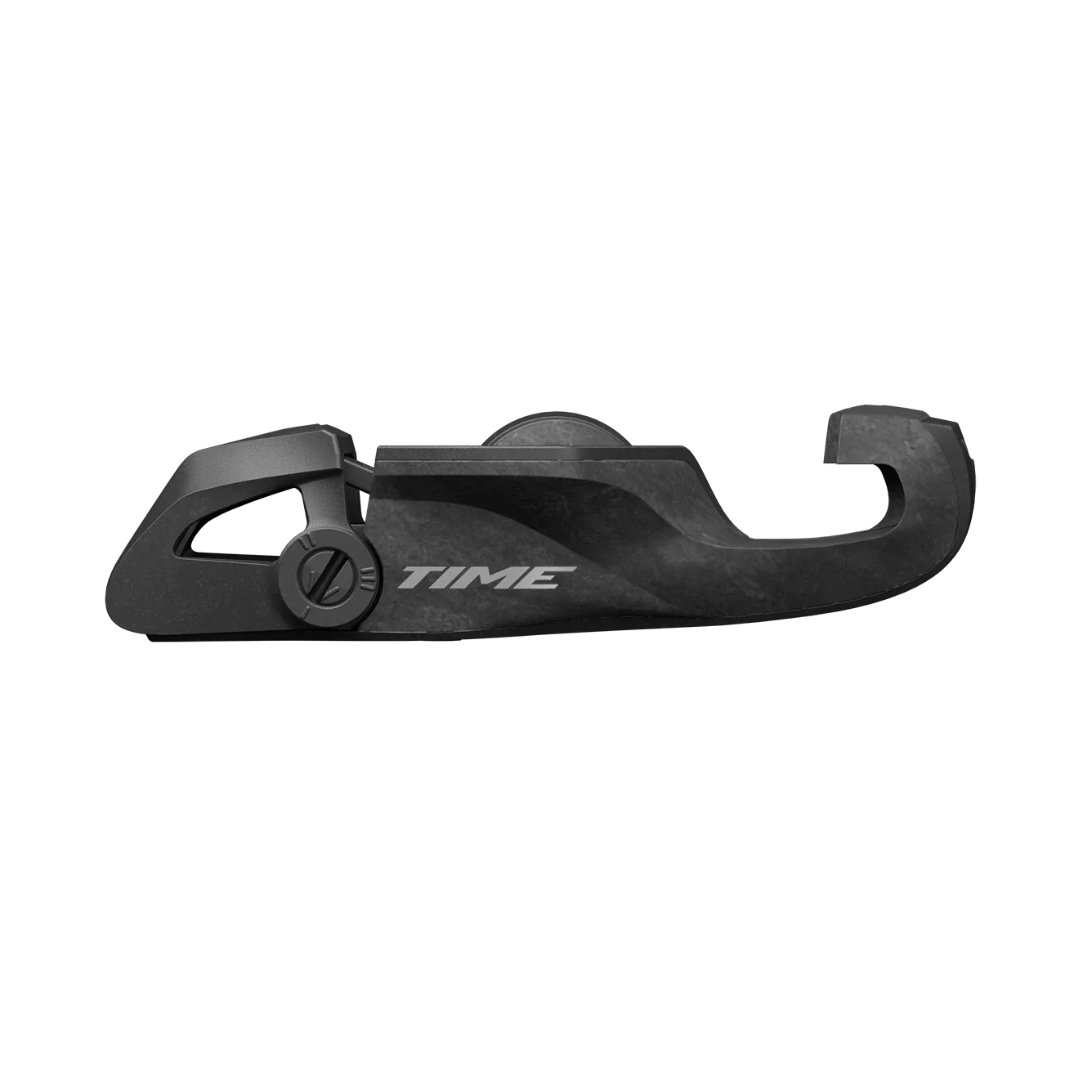

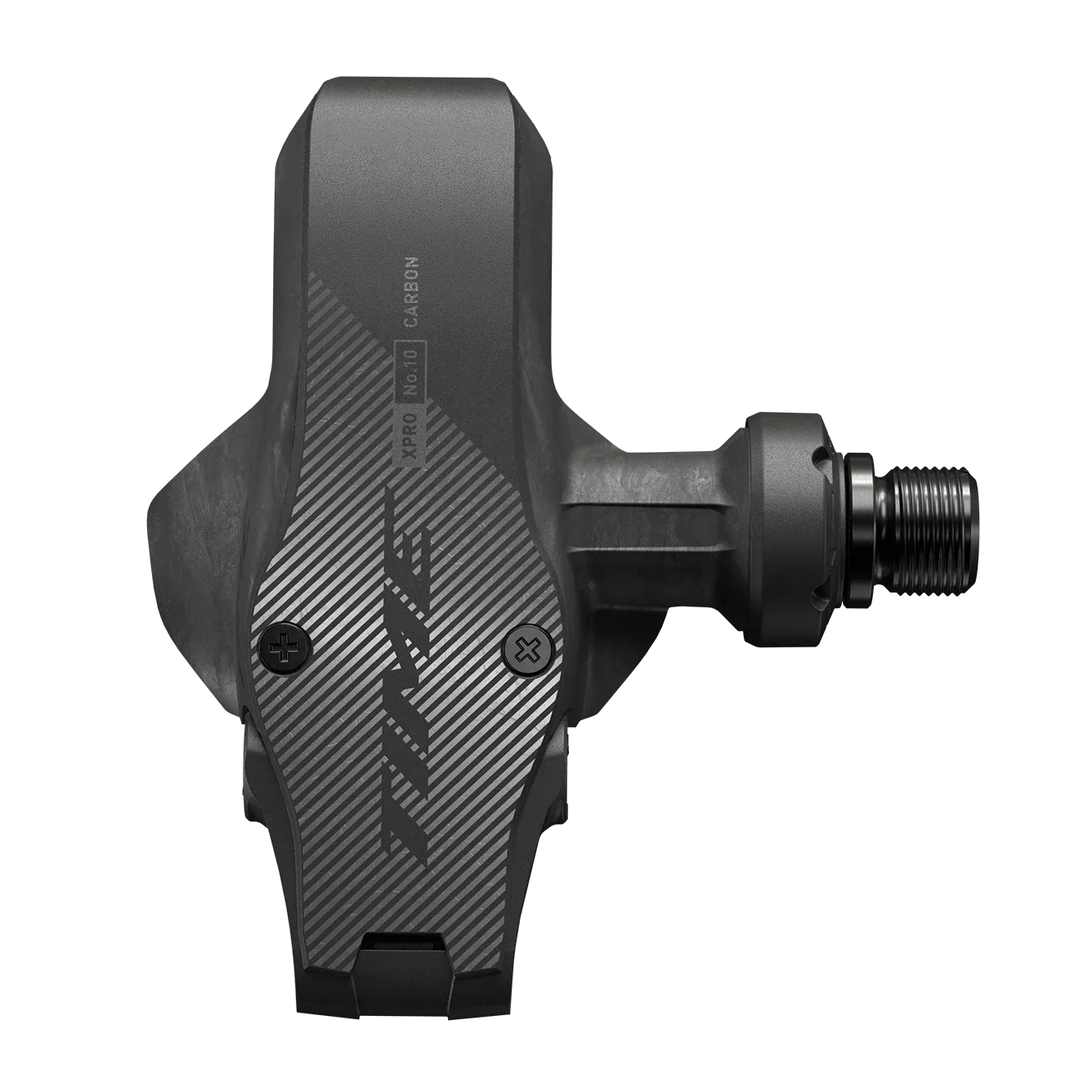

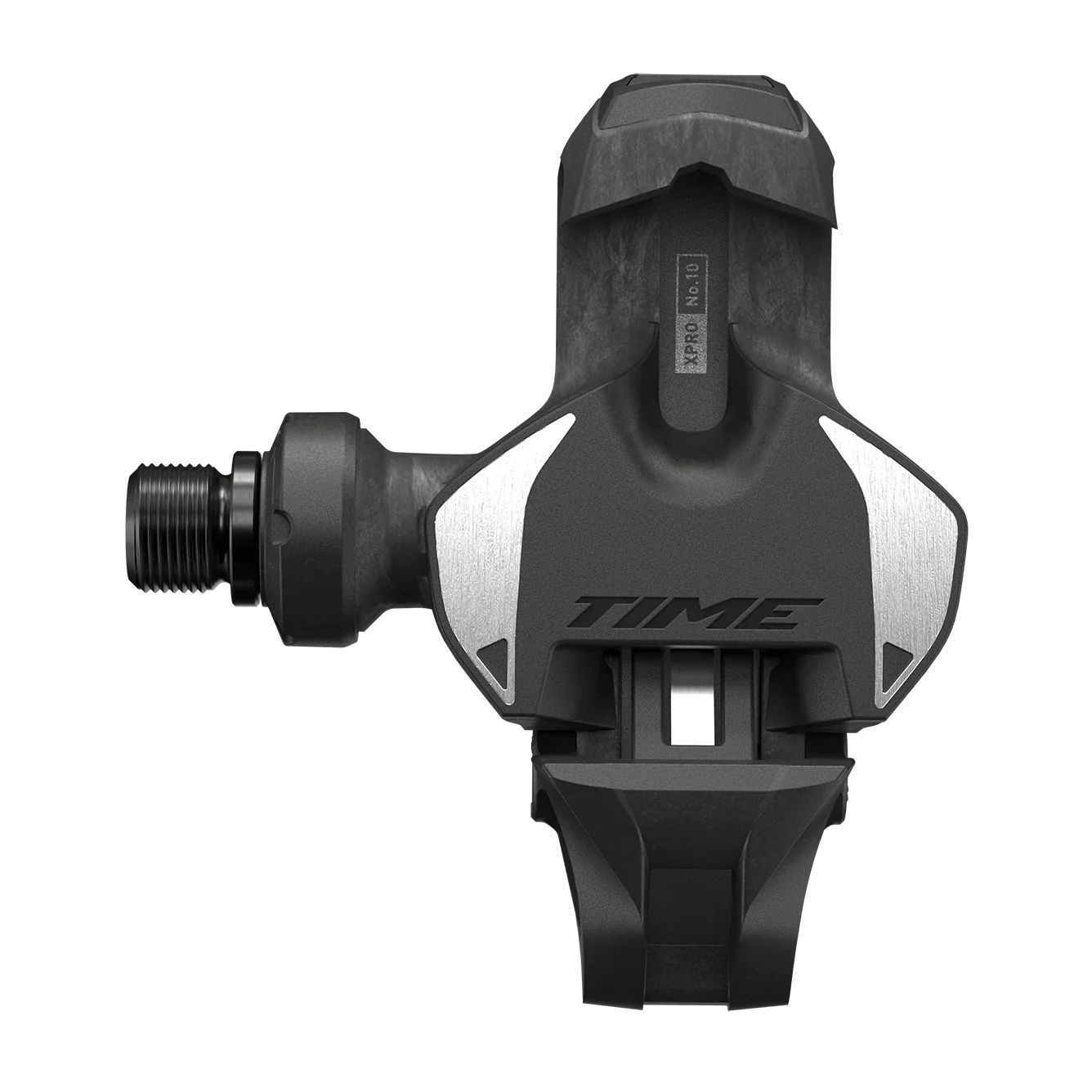

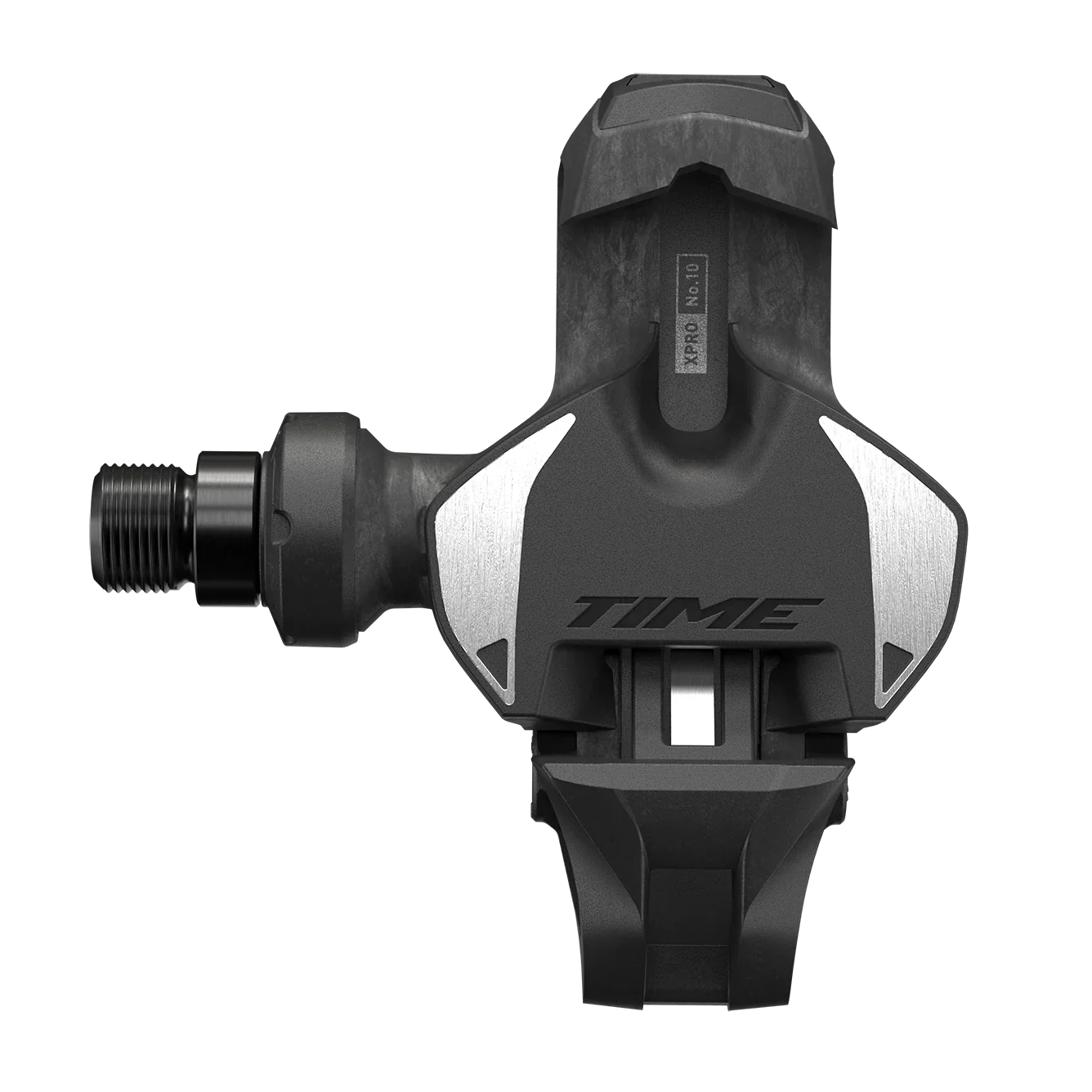

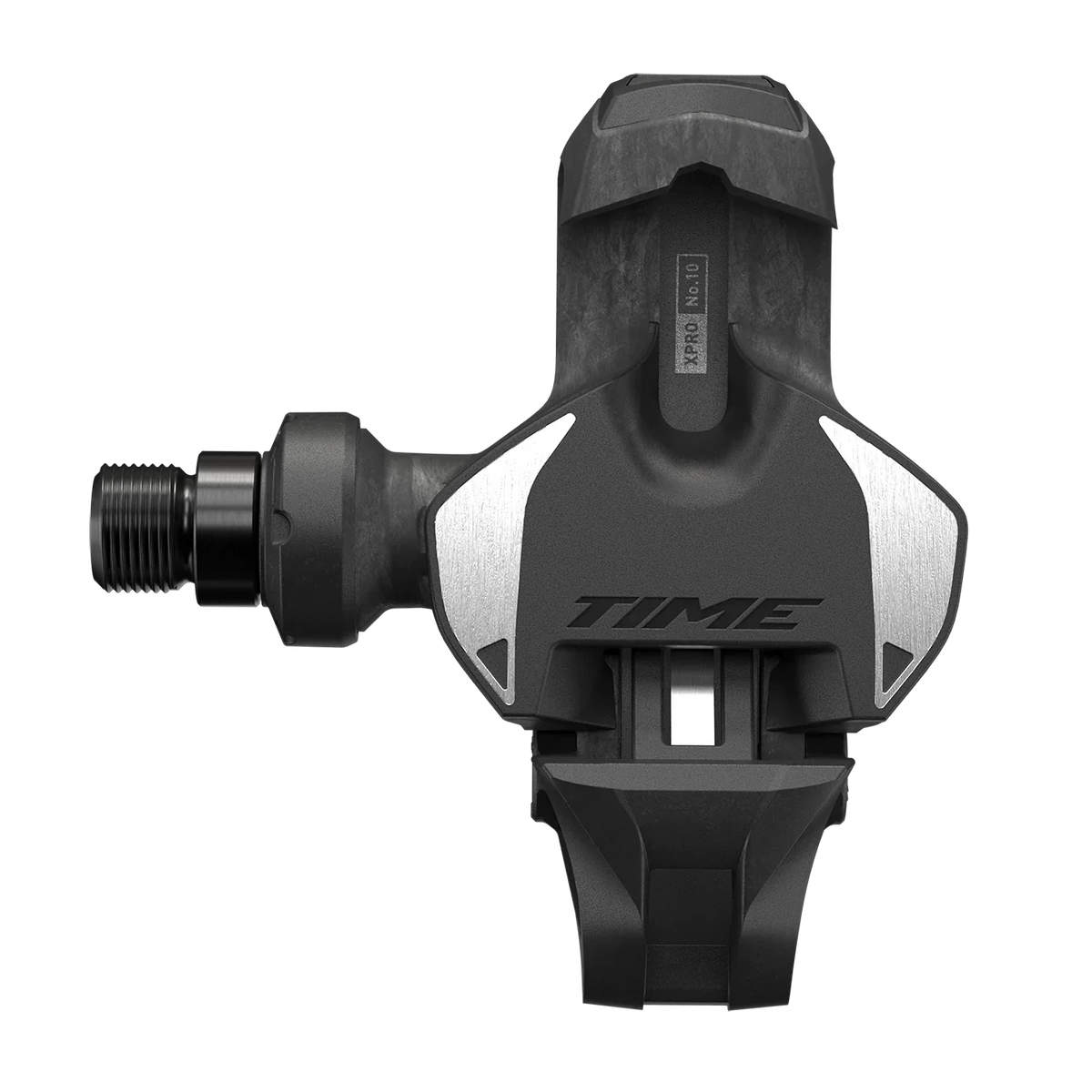

The XPRO 10 is TIME’s top blend of performance and value in a light weight and ergonomic race-ready pedal. The pedal maximizes power transfer and stability thanks to its large 725mm-squared surface area. The pedal’s bottom fairing helps improve aerodynamics and protect the carbon blade. TIME's patented pre-opened ICLIC system allows for fast and easy cleat engagement. TIME pedals are designed to eliminate pedal-induced discomfort. You can precisely manage tightness of the clamping mechanism with three settings of the tension adjustment on the carbon blade. TIME XPRO pedals offer three options for Q-factor to provide riders with more ergonomic options. The pedal’s low stack height provides good clearance. The XPRO 10 uses a hollow stainless-steel axle, making it strong but light.
FEATURES
- High performance, light, ergonomic at the right price.
- Fast and easy cleat engagement.
- Three tensions settings of carbon blade.
- Low stack height for good clearance.
- Cleats included with all pedal purchases.
SPECIFICATIONS
| Bearings | Steel |
|---|---|
| Body component | Carbon-filled |
| Cleats | ICLIC |
| Pedal stack height | 14.7mm |
| Angular freedom | 5° to -5° with free cleats, 0° with fixed cleats |
| Contact surface area | 725 mm2 |
| Distance pedal spindle / crank arm | Narrow 51mm, Regular 53mm, Wide 57mm |
| Lateral freedom | 1.25 mm or -1.25 mm |
| Release angle | 16° with free cleats |
| Tension | 3 different settings of carbon blade |
| Threading | 9/16 - 20 inch |
| Platform Size | n/a |
| Color (Pedal) | Carbon Black |
| Accessories | ICLIC free foot cleats |
| Intended use | Road |
| Power Measurement | Not Compatible |
| Weight (per pedal) | 113g |
